Lock washer A4 14.8 | 2.6 | M8

morepic-1

morepic-2

Lock washer A4

Item no. 3405089 | EAN 4012195909712

Item no. / Types

Dimension d min.

Dimension h

Thread

Product description

Product description

Lock washer according to DIN 128, shape A.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,0066 kg CO₂e / 1 Piece
Dimension	M8
Dimension d	8,3 mm
Dimension d max.	14,8 mm
Dimension d min.	14,8 mm
Dimension h	2,6 mm
External diameter	14,8 mm

Height	2,6 mm
Lock washer version	Ribbed
Material	Stainless steel
Surface	Bright, treated
Thickness	2,6 mm
Thread	M8

All types

All types

Types	Dimension d min.	Dimension h	Thread	Item no.
LWS M6 A4	11.8 mm	2.1 mm	M6	3405062
LWS M8 A4	14.8 mm	2.6 mm	M8	3405089
LWS M10 A4	18.1 mm	3 mm	M10	3405111
LWS M12 A4	21.1 mm	3.5 mm	M12	3405127

Downloads

Data sheet LWS M8 A4 / 3405089 , 0.15MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity LWS M8 A4 / 3405089 , 0.05MB , pdf

Download

REACH Declaration of conformity LWS M8 A4 / 3405089 , 0.12MB , pdf

Download

RoHS Declaration of conformity LWS M8 A4 / 3405089 , 0.13MB , pdf

Download

Product graphic LWS M8 A4 / 3405089, 43.89 kB, jpg

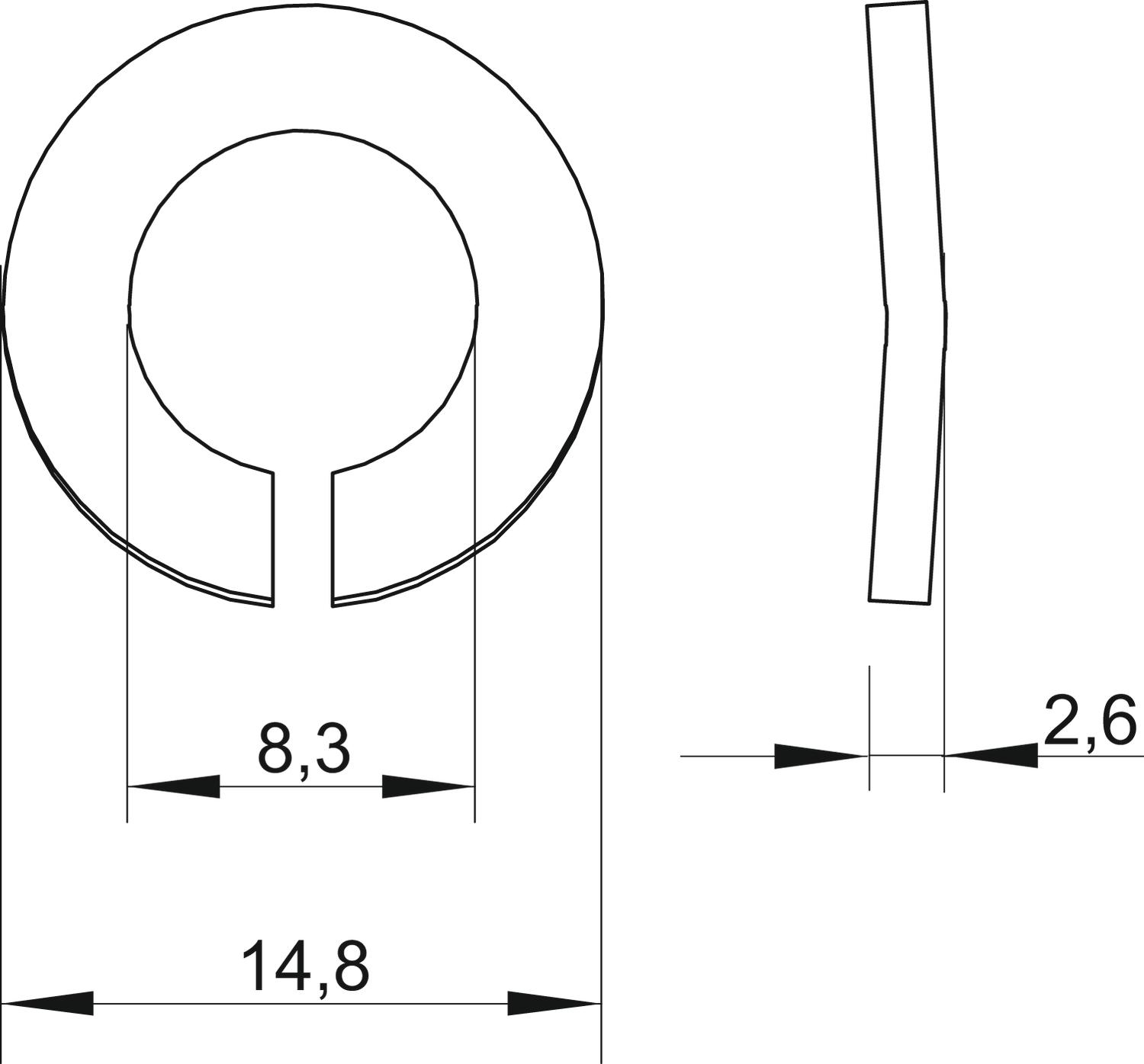

Scale drawing LWS M8 A4 / 3405089, 67.11 kB, jpg

LWS M8 A4 / 3405089
