Lock washer A4 11.8 | 2.1 | M6
morepic-1 morepic-2

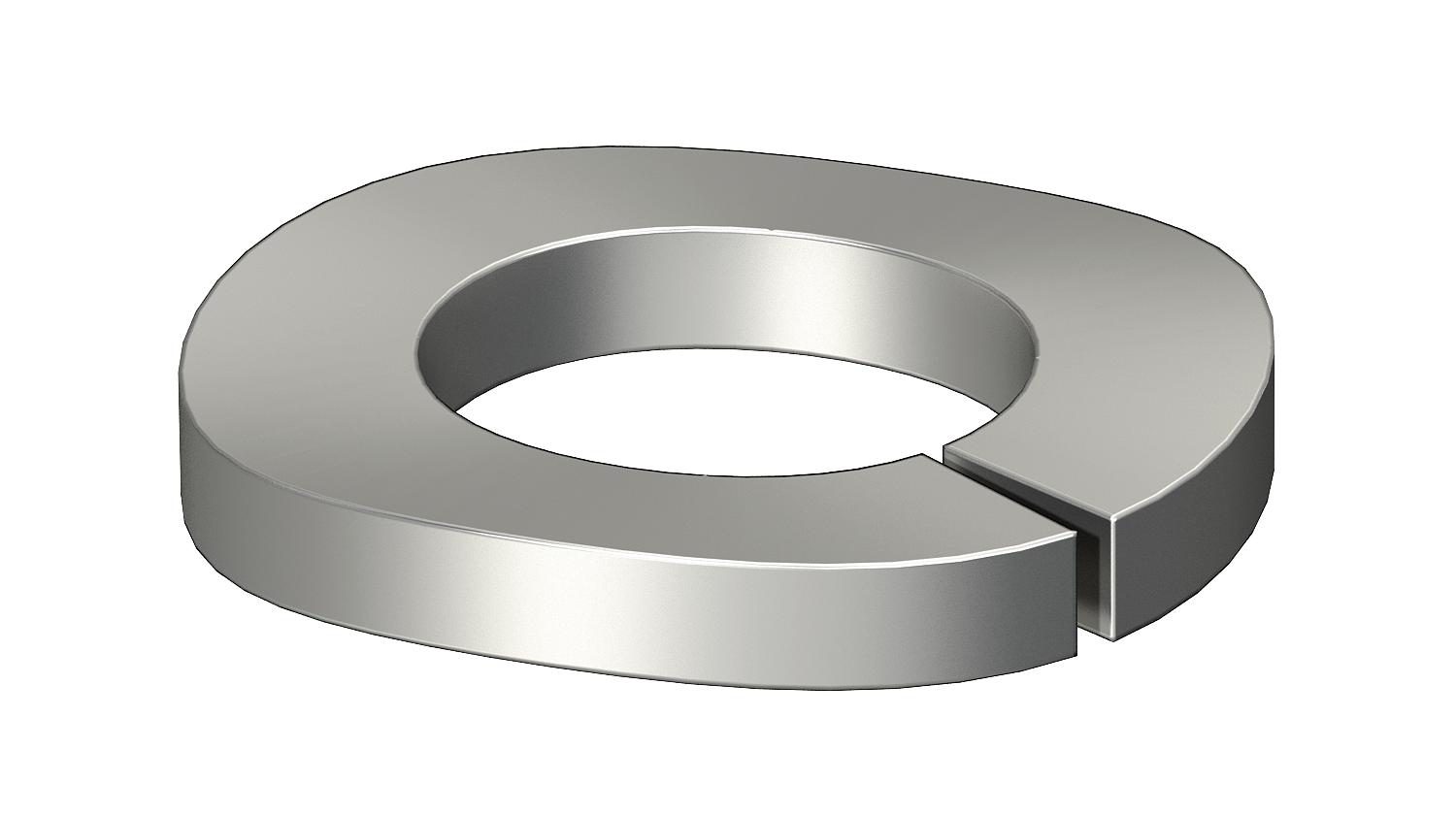

Lock washer A4

Item no. 3405062 | EAN 4012195909651

Product description
Product description
Lock washer according to DIN 128, shape A.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0034 kg CO₂e / 1 Piece

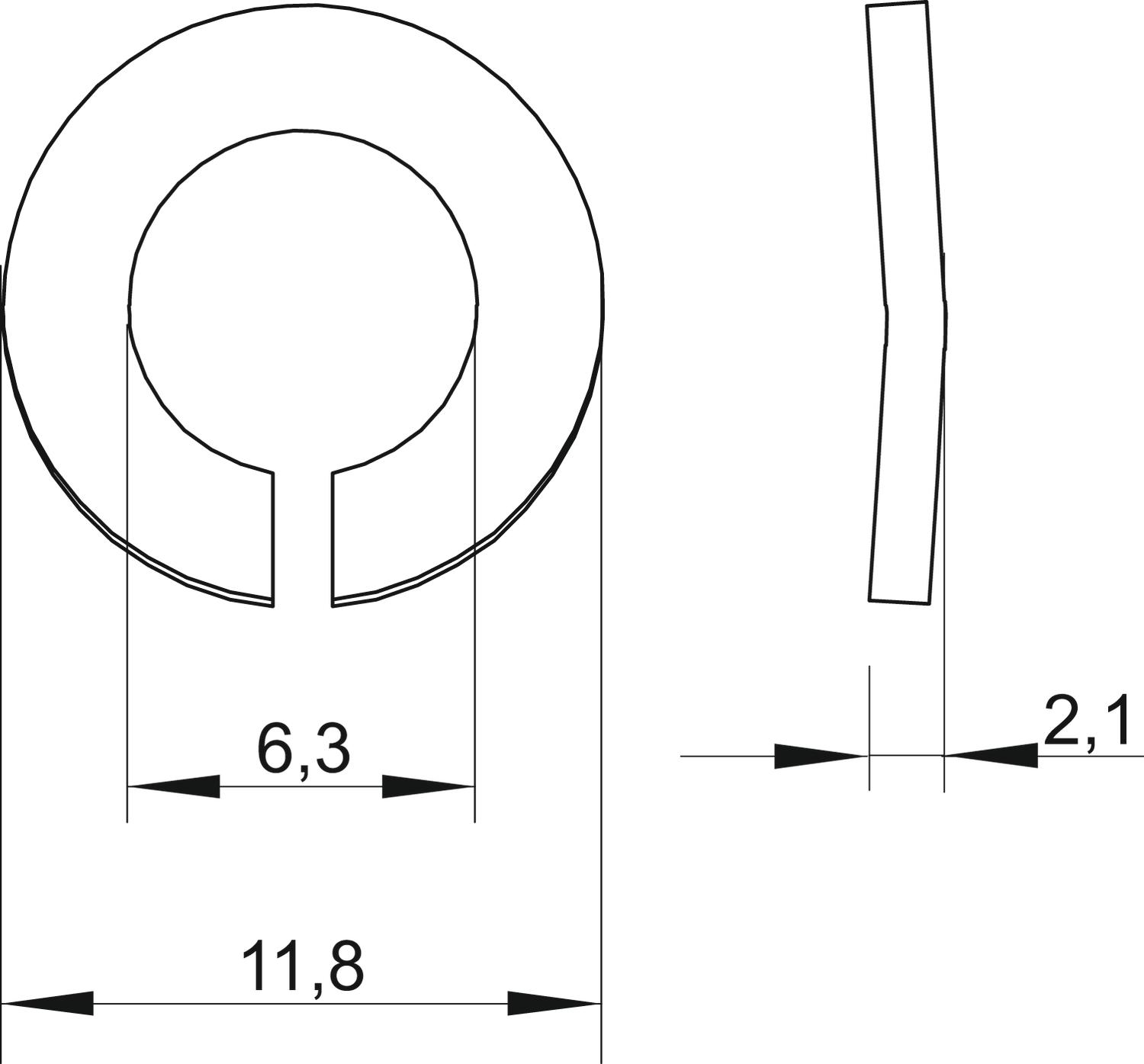

Dimension M6
Dimension d 6,3 mm
Dimension d max. 11,8 mm
Dimension d min. 11,8 mm
Dimension h 2,1 mm
External diameter 11,8 mm
Height 2,1 mm
Lock washer version Ribbed
Material Stainless steel
Surface Bright, treated
Thickness 2,1 mm
Thread M6
All types

All types

Types Dimension d min. Dimension h Thread Item no.
LWS M6 A4 11.8 mm 2.1 mm M6 3405062
LWS M8 A4 14.8 mm 2.6 mm M8 3405089
LWS M10 A4 18.1 mm 3 mm M10 3405111
LWS M12 A4 21.1 mm 3.5 mm M12 3405127
