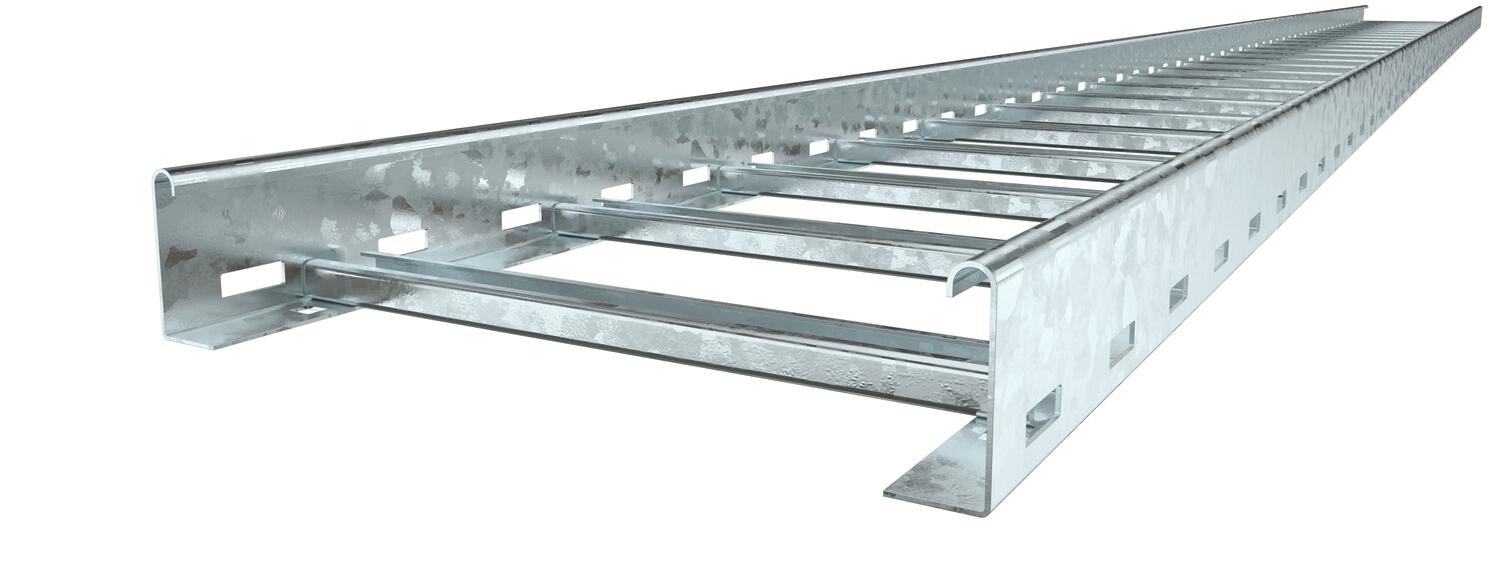

LG 60 cable ladder, 6 m VSF 6000 | 300 | 1.5 | yes | Steel | Hot-dip galvanised

LG 60 cable ladder, 6 m VSF

Item no. 6207527 | EAN 4012195299707

Item no. / Types

Length	6000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	yes

Material	Steel

Surface

Product description

Product description

Cable ladder for the horizontal routing of cables. Can be used as a standard support structure for the maintenance of electrical functionality according to DIN 4102 Part 12. Maintenance of electrical function classes E30 to E90. With riveted C profile rung, open in an upward direction.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	8,525 kg CO₂e / 1 Meter
Colour	zinc

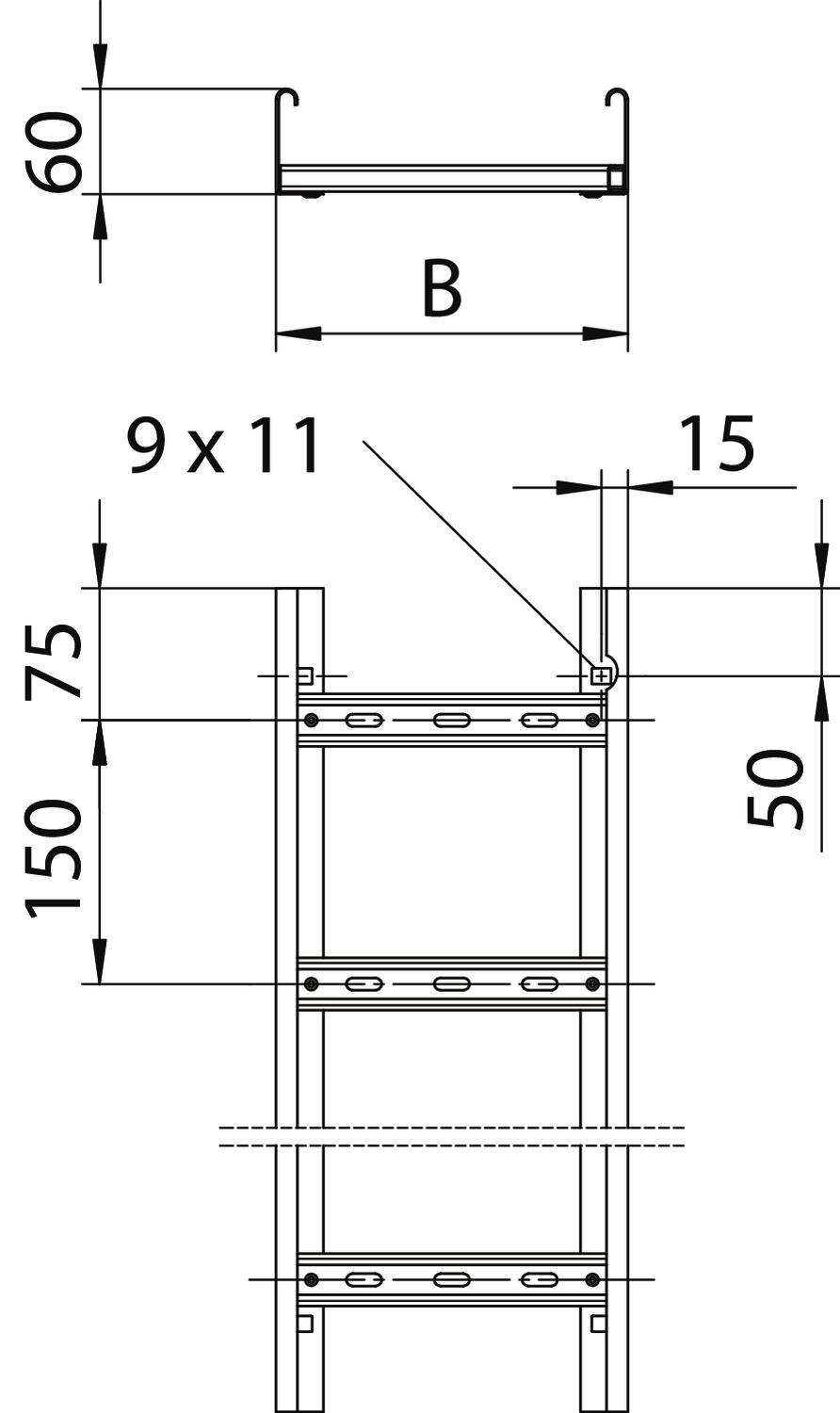

Dimension	60x300x6000
Dimension B	300 mm
Fastening of rung	Blind riveted
Fire protection	Maintenance of electrical function of standard support structure
Height	60 mm
Length	6000 mm
Maintain electrical functions	yes
Material	Steel
Rail thickness	1,5 mm

Rung distance	150 mm
Rung slot dimension	17,00
Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Profile (open)
Surface	Hot-dip galvanised
Usable cross-section	14800 mm²
Usable cross-section	148 cm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	300 mm

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.
LG 620 VSF 6 FS	6000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6207501
LG 630 VSF 6 FS	6000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6207505
LG 640 VSF 6 FS	6000 mm	400 mm	1.5 mm	yes	Steel	Strip galvanized	6207509
LG 620 VSF 6 FT	6000 mm	200 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207523
LG 630 VSF 6 FT	6000 mm	300 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207527
LG 640 VSF 6 FT	6000 mm	400 mm	1.5 mm	yes	Steel	Hot-dip galvanised	6207531
