Large washer, A4 30 | 10.5 | 1.5 | M10
morepic-1 morepic-2

Large washer, A4

Item no. 3403163 | EAN 4012195944454

Product description
Product description
Washer of particularly large outer diameter.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,0285 kg CO₂e / 1 Piece

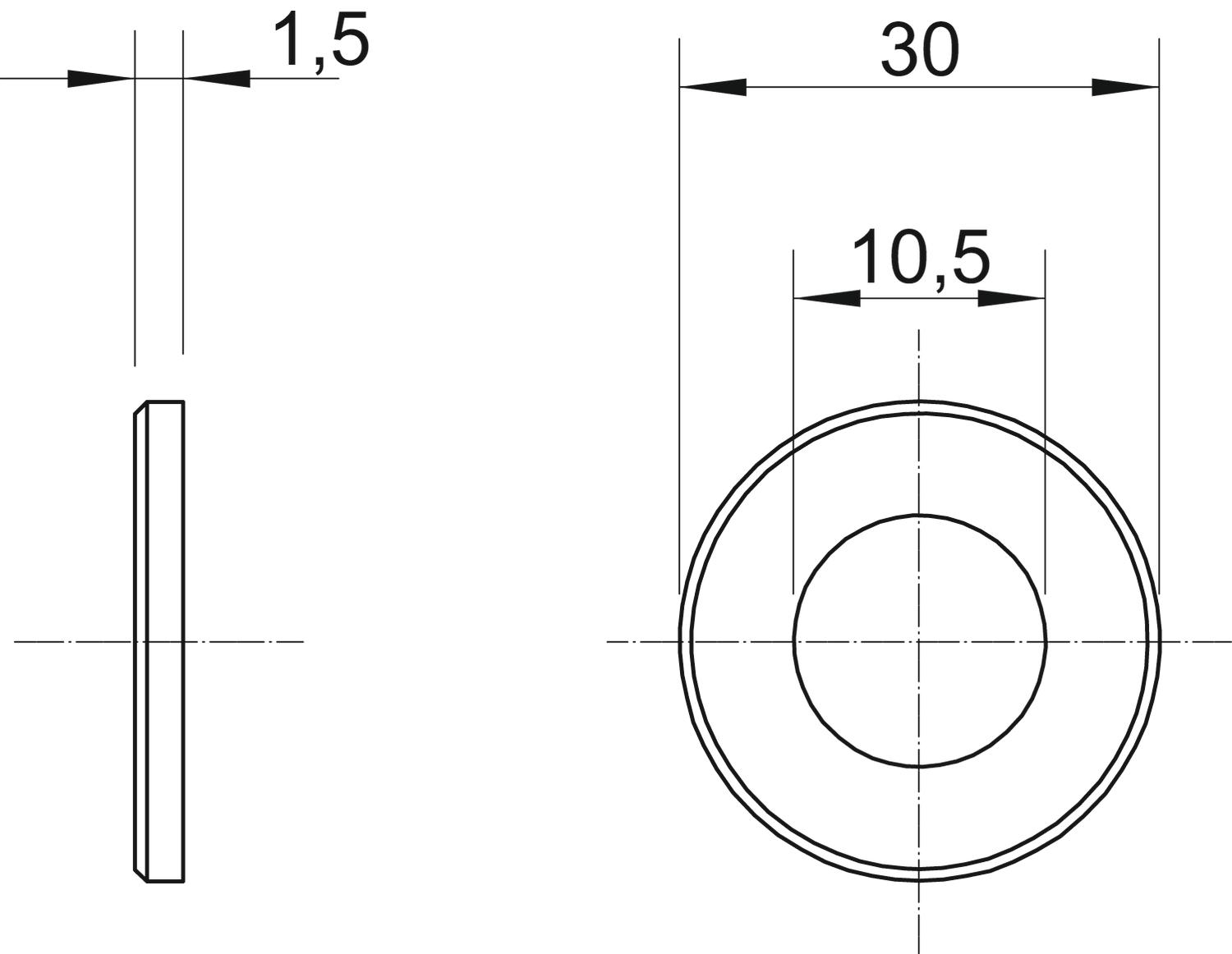

Dimension M10,Ø30mm
Dimension d 10,5 mm
Dimension d max. 30 mm
Dimension d min. 30 mm
Dimension h 1,5 mm
Halogen-free yes
Material Stainless steel
Material thickness 1,5 mm
Surface Bright, treated
Thread M10
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no.
WS M8 D20 A4 20 mm 8.4 mm 1.5 mm M8 3403127
WS M8 D25 A4 25 mm 8.4 mm 1.2 mm M8 3403137
WS M8 D40 A4 40 mm 8.4 mm 1.5 mm M8 3403147
WS M10 D30 A4 30 mm 10.5 mm 1.5 mm M10 3403163
WS M10 D40 A4 40 mm 10.5 mm 1.5 mm M10 3403177
