Large washer, A4
Item no. 3403127 | EAN 4012195944409
- Product description
-

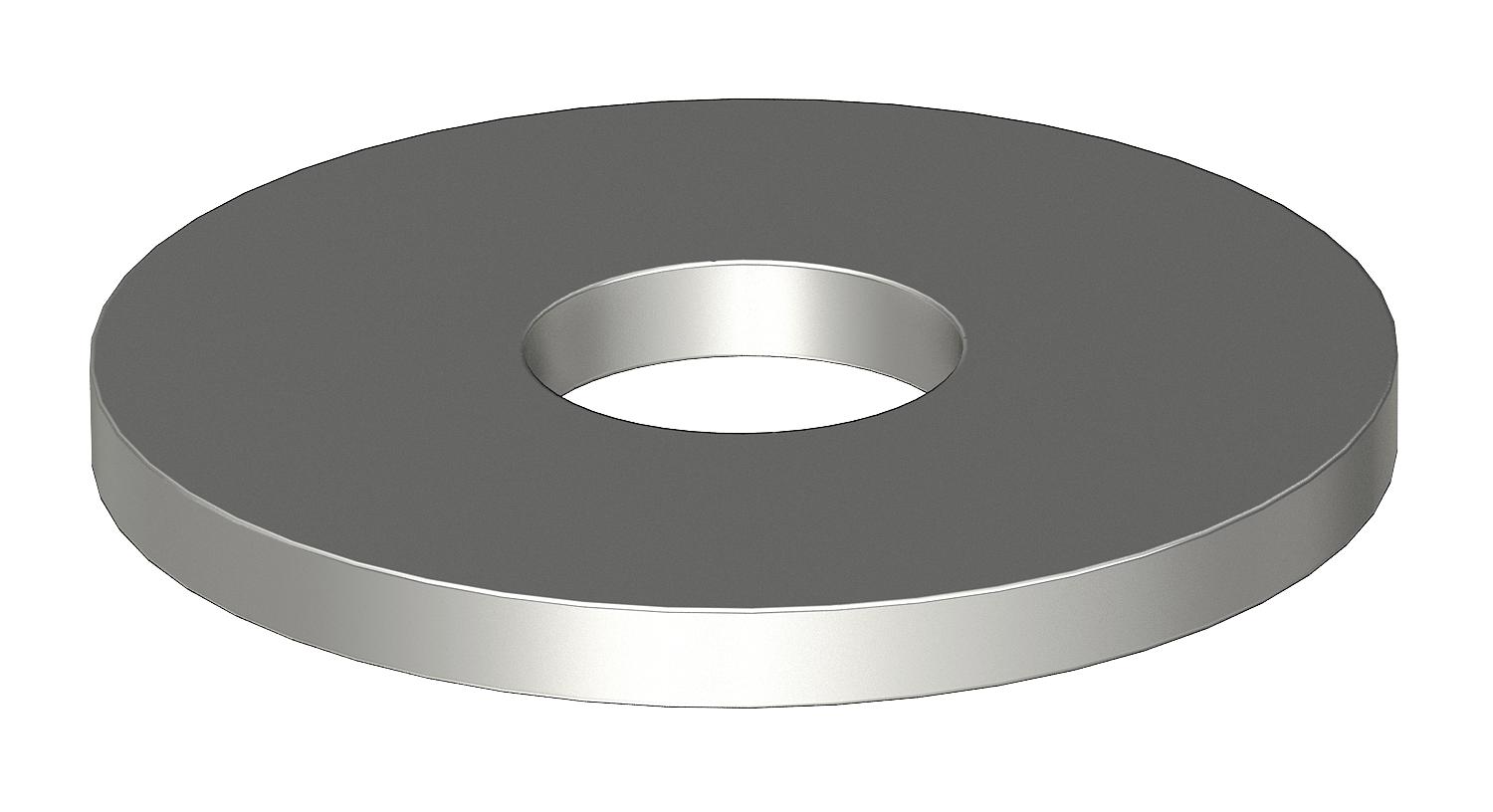

Product descriptionWasher of particularly large outer diameter. In the case of connections on the MS 41 mounting rail, we recommend the external diameter of 40 mm.
-
- Technical data
-
Technical data

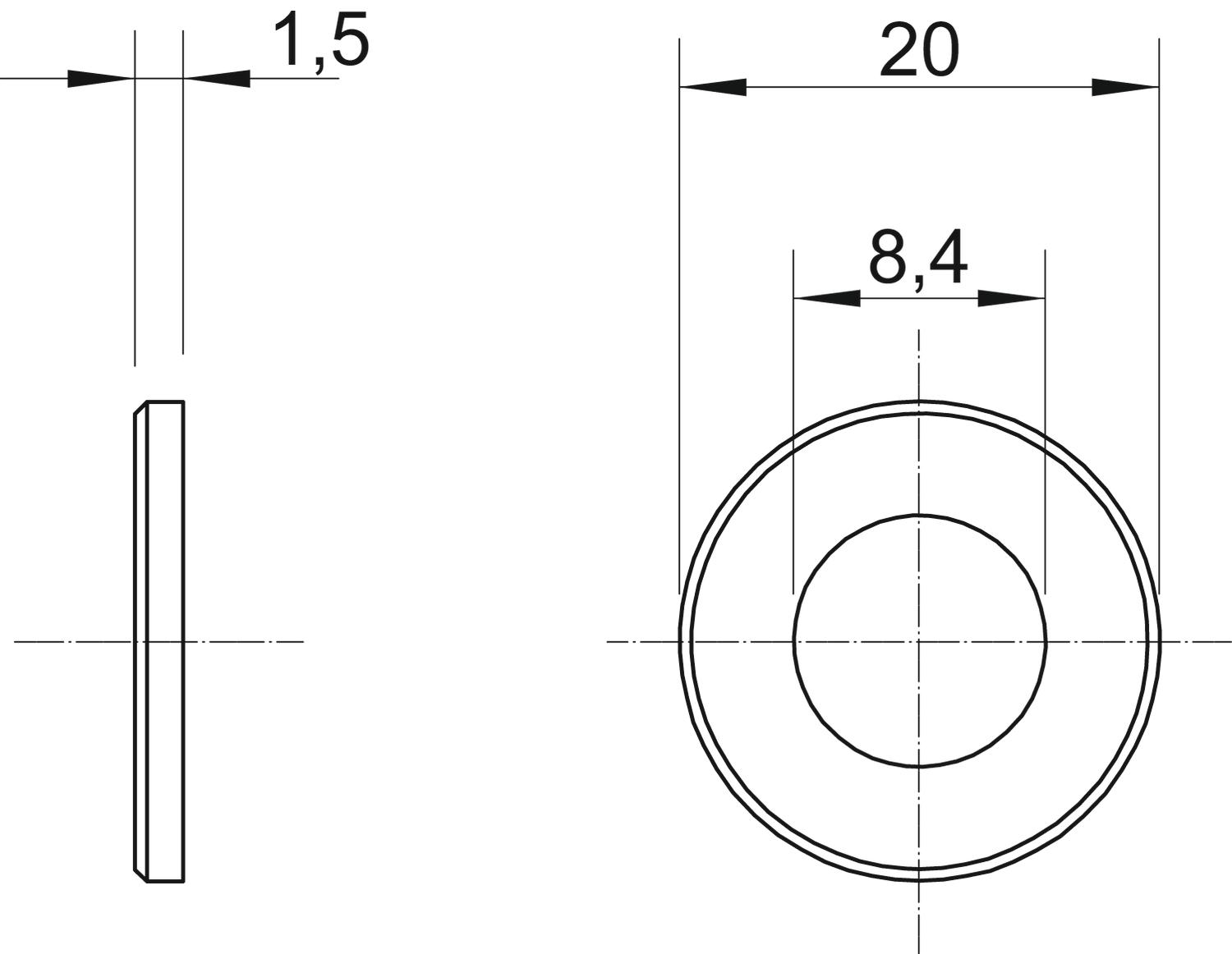

CO2 Footprint (GWP) Cradle-to-Gate 0,0117 kg CO₂e / 1 Piece Dimension M8,Ø20mm Dimension d 8,4 mm Dimension d max. 20 mm Dimension d min. 20 mm Dimension h 1,5 mm Halogen-free yes Material Stainless steel Material thickness 1,5 mm Surface Bright, treated Thread M8 - All types
- Downloads
-
Data sheet WS M8 D20 A4 / 3403127 , 0.15MB , pdfCatalogue Fastening materials , 19.78MB , pdfREACH Declaration of conformity WS M8 D20 A4 / 3403127 , 0.12MB , pdfRoHS Declaration of conformity WS M8 D20 A4 / 3403127 , 0.13MB , pdf
