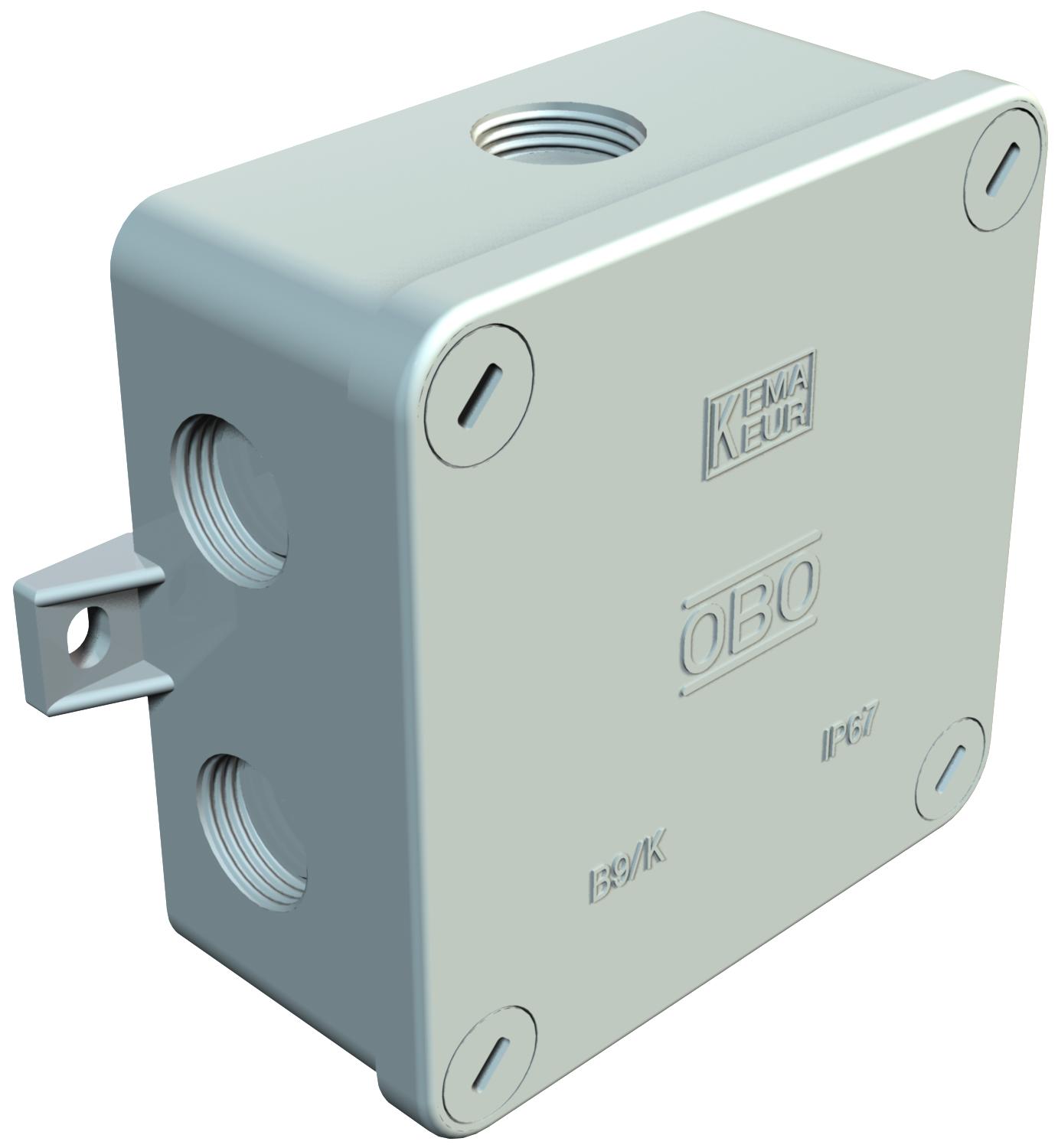

Junction box, B 9 K empty, with thread
Item no. 2001934 | EAN 4012195433699
- Product description
-
Product descriptionB 9 K ...: Protection IP67 Empty box to be used with single terminals 4 cover screws of plastic, so fully corrosion-proof 2 fixing holes for screws up to 5 mm diameter 7 breakout entries with Pg 16 thread, with 3 cable glands of polyamide for cable diameters of 10–14 mm type 106/16 B9K The cable glands have a specially shaped thread which automatically breaks out the entry when the gland is screwed in.
Clear internal dimensions: 84 x 84 x 34
-
- Technical data
-

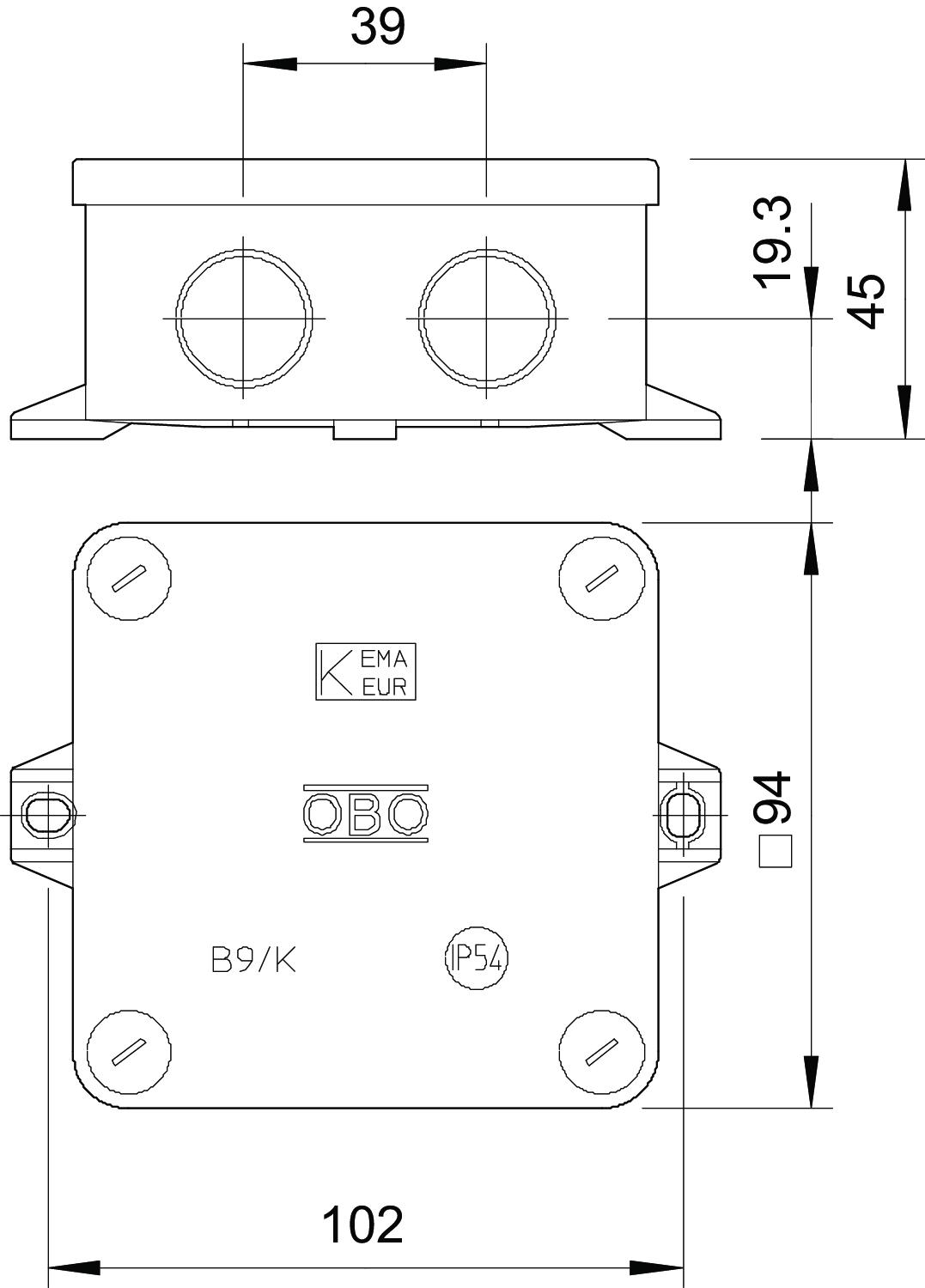

Dimensions
Clear internal dimensions 84 x 84 x 34 mm CO2 Footprint (GWP) Cradle-to-Gate 0,5511 kg CO₂e / 1 Piece Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Screwed Dimension 94x94x45 Entries 7 break-out entries with thread Pg 16
Entry from rear no Equipment Without Expandable no Explosion-tested version no Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 45 mm Impact-resistant no Length 94 mm Maintain electrical functions Without Material Duroplast, Aminoplast Measured insulation voltage Vi 400 V No. of entries 7 Nominal cross-section, min. 2,5 mm² Nominal voltage 400 V Protection rating IP67 Sealable yes Shape Square Transparent lid no Type of entry Cable Type of entry Gland Type of housing penetration Thread and pre-marking Weatherproof no Width 94 mm with lid yes With screening no - All types
