Junction box, B 10 M, with thread 80x80x39 | 7 | IP54 | Light grey; RAL 7035

Junction box, B 10 M, with thread

Item no. 2002140 | EAN 4012195107712

Item no. / Types

Clear internal dimensions

No. of entries

Protection rating	IP54

Colour	Light grey; RAL 7035

Product description

Product description

Protection rating IP54, rated voltage 660 V, nominal cross-section 2.5 ÷ 4, in combination with the earthing terminal 700/6 M, the box has the nominal cross-section 4 mm², two fastening holes for screws of up to 5 mm Ø on the outer side of the box. Four cover screws, 7 break-out entries with thread M20 x 1.5, primarily for cable glands with short connecting thread.
Clear internal dimensions: 80x80x39 mm.
B 10/4 M VDE: with five-pole earthing terminal 700/4 BM made of melamine for max. four 2.5 mm² cables per terminal

Technical data

Dimensions

Clear internal dimensions	80x80x39 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,5052 kg CO₂e / 1 Piece
Colour	Light grey; RAL 7035
Cover	Not transparent
Cover fastening	Screwed

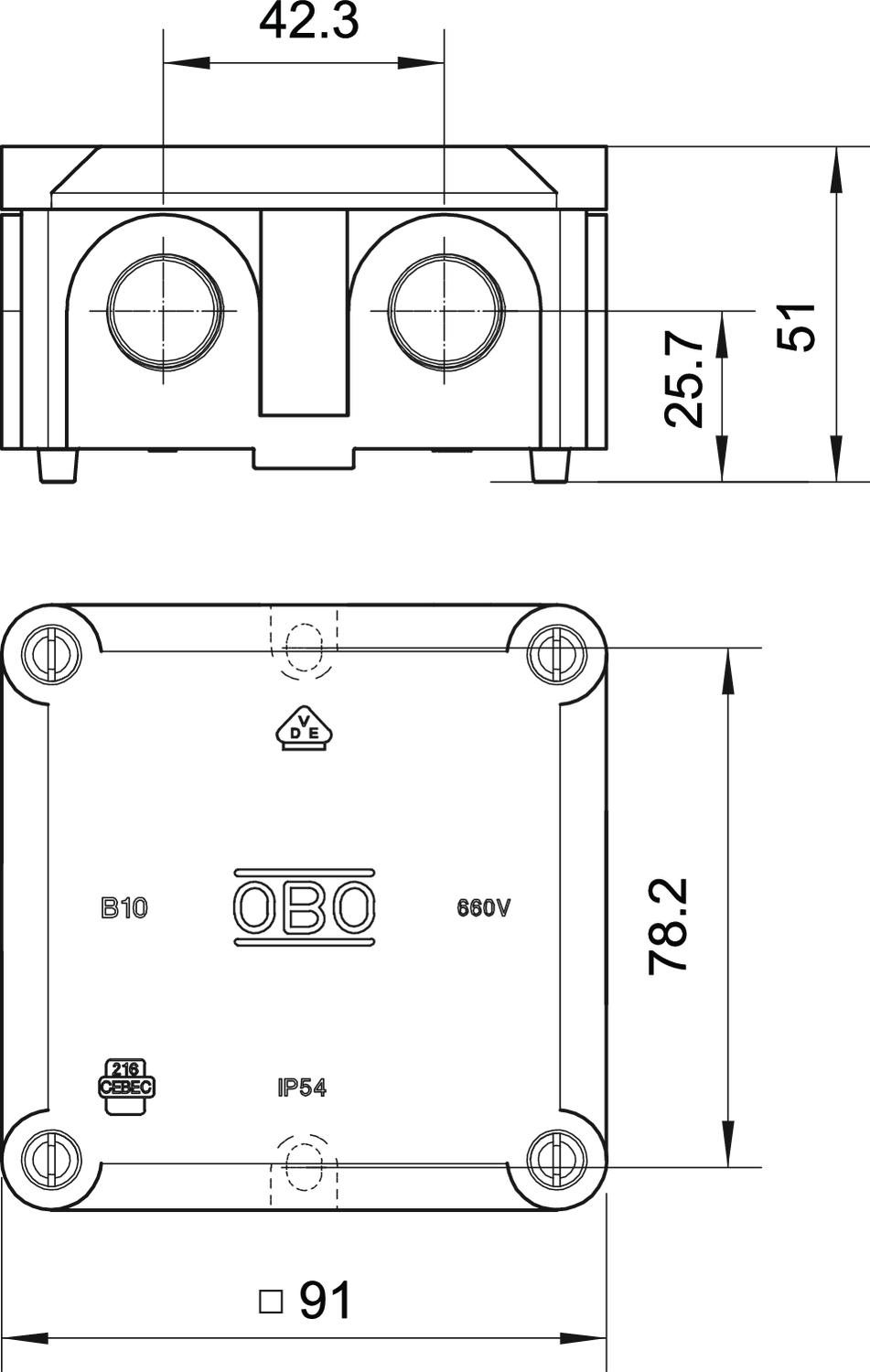

Dimension	91x91x51
Entries	7 break-out entries with thread M20 x 1.5
Entry from rear	no
Expandable	no
Explosion-tested version	no
Flame-resistant	Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
for pipe diameter	20 mm
Halogen-free	yes
Height	51 mm
Impact-resistant	no
Junction box cover version	Blanking lid
Length	91 mm

Maintain electrical functions	Without
Material	Duroplast, Aminoplast
Measured insulation voltage Vi	660 V
No. of entries	7
Nominal cross-section, max.	4 mm²
Nominal cross-section, min.	2,5 mm²
Nominal voltage	660 V
Number of terminals	5
Protection rating	IP54
Sealable	yes
Shape	Square
Transparent lid	no
Type of entry	Cable
Type of entry	Gland
Type of housing penetration	Thread and pre-marking
Weatherproof	no
Width	91 mm
with lid	yes
With screening	no

All types

All types

Types	Clear internal dimensions	No. of entries	Protection rating	Colour	Item no.
B 10 M 5	80x80x39 mm	7	IP54	Light grey; RAL 7035	2002140
B 11 M 5	125x100x44 mm	10	IP54	Light grey; RAL 7035	2002329
B 12 M 5	178x126x57 mm	10	IP54	Light grey; RAL 7035	2002507
