isFang-3B threaded rod 500

morepic-1

morepic-2

isFang-3B threaded rod

Item no. 5408905 | EAN 4012196219469

Item no. / Types

Dimension L

Product description

Product description

Fastening unit for isFang tripod stand on 4 FangFix blocks.

Technical data

Technical data

Diameter	16 mm
Dimension	500mm
Dimension L	500 mm

Length	500 mm
Material	Stainless steel

All types

All types

Types	Dimension L	Item no.
isFang 3B-G4	500 mm	5408905
isFang 3B-G1	270 mm	5408971
isFang 3B-G2	340 mm	5408972
isFang 3B-G3	430 mm	5408973

Downloads

Data sheet isFang 3B-G4 / 5408905 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Mounting instructions Extended mounting instructions, long isCon® , 6.11MB , pdf

Mounting instructions Mounting instructions, isFang tripod , 0.18MB , pdf

Download

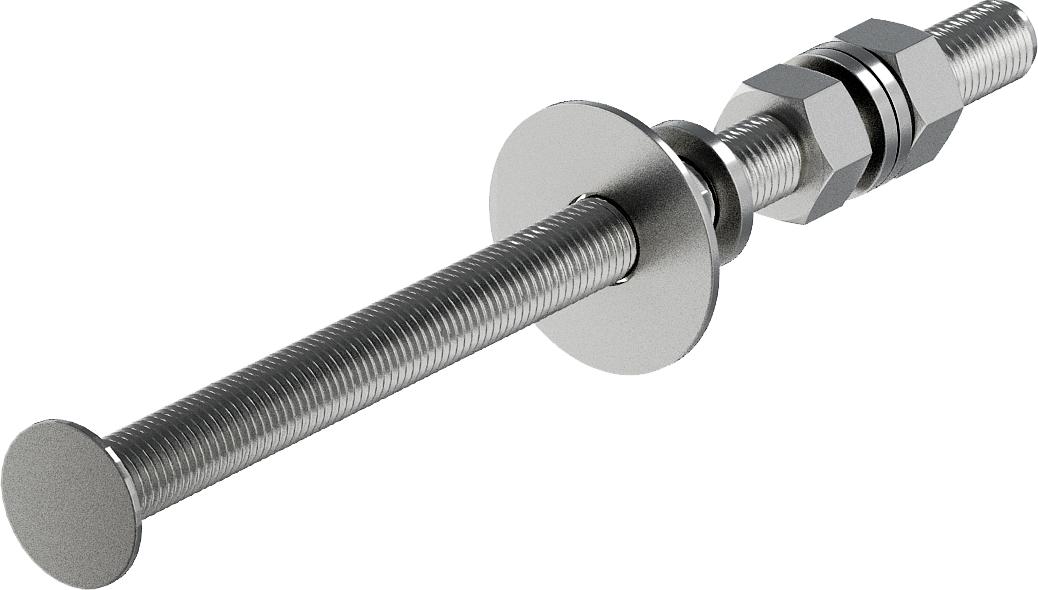

Product graphic isFang 3B-G4 / 5408905, 47.80 kB, jpg

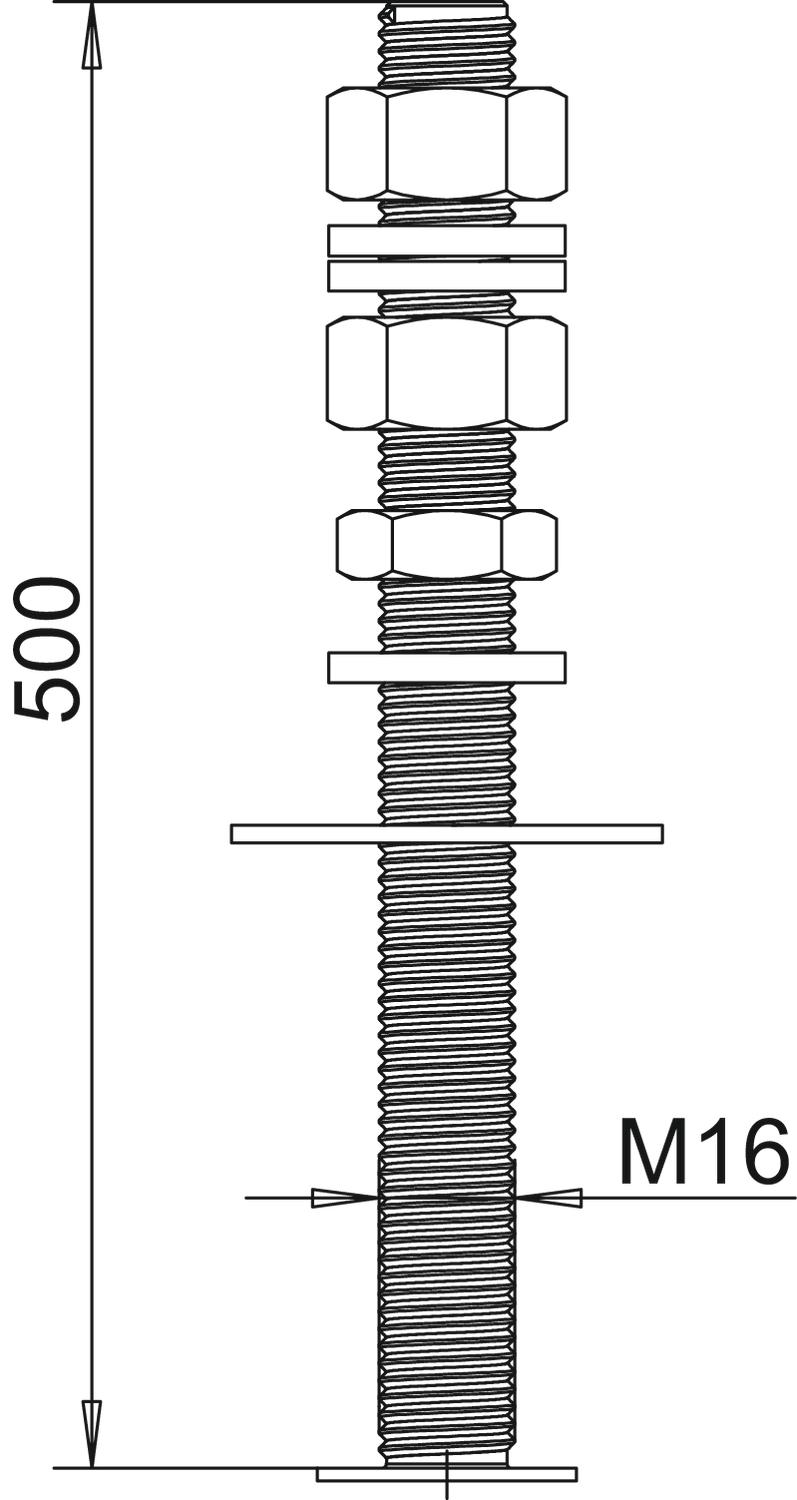

Scale drawing isFang 3B-G4 / 5408905, 83.53 kB, jpg

No invitation to tender text is available for this product.
