isFang-3B threaded rod 430

morepic-1

morepic-2

isFang-3B threaded rod

Item no. 5408973 | EAN 4012195674986

Item no. / Types

Dimension L

Product description

Product description

Fastening unit for isFang tripod stand on 3 FangFix blocks.

Technical data

Technical data

Diameter	16 mm
Dimension	430mm
Dimension L	430 mm

Length	430 mm
Material	Stainless steel

All types

All types

Types	Dimension L	Item no.
isFang 3B-G4	500 mm	5408905
isFang 3B-G1	270 mm	5408971
isFang 3B-G2	340 mm	5408972
isFang 3B-G3	430 mm	5408973

Downloads

Data sheet isFang 3B-G3 / 5408973 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

REACH Declaration of conformity isFang 3B-G3 / 5408973 , 0.12MB , pdf

Download

RoHS Declaration of conformity isFang 3B-G3 / 5408973 , 0.12MB , pdf

Download

Mounting instructions Extended mounting instructions, long isCon® , 6.11MB , pdf

Mounting instructions Mounting instructions, isFang tripod , 0.18MB , pdf

Download

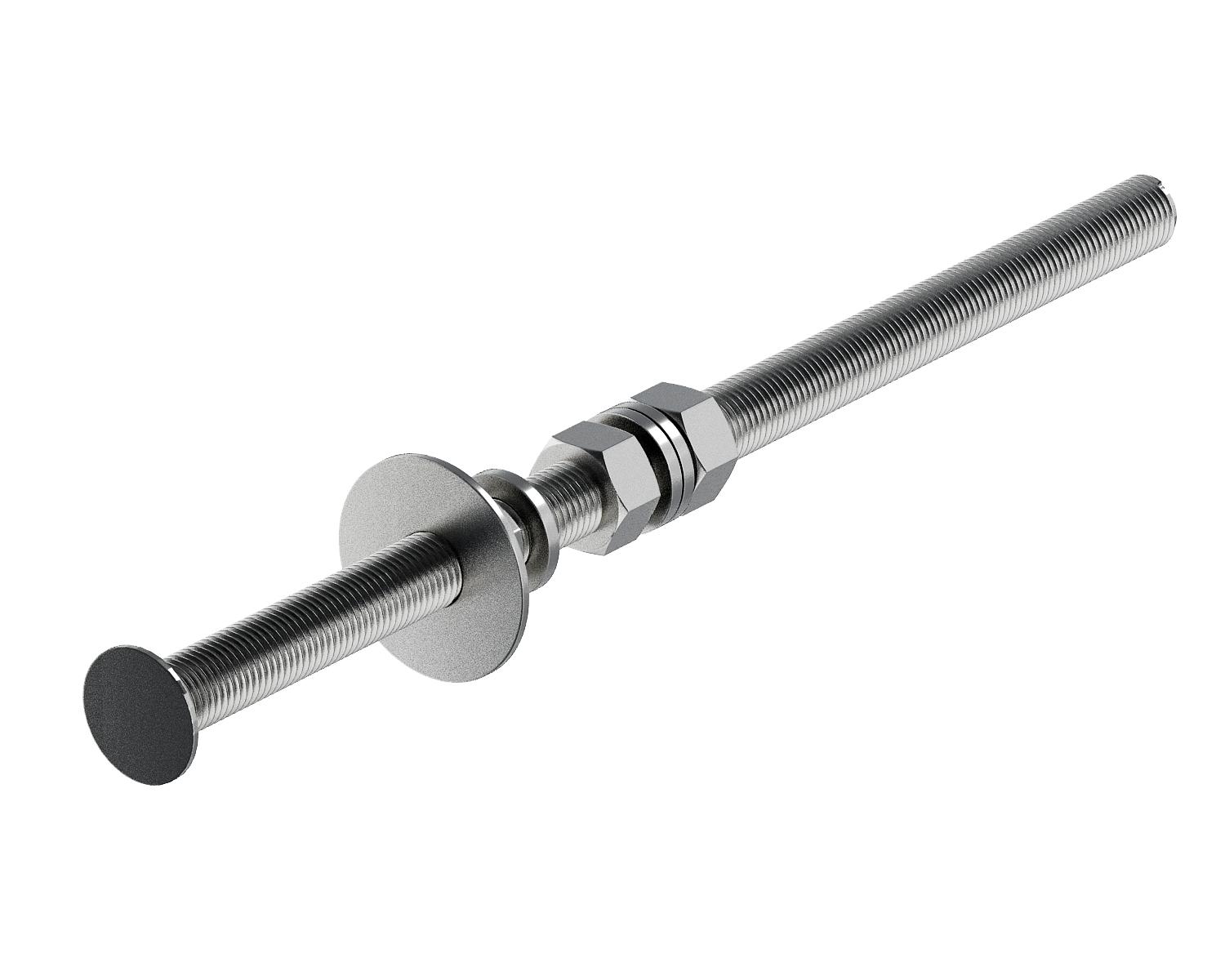

Product graphic isFang 3B-G3 / 5408973, 76.84 kB, jpg

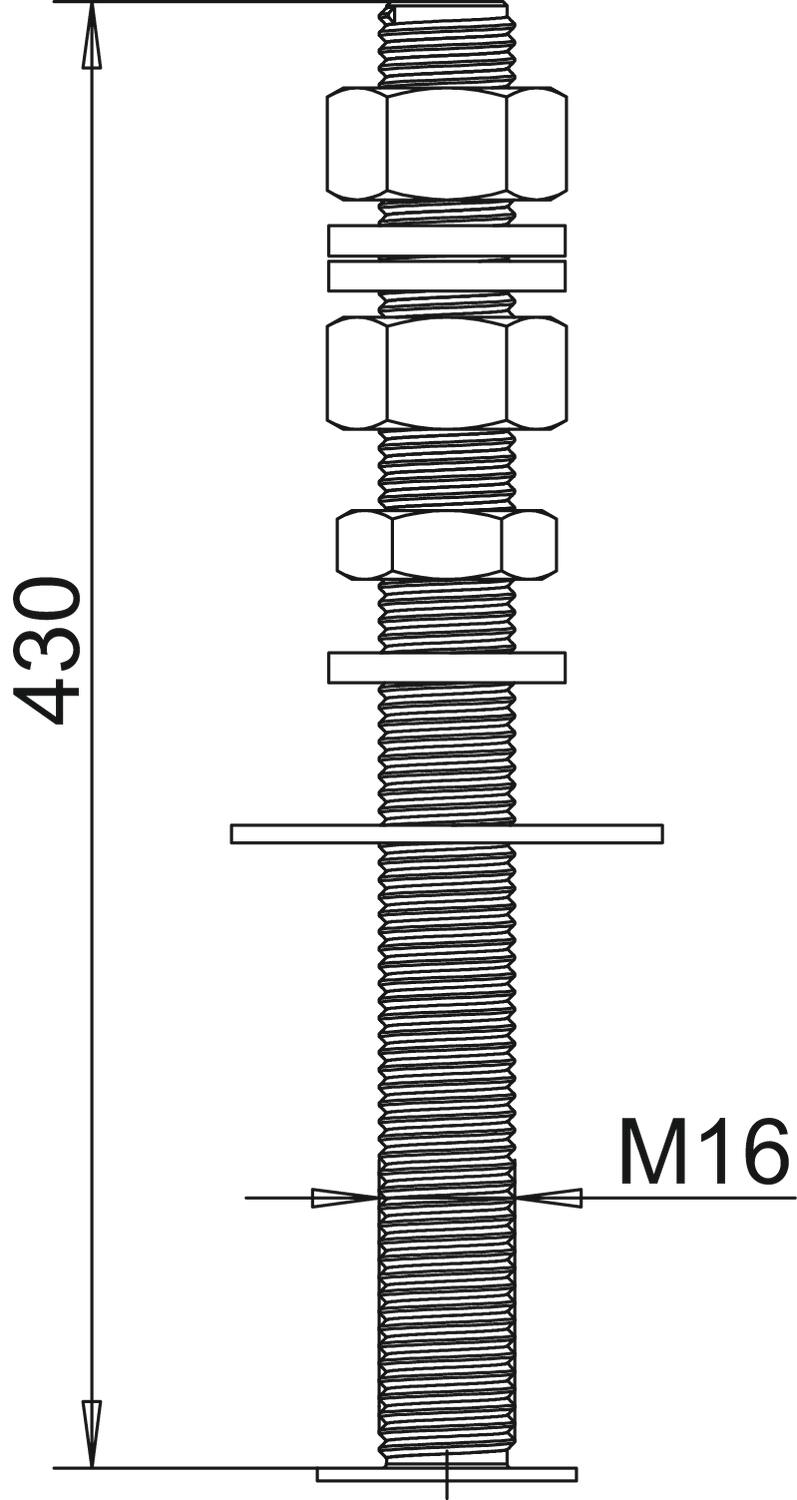

Scale drawing isFang 3B-G3 / 5408973, 83.80 kB, jpg

isFang 3B-G3 / 5408973

5408973_KSTP1.stp, 244.33 kB
