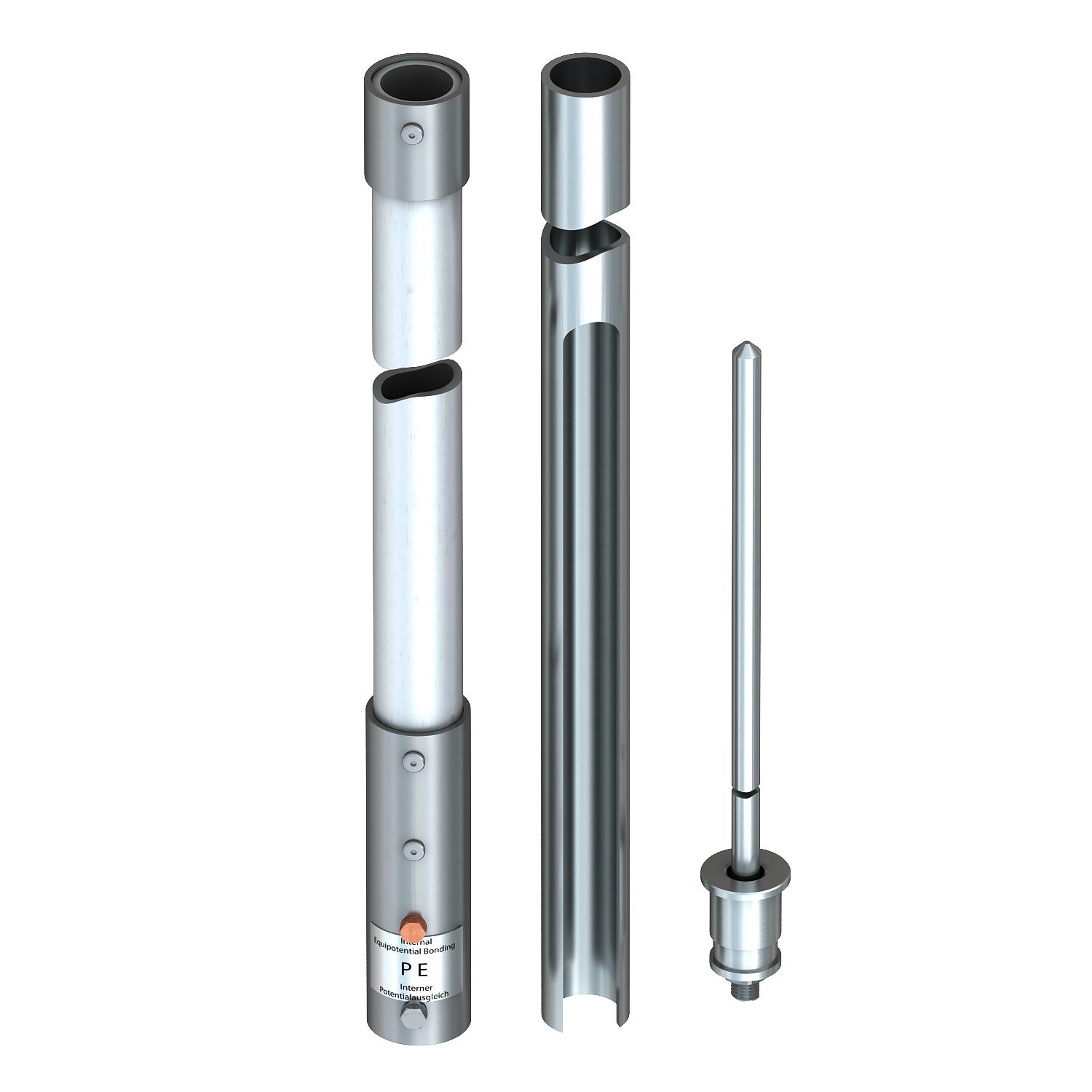

Insulated air-termination rod for inner-routed isCon® conductor with side exit 4000 |

Insulated air-termination rod for inner-routed isCon® conductor with side exit

Item no. 5408874 | EAN 4012196647804

Item no. / Types

Length

Product description

Product description

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)
• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	49,6043 kg CO2e / 1 Piece
Connection	Round conductor

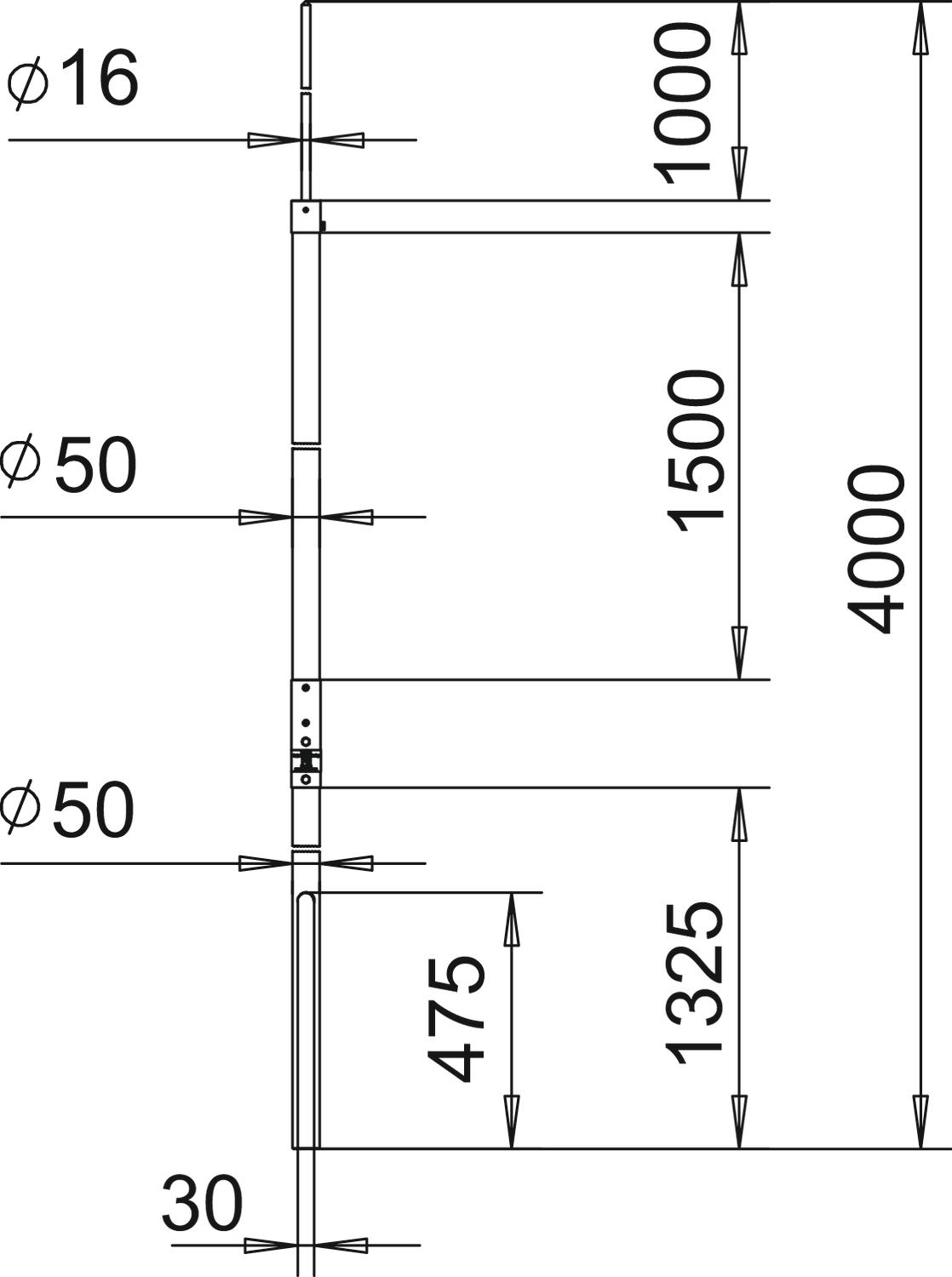

Dimension	4000mm
Dimension A	1325 mm
Dimension B	1000 mm
Dimension d min.	50 mm

Dimension H	1500 mm
Dimension L	4000 mm
High voltage-resistant, insulated version	yes
Length	4000 mm
Material	Fibre-glass-reinforced plastic
Version for	Air-termination rod

All types

All types

Types	Length	Item no.
isFang IN-A L4	4000 mm	5408874
isFang IN-A L6	6000 mm	5408876
isFang IN-A L8	8000 mm	5408878
isFang IN-A L10	10000 mm	5408880

Accessories

System accessories

Products	Types	Item no.
Concrete base for FangFix system, min. 16 kg	F-FIX-S16	5403227

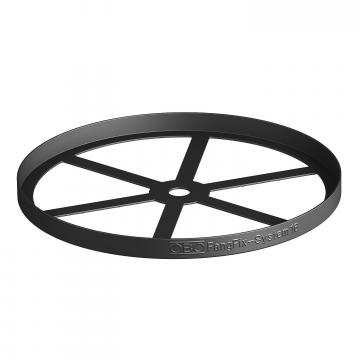

Base for FangFix system 16 kg for mounting the isFang tripod	F-FIX-B16 3B	5403238

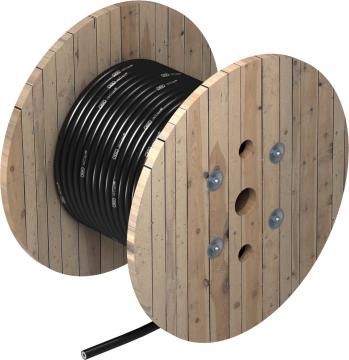

isCon® conductor, Professional black	isCon Pro 75 SW	5408008
isCon® connection element	isCon connect	5408022
Connection element for installation in the insulated interception rod isFang IN	isCon IN connect	5408024
Potential connection for isCon® Professional+ and Premium in the isFang IN insulated air-termination rod	isCon IN PAE	5408031

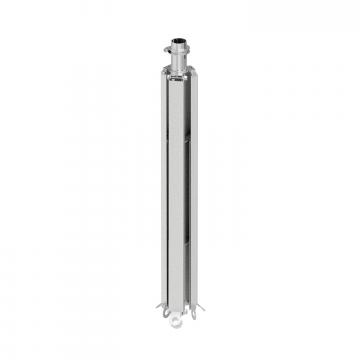

isFang tripod	isFang 3B-100	5408968
