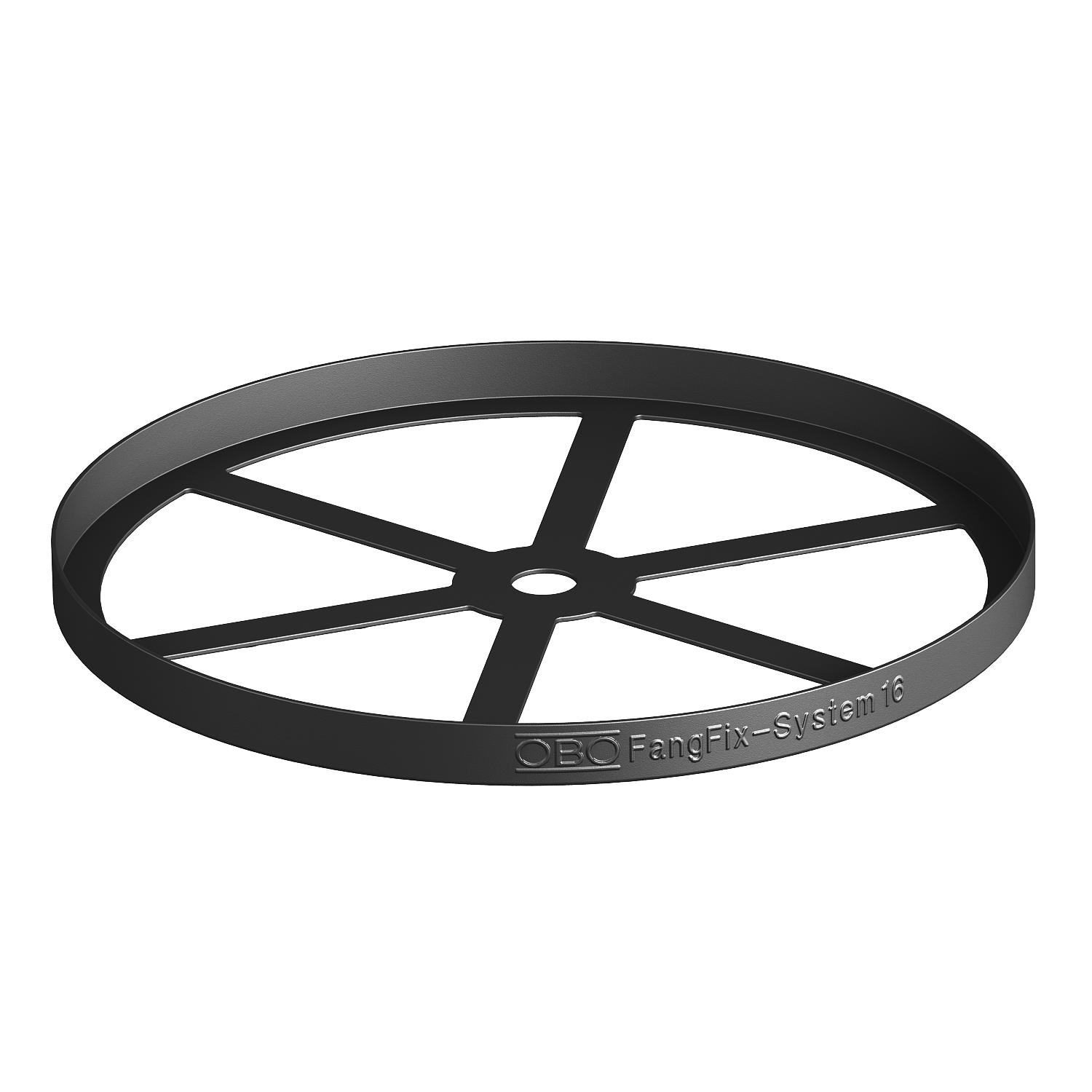

Base for FangFix system 16 kg for mounting the isFang tripod
Item no. 5403238 | EAN 4012195926320
- Product description
-
Product description• Edge protection with through hole
• For mounting isFang-3B threaded rod and FangFix concrete block F-FIX-S16
- Technical data
-
Technical data

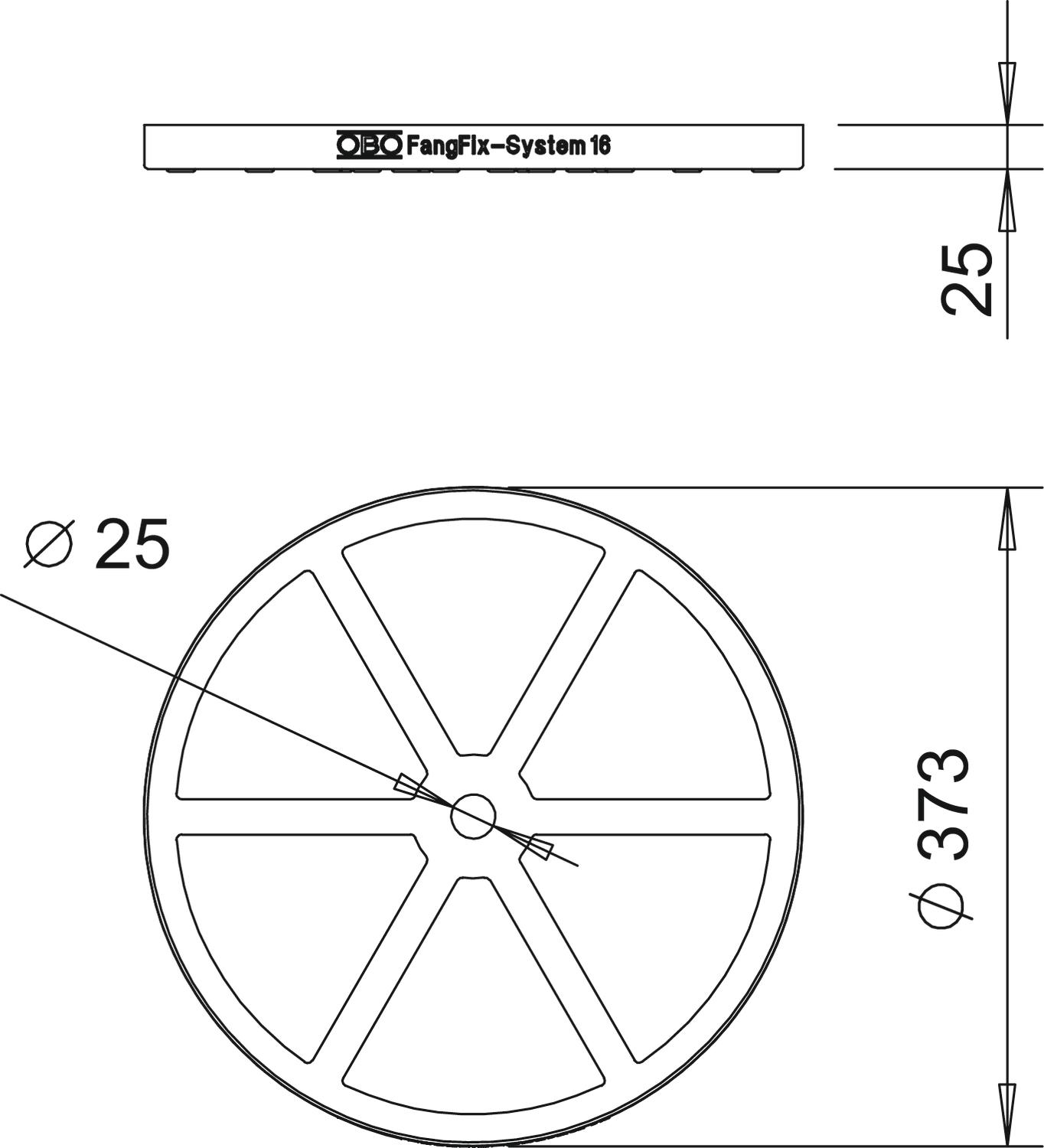

CO2 Footprint (GWP) Cradle-to-Gate 0,6611 kg CO2e / 1 Piece Colour Black Diameter 373 mm Dimension 16kg Dimension D 25 mm Dimension d min. 25 mm Height 25 mm Material Polypropylene Nominal size Ø 373 mm Version for Support Width 373 mm - All types
