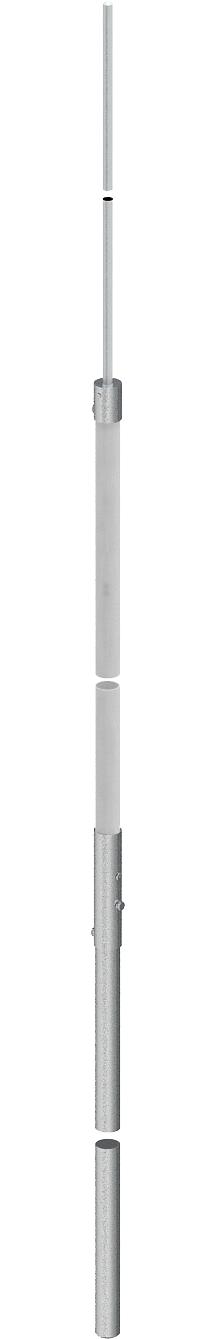

Insulated air-termination rod

Item no. 5408942 | EAN 4012195670056

Item no. / Types

Length

Product description

Product description

• For isolated creation of air-termination systems
• Suitable for isFang air-termination rod stand, type isFang 3B-100/150
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• For installation on the building structure with isFang support
• Fastening of the OBO isCon® conductor possible using accessories
• Suitable for externally routed isCon® conductors
• Stainless steel standpipe (V2A)
• Centre section made of fibre-glass reinforced plastic (GRP)
• Aluminium air-termination tip

Technical data

Technical data

Colour	Light grey
Connection	Round conductor

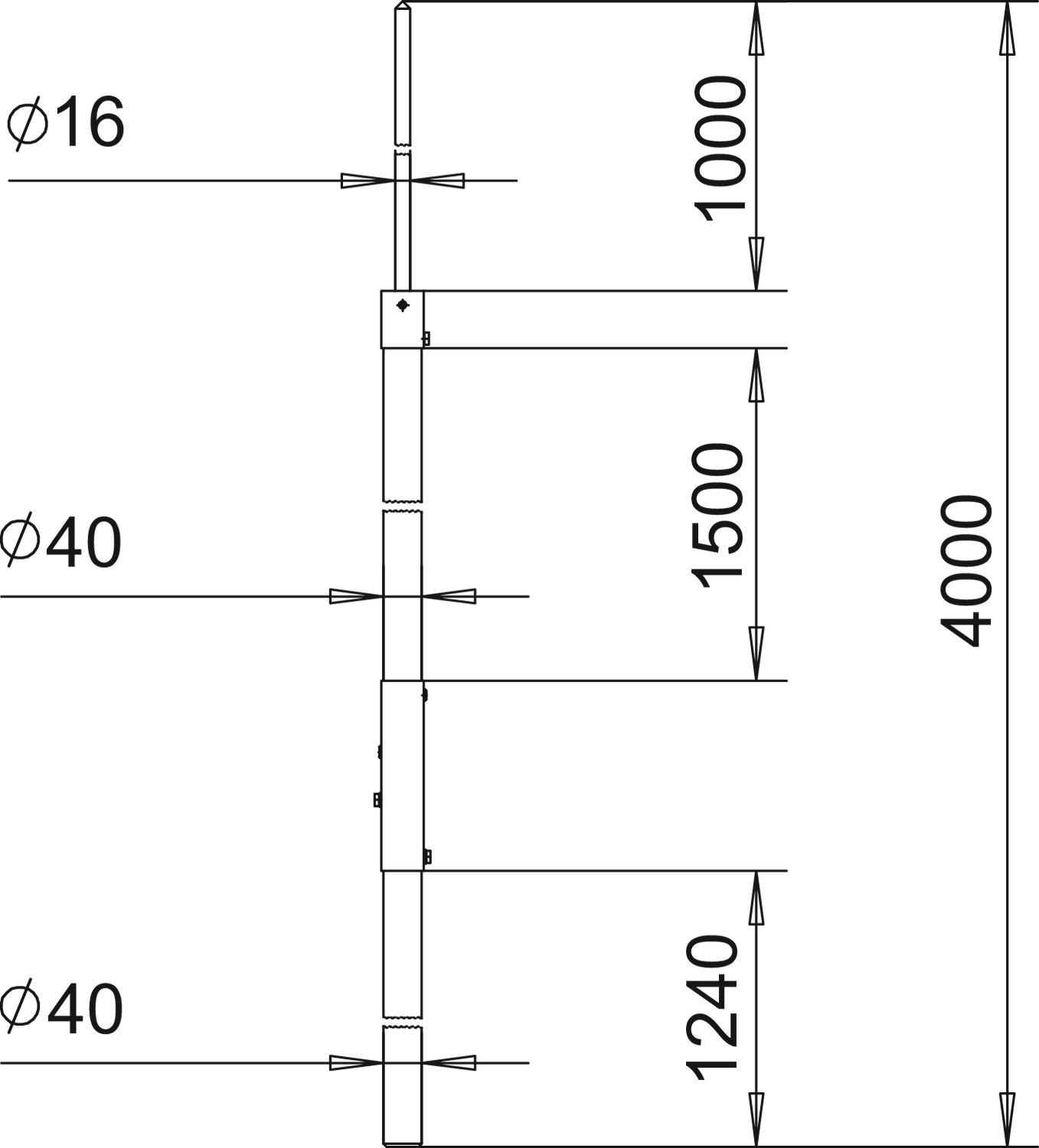

Diameter	40 mm
Dimension	4000mm
Dimension A	1240 mm
Dimension B	1000 mm

Dimension d min.	40 mm
Dimension H	1500 mm
High voltage-resistant, insulated version	yes
Length	4000 mm
Material	Fibre-glass-reinforced plastic
Version for	Air-termination rod

All types

All types

Types	Length	Item no.
isFang 4000	4000 mm	5408942
isFang 4000 AL	4000 mm	5408943
isFang 6000	6000 mm	5408946
isFang 6000 AL	6000 mm	5408947

Accessories

System accessories

Products	Types	Item no.
Concrete base for FangFix system, min. 16 kg	F-FIX-S16	5403227
Base for FangFix system 16 kg for mounting the isFang tripod	F-FIX-B16 3B	5403238
isFang tripod	isFang 3B-100 AL	5408966
isFang-3B threaded rod	isFang 3B-G2	5408972
