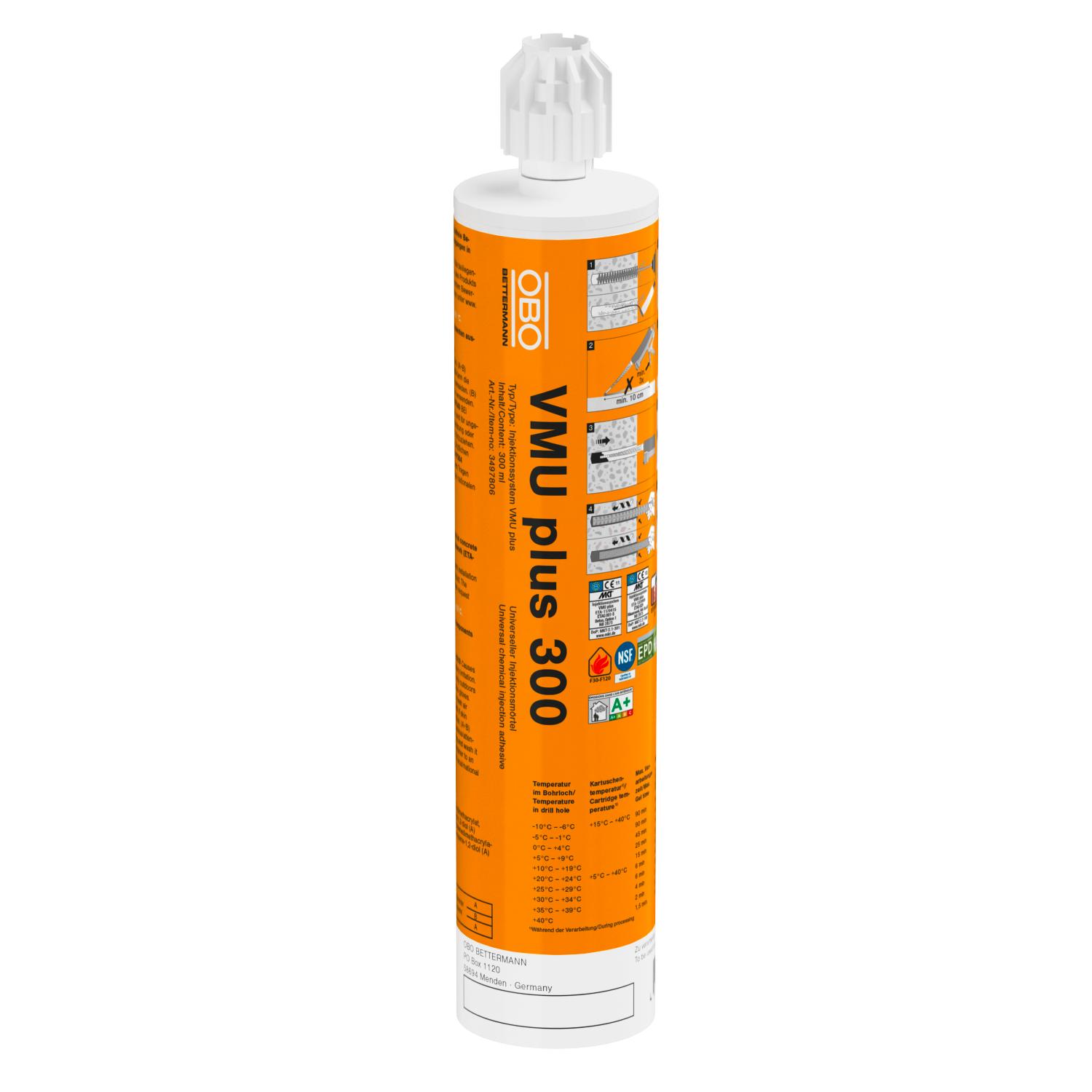

Injection mortar in cartridge, 300 ml

Item no. 3497806 | EAN 4012197334017

Product description
Product description
Styrene-free, vinyl ester composite mortar for spread-free anchoring of high loads with threaded anchor rods. Coaxial cartridge, including 1 mixing tube, to be worked with the standard cartridge gun or VM-P 345 Profi.


European Technical Assessment for cracked and uncracked concrete, as well as for masonry of full and hollow brick. Earthquake-proof in concrete according to Category C1. Fire protection approval for concrete and masonry with fire resistance classes up to 120 minutes.


Substrate temperature during processing -10 °C to +40 °C (concrete), ambient temperature after complete hardening -40 °C to +120 °C (in concrete). Will keep for at least 18 months if stored in a dark, cool and dry place.
The injection mortar has a European Technical Approval (ETA) for cracked and uncracked concrete, as well as for masonry of full or hollow brick. It is earthquake-proof according to performance category C1 and has fire protection approvals for concrete and masonry with a fire resistance class up to 120 minutes.
The injection mortar is worked with a pressing gun, type VM-P 345 Profi, or a standard silicone press.

The substrate temperature during processing must be ‒10 °C to +40 °C (concrete) and the ambient temperature after complete hardening ‒40 °C to +120 °C (in concrete).

If stored in a dark, cool and dry place, the mortar will keep for at least 18 months.
Technical data

Technical data

Adhesive application Construction/mounting
Colour Grey
Contents 300 ml
Delivery form Cartridge

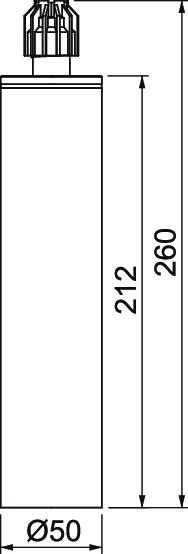

Dimension 260x50x50
Hardening method 2-component
Material Special mortar
Transparent no
With brush no
All types

All types

Types Item no.
VMU plus 300 3497806
Accessories

Mounting accessories

Products Types Item no.

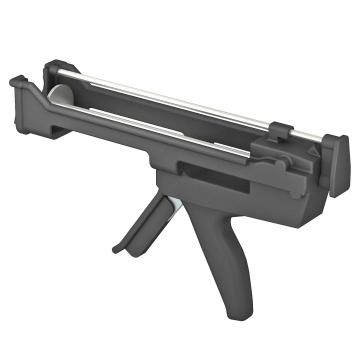

Pressing gun for standard cartridges and side-by-side cartridges Pressing gun for standard cartridges and side-by-side cartridges VM-P 345 Profi 3497906

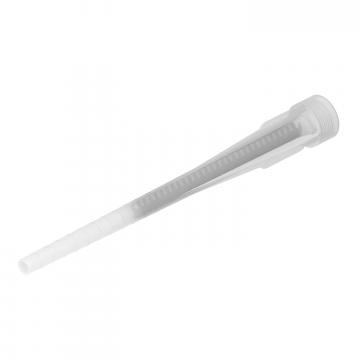

Mixer pipe for mortar cartridge Mixer pipe for mortar cartridge VM-X 3497981

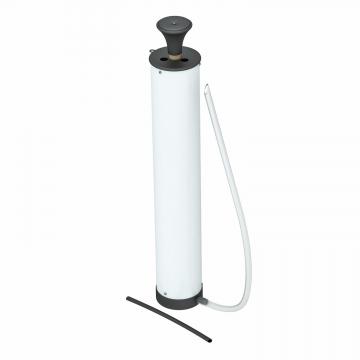

Blow pump for drill holes Blow pump for drill holes VM-AP 360 3497912
