Impact tie, version with collar
Item no. 3492008 | EAN 4012196709564
- Product description
-

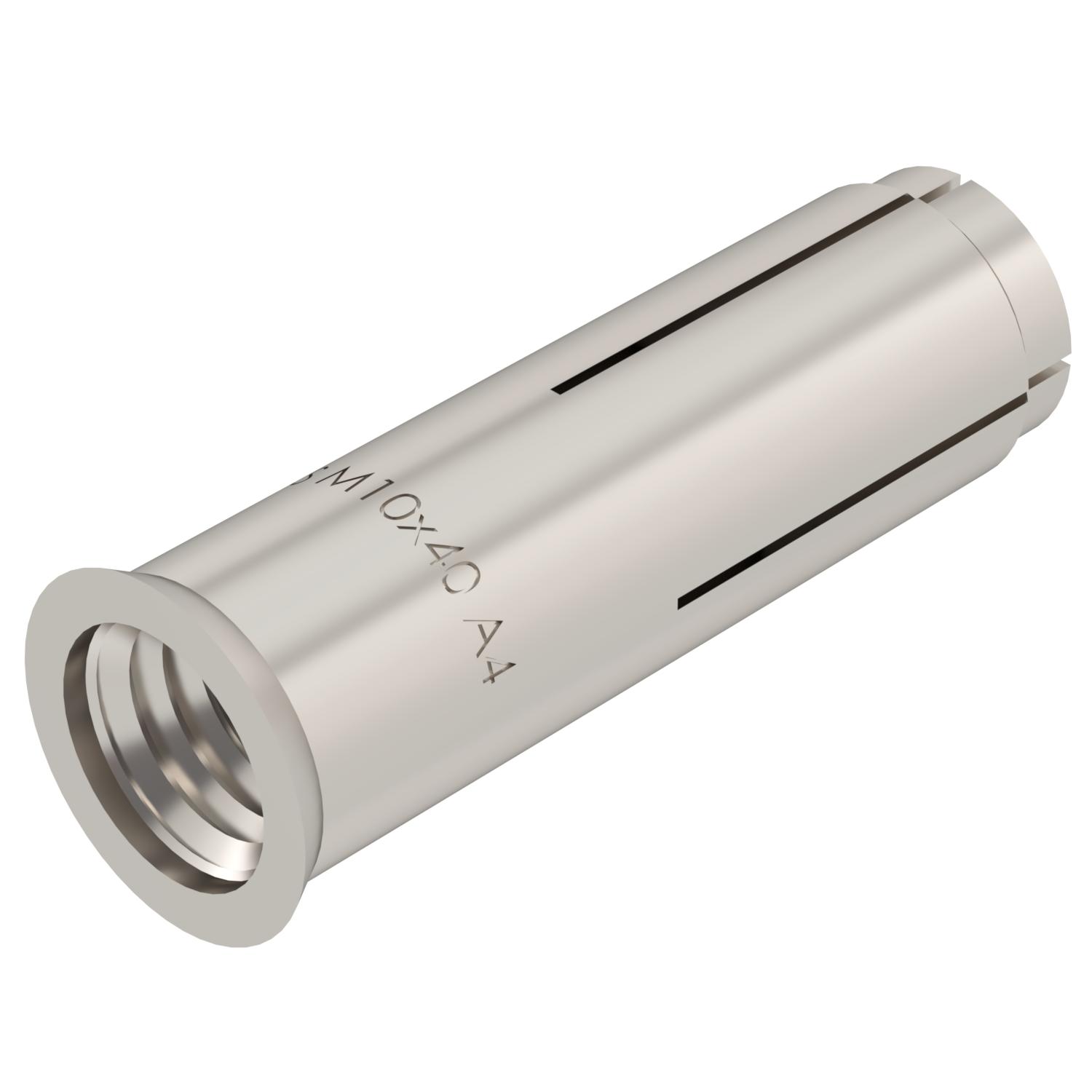

Product descriptionImpact tie for single fastening of non-load-bearing systems in non-cracked concrete as well as for multiple fastening in cracked and non-cracked concrete.
Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.
Mounting with marking and setting tool.
-
- Technical data
-
Technical data

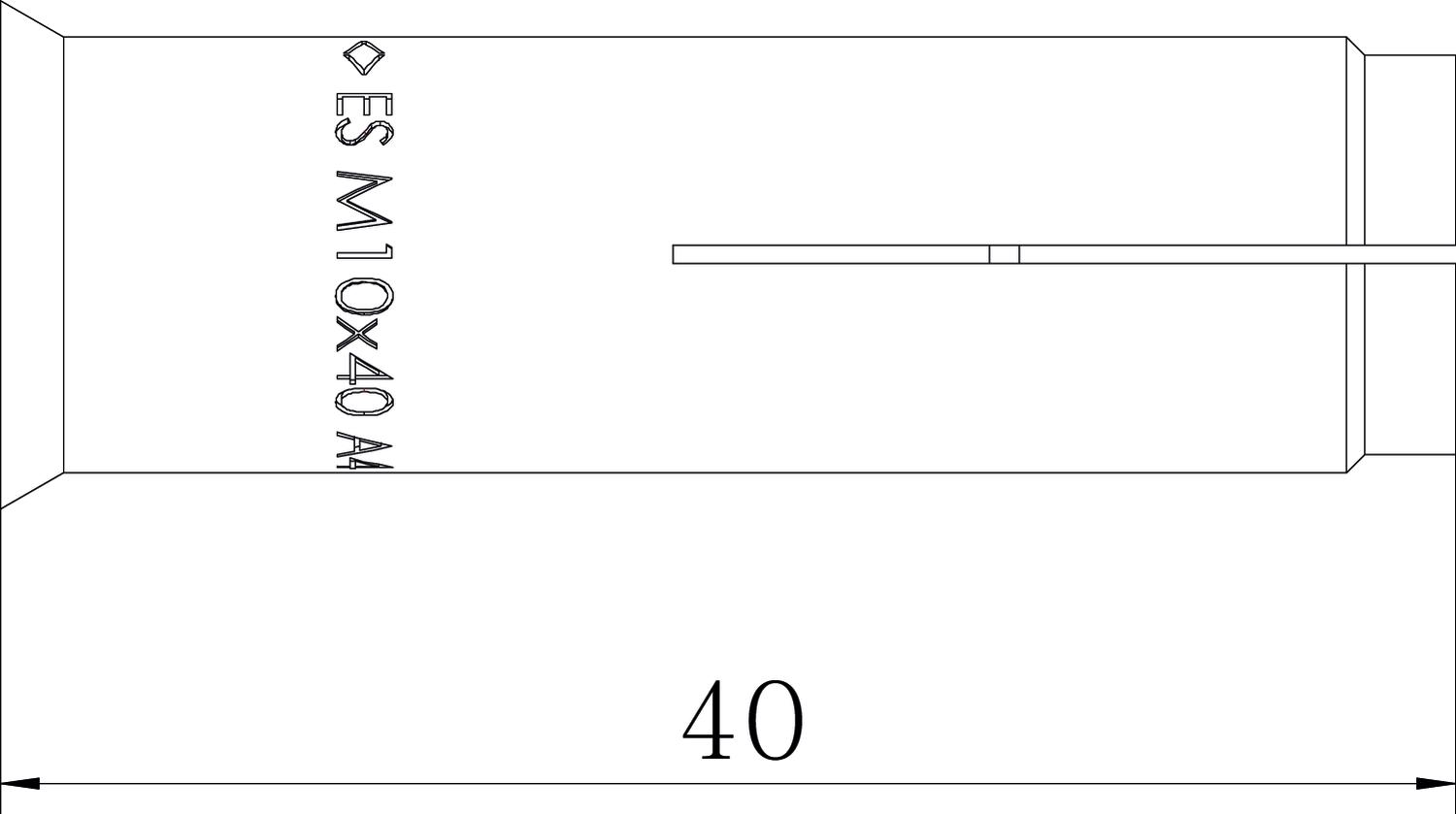

Approvals available yes Colour stainless steel Dimension 10x40 Dimension L 40 mm Drill hole depth 40 mm Drill hole diameter, min. 12 mm Fastening unit Miscellaneous Length 40 mm Material Stainless steel Mounting type, anchor, tie Pre-mounting Permitted load range, tension zone 2 Screw-in depth, max. 15 mm Screw-in depth, min. 11 mm Self-drilling no Suitable for material Concrete Thread M10 Thread metric 10 Version for Lightning strike - All types
- Downloads
-
Data sheet ES M 10x40 A4 / 3492008 , 0.16MB , pdfEU declaration of conformity ES M 10x40 A4 / 3492008 , 0.11MB , pdfEU declaration of conformity ES M 10x40 A4 / 3492008 , 0.30MB , pdfREACH Declaration of conformity ES M 10x40 A4 / 3492008 , 0.12MB , pdfRoHS Declaration of conformity ES M 10x40 A4 / 3492008 , 0.12MB , pdfApproval certificate European Technical Approval MKT multiple fastening impact tie E, ES , 4.00MB , pdfApproval certificate European Technical Approval, MKT single fastening impact tie E, ES , 2.59MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions, hollow core anchor Easy , 0.98MB , pdfMounting instructions Mounting instructions, E impact tie , 0.98MB , pdf
