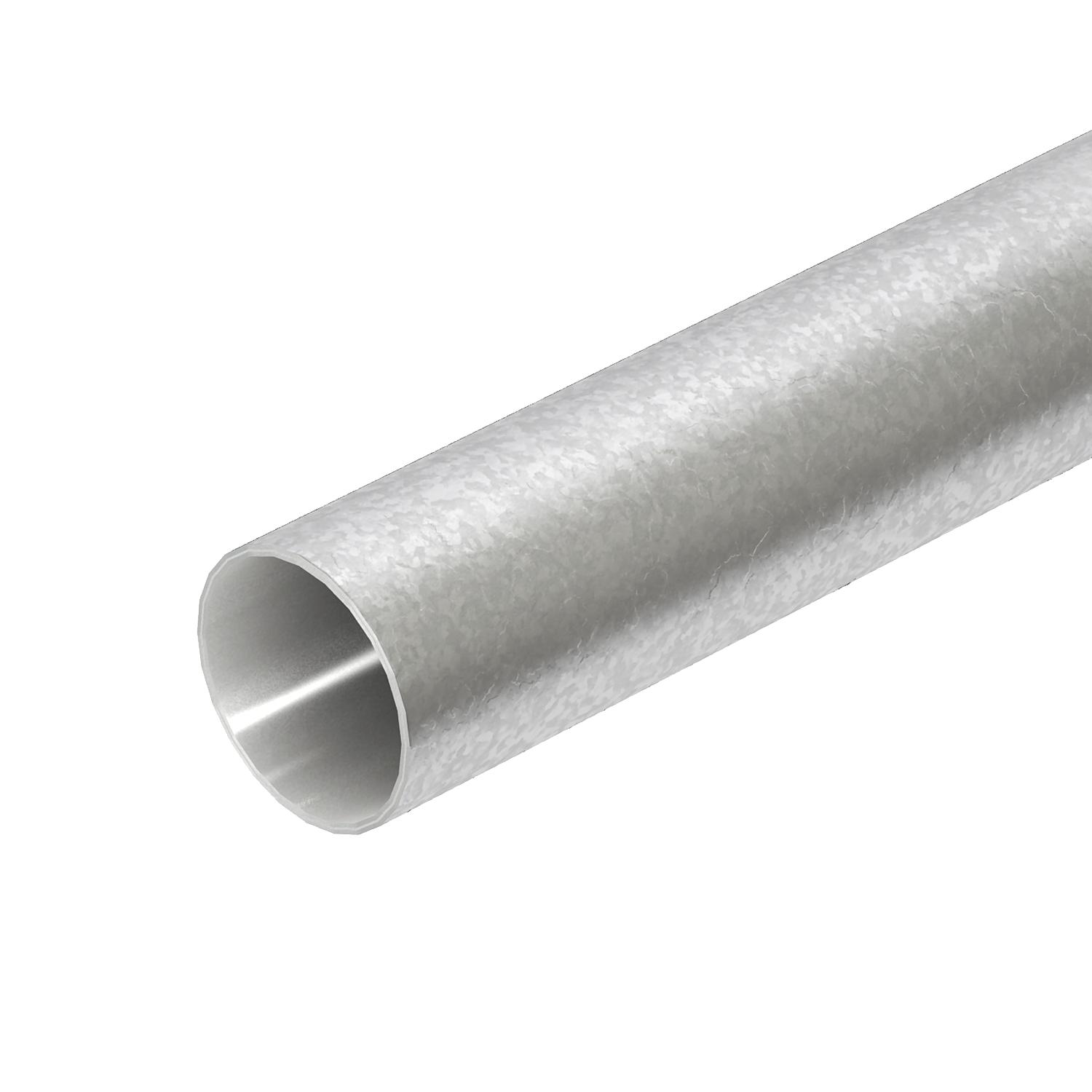

Hot-dip galvanised steel pipe, without thread
Item no. 2046596 | EAN 4012195782209
- Product description
-
Product descriptionElectrical installation pipe without threaded ends according to EN 61386-1 for mechanical protection of cables. With burr-free inner wall. Corrosion protection class 4 (high).
-
- Technical data
-
Technical data

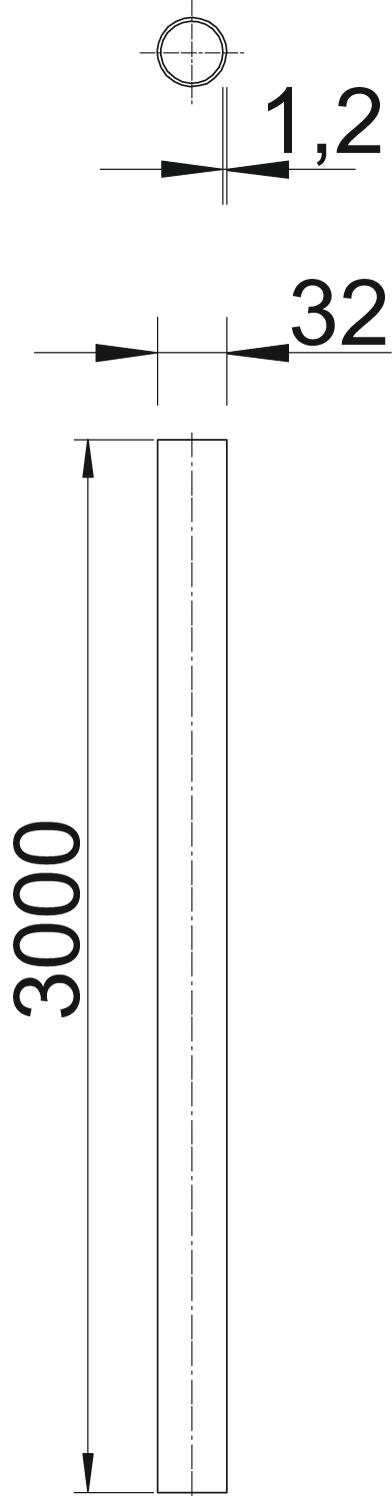

Brushed surface no Cavity wall installation yes Classification code 44571 CO2 Footprint (GWP) Cradle-to-Gate 2,2256 kg CO₂e / 1 Meter Concealed yes Concrete installation yes Connection 1, installation pipe Pipe end Connection 2, installation pipe Pipe end Dimension Ø32, 3000mm Dimension D 32 mm Dimension L 3000 mm Dimension m (mm) M32 Dimension t 1,2 mm External diameter 32 mm Installation in the earth yes Installation on wood yes Installation outdoors yes Length 3000 mm Machines and system installation yes Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Pipe version Rigid without thread Polished surface no Surface Hot-dip galvanised Surface-mounted yes Underfloor installation (bitumen, hot asphalt) yes Underfloor installation (screed) yes With sleeve no - All types
-
System accessories
Products Types Item no.

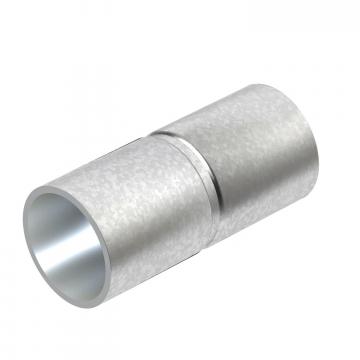

Hot-dip galvanised steel sleeve, without thread
SV32W FT 2046623

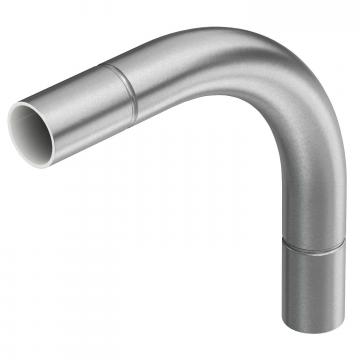

Hot-dip galvanised steel bend, without thread
SBN32 FT 2046819 Mounting accessories
Products Types Item no.

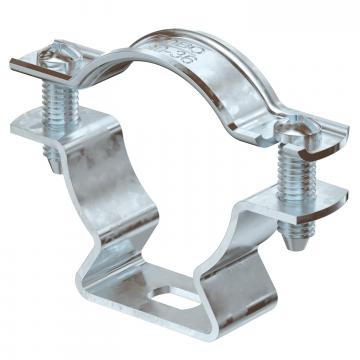

Spacer clip 733 FT
ASL 733 36 FT 1362726
Pipe end cap, splittable, metric, light grey
129 TB M32 2047855 - Downloads
-
Data sheet S32W FT / 2046596 , 0.24MB , pdfEU declaration of conformity S32W FT / 2046596 , 0.10MB , pdfUK Declaration of Conformity S32W FT / 2046596 , 0.09MB , pdfREACH Declaration of conformity S32W FT / 2046596 , 0.12MB , pdfRoHS Declaration of conformity S32W FT / 2046596 , 0.13MB , pdf
