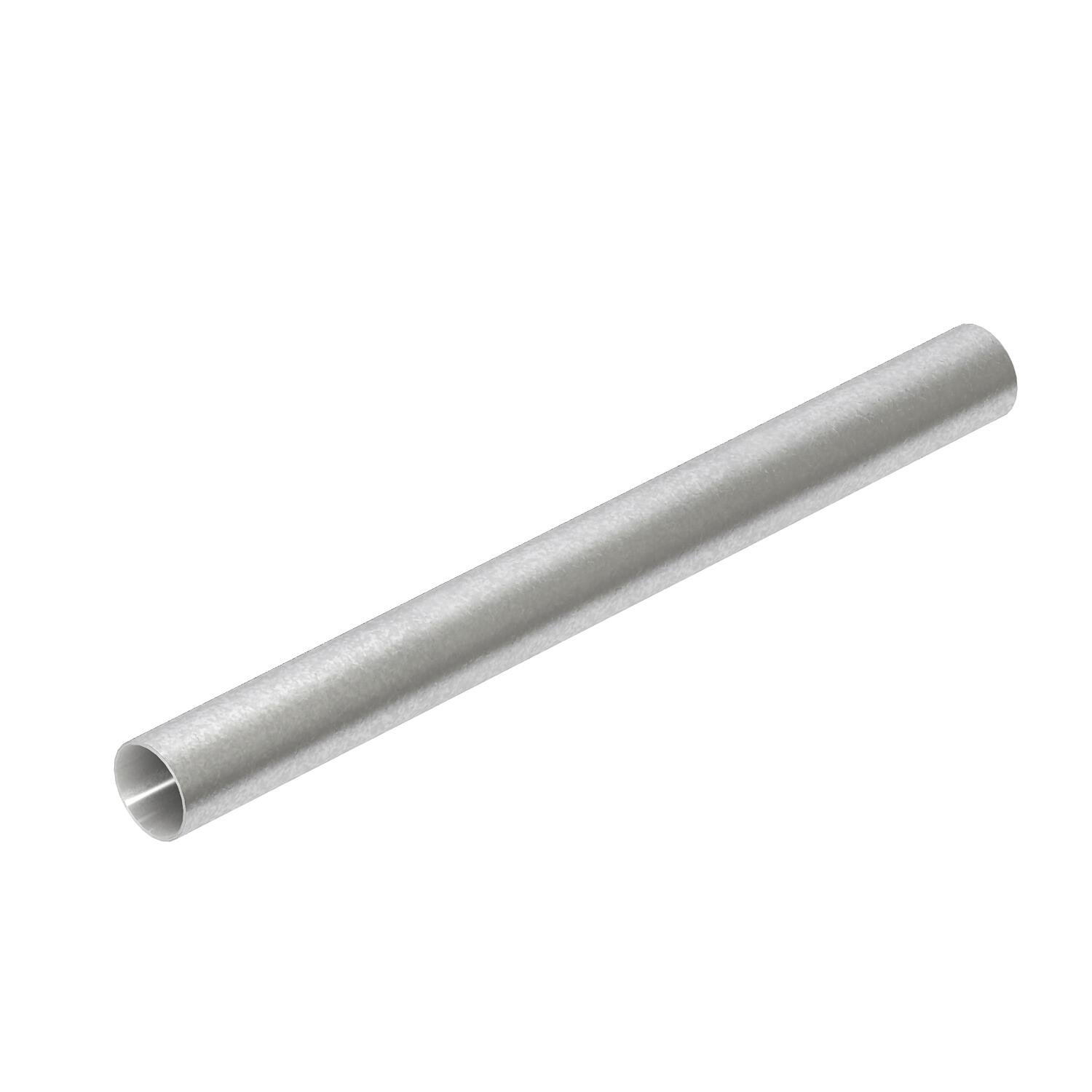

Hot-dip galvanised steel pipe, without thread 25 | M25 |

Hot-dip galvanised steel pipe, without thread

Item no. 2046595 | EAN 4012195782162

Item no. / Types

External diameter

Dimension m (mm)

Product description

Product description

Electrical installation pipe without threaded ends according to EN 61386-1 for mechanical protection of cables. With burr-free inner wall. Corrosion protection class 4 (high).

Technical data

Technical data

Brushed surface	no
Cavity wall installation	yes
Classification code	44571
CO2 Footprint (GWP) Cradle-to-Gate	1,7318 kg CO₂e / 1 Meter
Concealed	yes
Concrete installation	yes
Connection 1, installation pipe	Pipe end
Connection 2, installation pipe	Pipe end

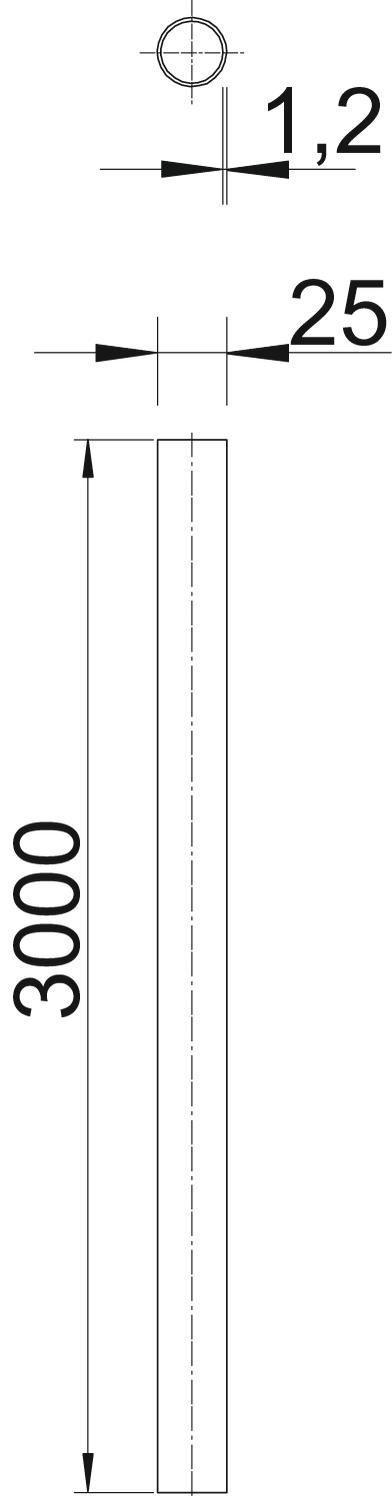

Dimension	Ø25, 3000mm
Dimension D	25 mm
Dimension L	3000 mm
Dimension m (mm)	M25
Dimension t	1,2 mm
External diameter	25 mm
Installation in the earth	yes

Installation on wood	yes
Installation outdoors	yes
Length	3000 mm
Machines and system installation	yes
Material	Steel
Permitted temperature range, max.	400 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid without thread
Polished surface	no
Surface	Hot-dip galvanised
Surface-mounted	yes
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes
With sleeve	no

All types

All types

Types	External diameter	Dimension m (mm)	Item no.
S16W FT	16 mm	M16	2046593
S20W FT	20 mm	M20	2046594
S25W FT	25 mm	M25	2046595
S32W FT	32 mm	M32	2046596
S40W FT	40 mm	M40	2046597
S50W FT	50 mm	M50	2046598
S63W FT	63 mm	M63	2046599
