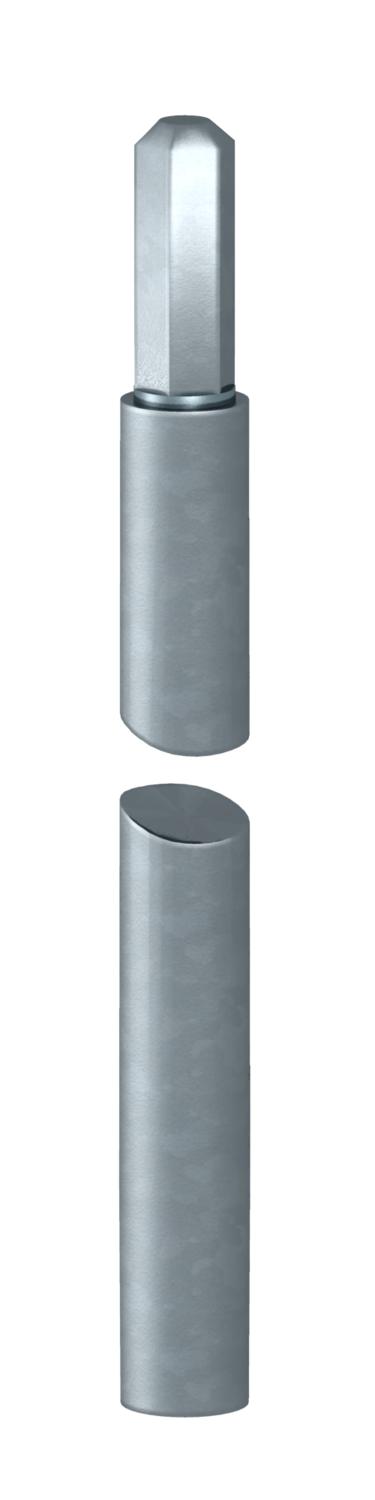

Earth rod OMEX

Item no. 5000017 | EAN 4012195371298

Item no. / Types

Length

External diameter	20 mm

Material	Steel

Product description

Product description

• OMEX system
• With peg and bore for linking together
• With hardened hexagonal pins
• Min. zinc coating 60 µm
• Very good contacting properties with soft metal inlay in the bore hole
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	10,3243 kg CO₂e / 1 Piece

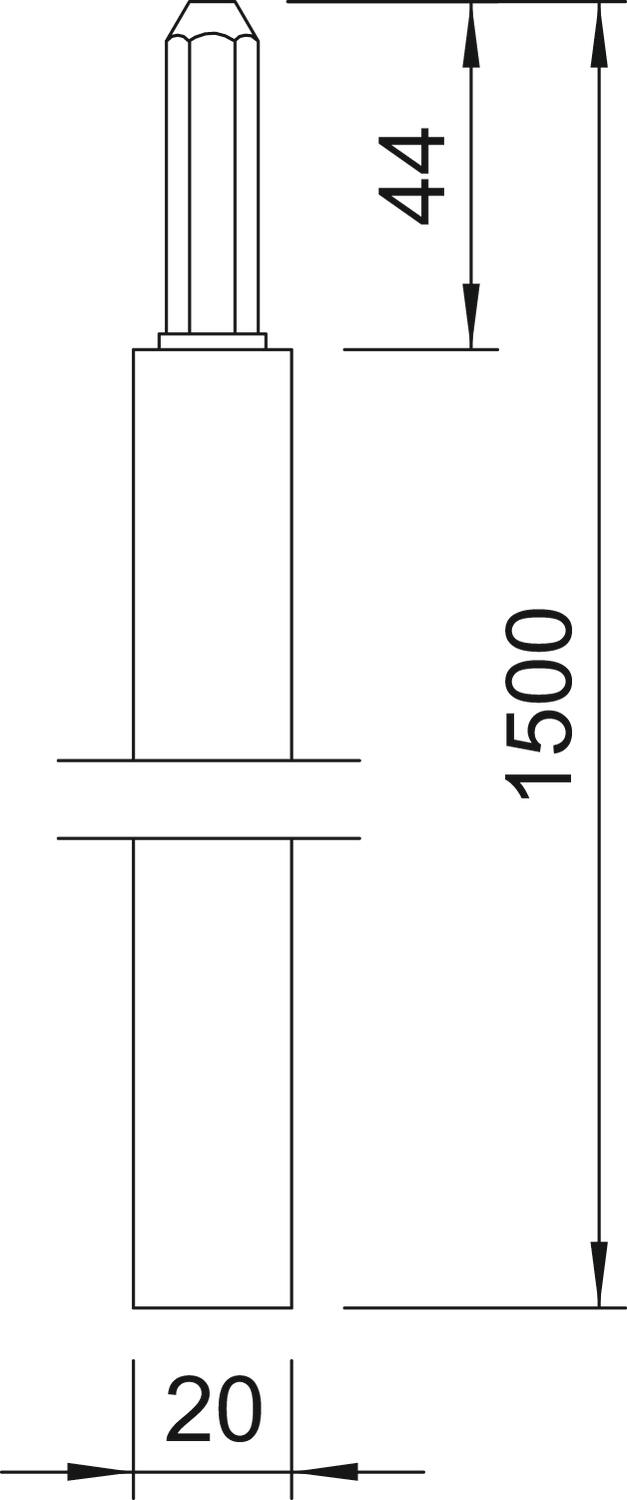

Dimension	1,5m
Dimension D	20 mm
External diameter	20 mm
Length	1500 mm

Lightning current carrying capacity	H/100 kA
Material	Steel
Profile type	Round D=20 mm
Short-circuit current (50 HZ)(1 s;≤300°C)	7,9 kA
Surface	Hot-dip galvanised

All types

All types

Types	Length	External diameter	Material	Item no.
219 20 OMEX FT	1500 mm	20 mm	Steel	5000017
219 20 OMEX FT	2000 mm	20 mm	Steel	5000203

Accessories

Mounting accessories

Products	Types	Item no.

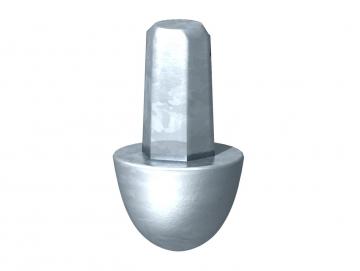

Driving spike for OMEX earth rod	1819 20	3041204
Driving head for ST, BP and OMEX earth rods	1820 20	3042200
Connection clip for earthing rod to round cables Rd 8−10	2710 20 FT	5001218
Connection clamp for earth rod on flat conductor FT	2730 20 FT	5001404
Connection clamp for earth rod, universal FT	2760 20 FT	5001641
