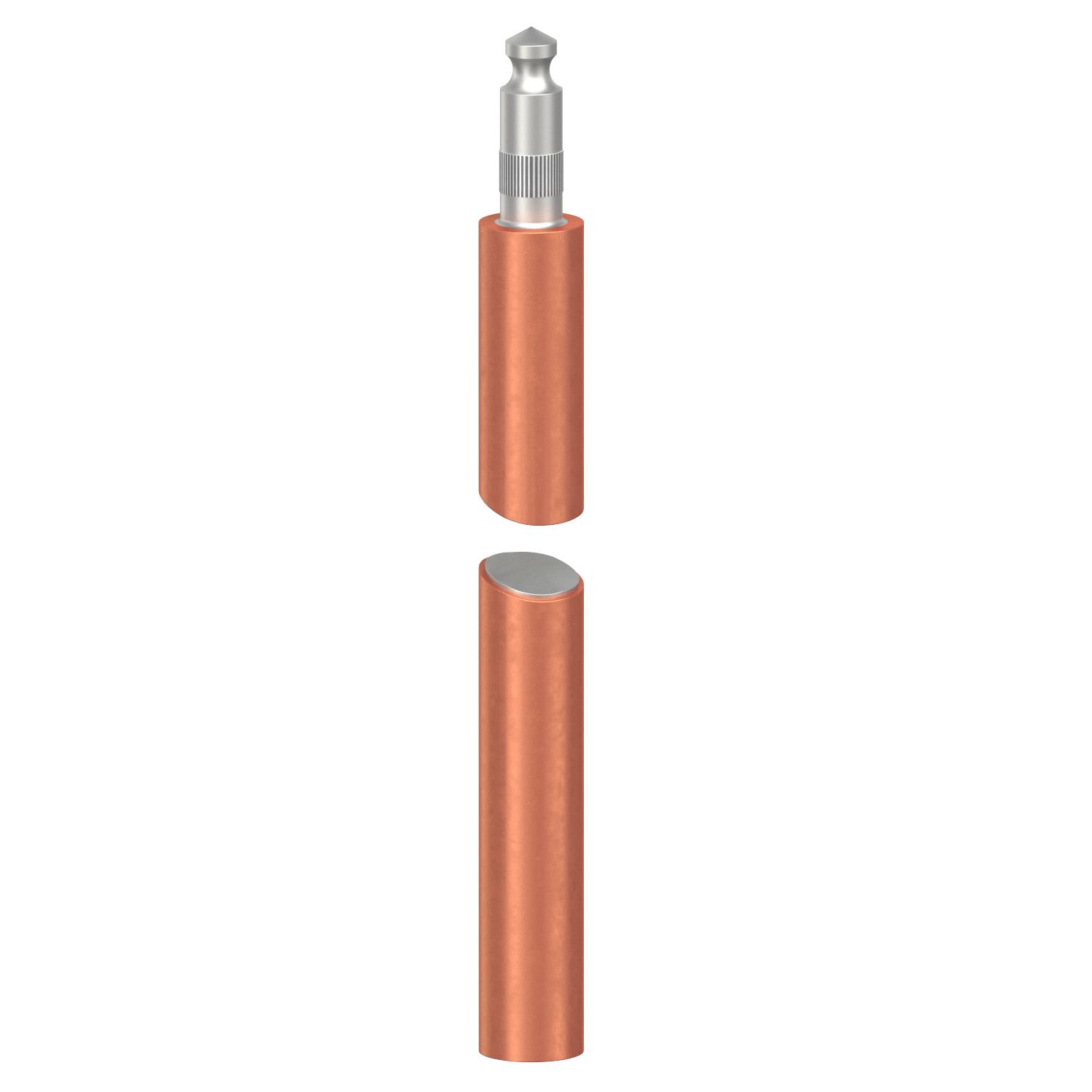

Earth rod BP with copper sheath
Item no. 5000500 | EAN 4012196336340
- Product description
-
Product description• "BP" system (Bundespost)
• Made of steel with a copper jacket of min. 0.25 mm
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• Tensile strength min. 600 N/mm²
• Conforms to the requirements according to VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data

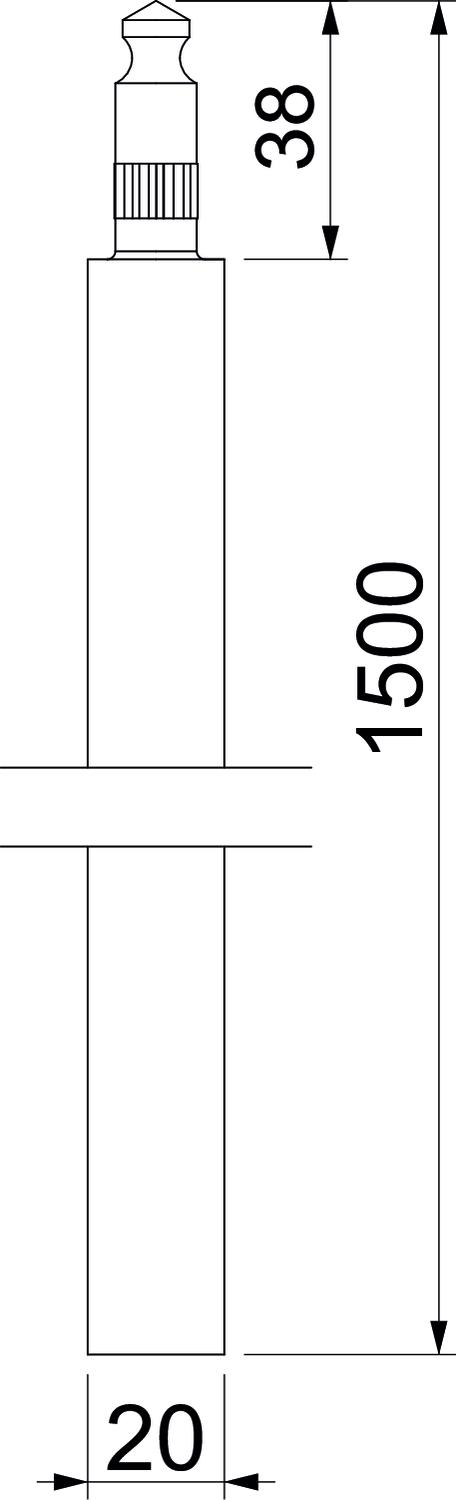

CO2 Footprint (GWP) Cradle-to-Gate 7,093 kg CO₂e / 1 Piece Dimension 1,5m Dimension D 20 mm Dimension L 1500 mm External diameter 20 mm Length 1500 mm Lightning current carrying capacity H/100 kA Material Steel Profile type Round D=20 mm Short-circuit current (50 HZ)(1 s;≤300°C) 7,9 kA Surface Copper-plated - All types
-
Mounting accessories
Products Types Item no.
Driving spike for ST and BP earth rod
1819 20BP 3041212
Driving head for ST, BP and OMEX earth rods
1820 20 3042200

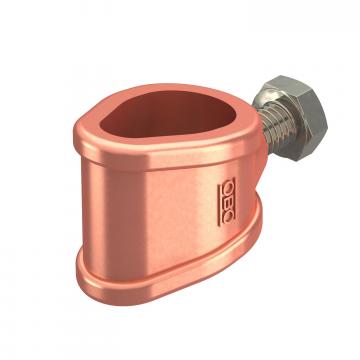

Connection clamp for earth rod or cables
2745 20 MS 5001560 - Downloads
-
Data sheet 219 20 BP CU / 5000500 , 0.20MB , pdfEU declaration of conformity 219 20 BP CU / 5000500 , 0.06MB , pdfREACH Declaration of conformity 219 20 BP CU / 5000500 , 0.13MB , pdfRoHS Declaration of conformity 219 20 BP CU / 5000500 , 0.13MB , pdfMounting instructions Mounting instructions, earth rod , 0.15MB , pdf
