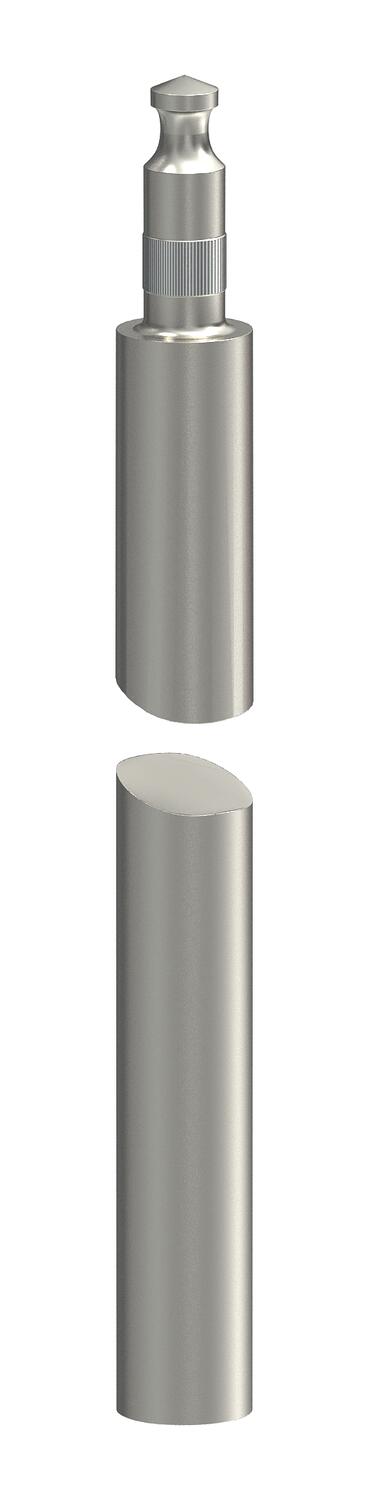

Earth rod BP
Item no. 5000858 | EAN 4012195740650
- Product description
-
Product description• "BP" system (Bundespost)
• Very good contacting properties with soft metal inlay in the bore hole
• With peg and bore for linking together
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• Short circuit current Ik (50 Hz), time 1 s, max. temp. 300 °C: 4.5 kA (219 20 BP V4A)
-
- Technical data
-
Technical data

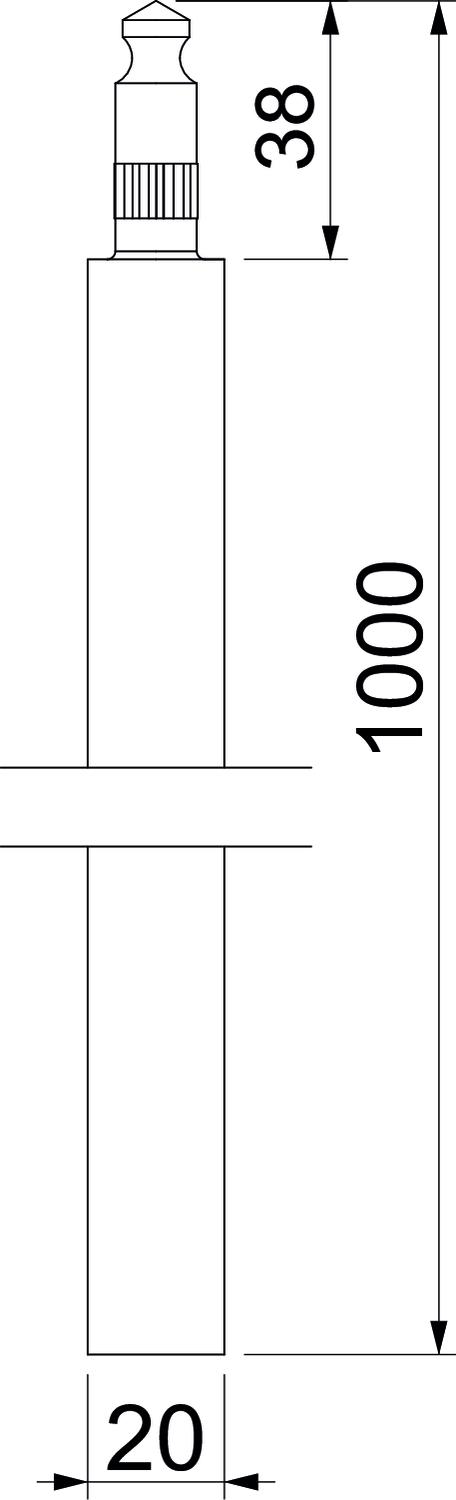

CO2 Footprint (GWP) Cradle-to-Gate 12,3875 kg CO2e / 1 Piece Dimension 1m Dimension L 1000 mm External diameter 20 mm Length 1000 mm Lightning current carrying capacity H1/150 kA Material Stainless steel Profile type Round D=20 mm Short-circuit current (50 HZ)(1 s;≤300°C) 4,2 kA - All types
-
Mounting accessories
Products Types Item no.
Driving spike for ST and BP earth rod
1819 20BP 3041212
Driving head for ST, BP and OMEX earth rods
1820 20 3042200
Connection clip for earth rod, universal A4
2760 20 V4A 5001633 - Downloads
-
Data sheet 219 20 BP V4A / 5000858 , 0.18MB , pdfEU declaration of conformity 219 20 BP V4A / 5000858 , 0.06MB , pdfREACH Declaration of conformity 219 20 BP V4A / 5000858 , 0.13MB , pdfRoHS Declaration of conformity 219 20 BP V4A / 5000858 , 0.13MB , pdfMounting instructions Mounting instructions, earth rod , 0.15MB , pdfNo invitation to tender text is available for this product.
