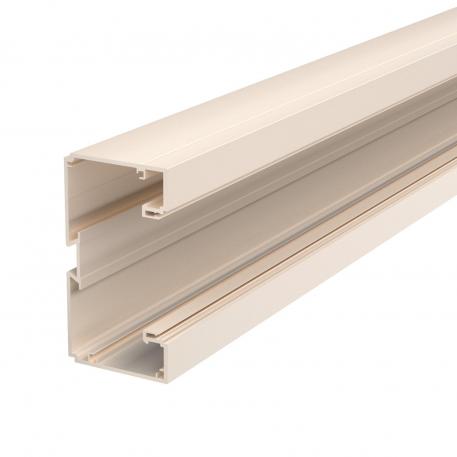

Device installation trunking Signa Base 70130
Item no. 6132725 | EAN 4012196717422
- Product description
-
Product descriptionTrunking base of the Signa Base device installation trunking for covered cable routing and device installation in internal areas. The scope of delivery contains two trunking couplings.
-
- Technical data
-
Technical data

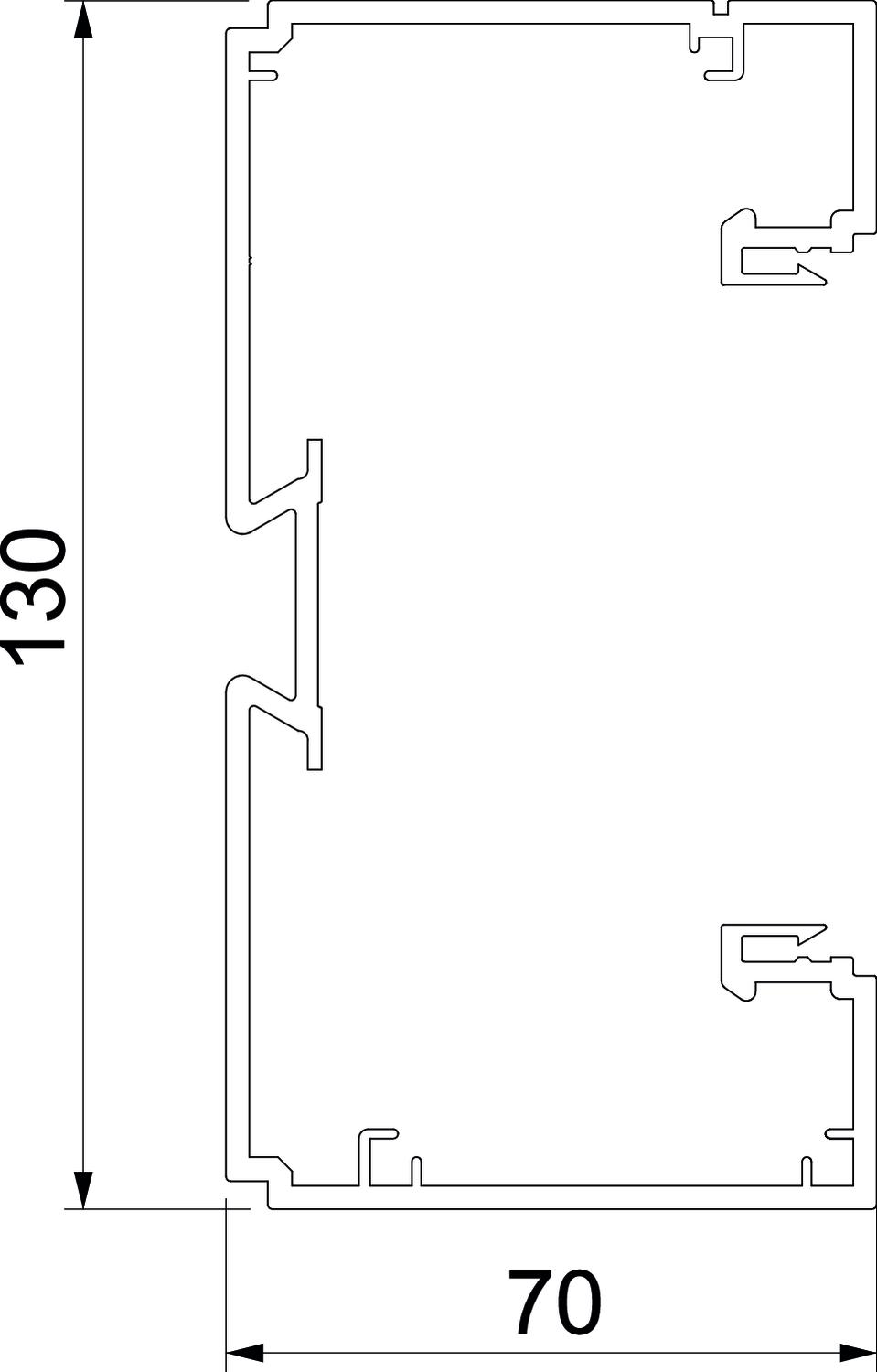

Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 2,3063 kg CO₂e / 1 Meter Colour Cream; RAL 9001 Cover mounting type Internal Cover supplied no Cover width 79 mm Duct connector yes Halogen-free no Height 70 mm Length 2000 mm Material Polyvinylchloride Mounting perforation in base yes Number of covers 1 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK07. Protective film yes Rear panel version (inner side) Continuous DIN rail Rectangular shape yes Symmetrical no Usable cross-section 7456 mm² Width 130 mm - All types
-
System accessories
Products Types Item no.
Accessory mounting box BRK GD, single
BRK GD gr 6133577
Accessory mounting box BRK GD2CEE, double
BRK GD 2CEE gr 6133579
Cover Signa Base OT 700802
BRK 700802 cws 6132735

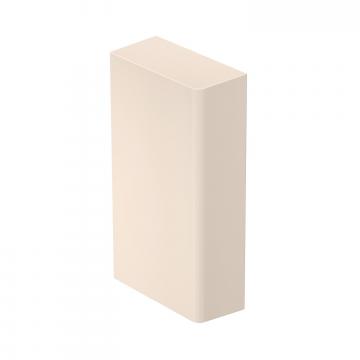

End piece Signa Base ES 70130
BRK ES70130 cws 6132777

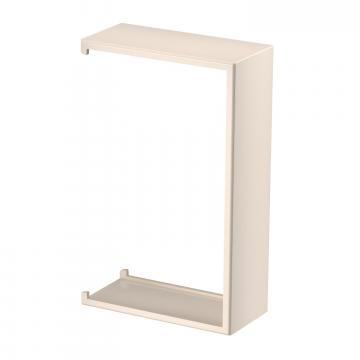

Joint cover Signa Base SSA 70110
BRK SSA70110 cws 6132787
Partition BRK TW
BRK TW 6133610

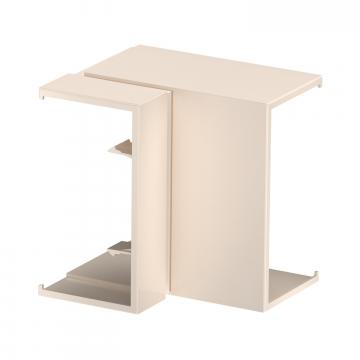

Internal corner Signa Base IE 70130
BRK IE70130 cws 6132752

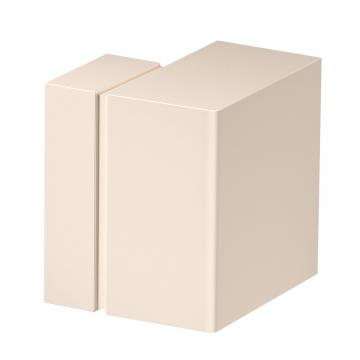

External corner Signa Base AE 70130
BRK AE70130 cws 6132743

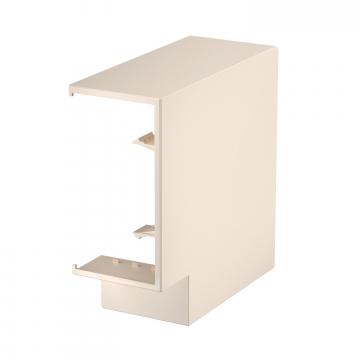

Flat angle Signa Base FW 70130
BRK FW70130 cws 6132765
Cable retaining clip Signa Base HK
SB HK 6132799
CEE flange BRK CEE FL
BRK CEE FL cws 6121122
Data socket BRK GD UAE
BRK GD UAE 6121072
Keystone support BRK-Key A45
BRK Key A45 cws 6121082 - Downloads
-
Data sheet BRK 70130 cws / 6132725 , 0.17MB , pdfEU declaration of conformity BRK 70130 cws / 6132725 , 0.10MB , pdfREACH Declaration of conformity BRK 70130 cws / 6132725 , 0.12MB , pdfRoHS Declaration of conformity BRK 70130 cws / 6132725 , 0.12MB , pdfMounting instructions Signa Base device installation trunking , 15.61MB , pdfNo invitation to tender text is available for this product.
