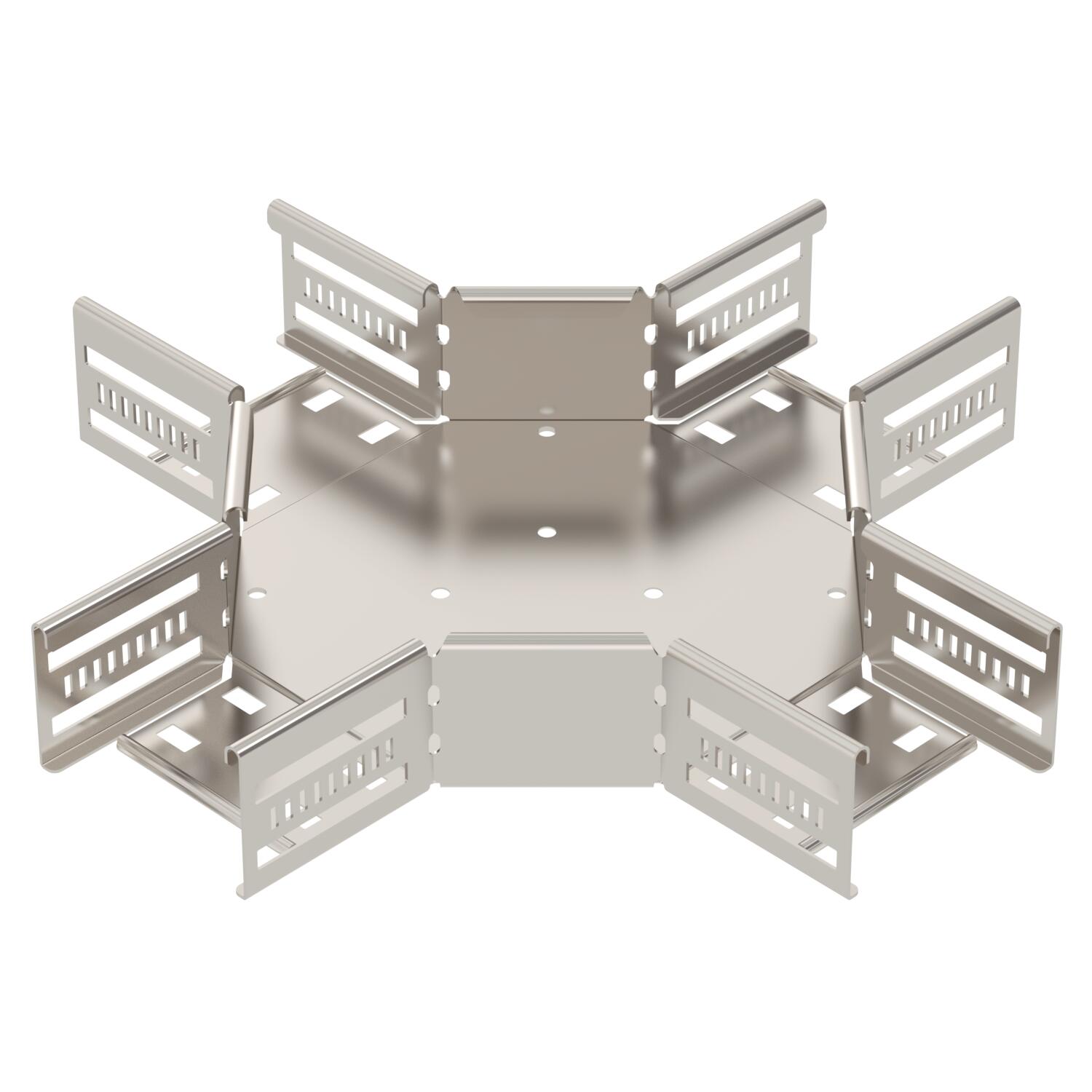

Cross-over 60 A2
Item no. 7027501 | EAN 4012197339623
- Product description
-
Product descriptionCross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nut. Can be used indoors and outdoors. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

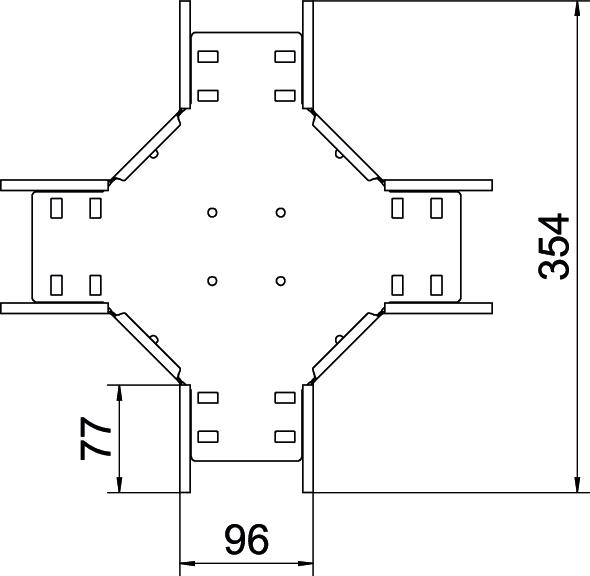

Colour stainless steel Connector version Integrated connector Dimension 60x100 Dimension B 100 mm Height 60 mm Maintain electrical functions yes Material Stainless steel Material thickness, floor plate 0,8 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 20 St. Rustproof steel, pickled no Surface Bright, treated Type of connector, cable support system screwed/clamped Wide-span version no Width 100 mm - All types
-
System accessories
Products Types Item no.

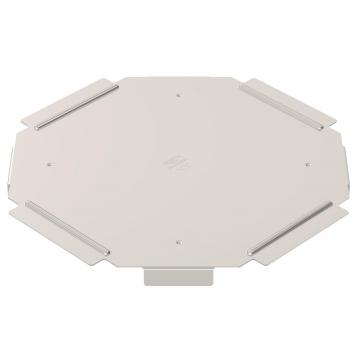

Cover, cross-over 100 A4
RKD 100 A4 7027880 Mounting accessories
Products Types Item no.
Double clamp, fitting mounting A2
DOP A2 6035998
Truss-head bolt with flange nut A2
FRSB 6x12 A2 6406138 - Downloads
-
Data sheet RK 610 A2 / 7027501 , 0.20MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RK 610 A2 / 7027501 , 0.10MB , pdfREACH Declaration of conformity RK 610 A2 / 7027501 , 0.12MB , pdfRoHS Declaration of conformity RK 610 A2 / 7027501 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
