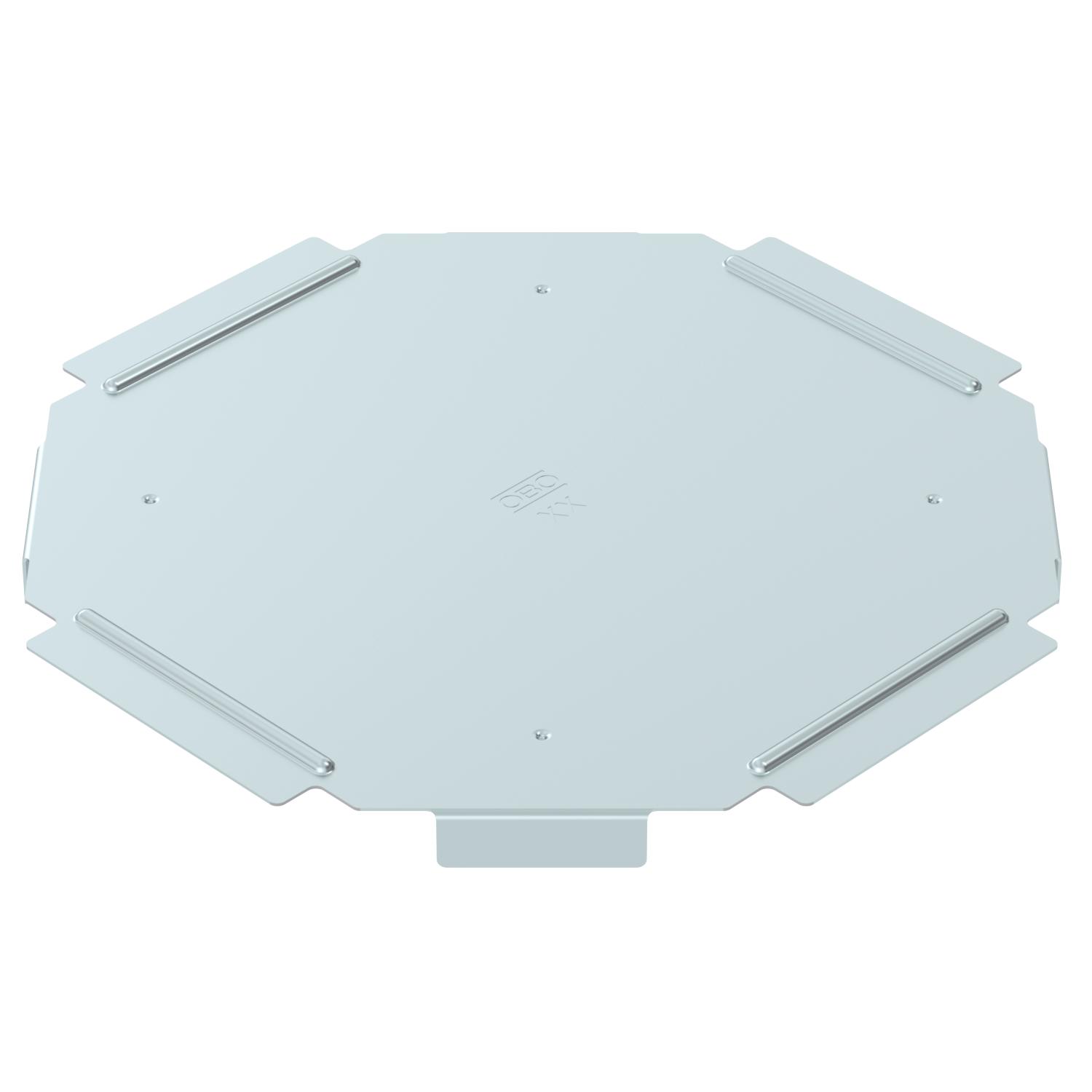

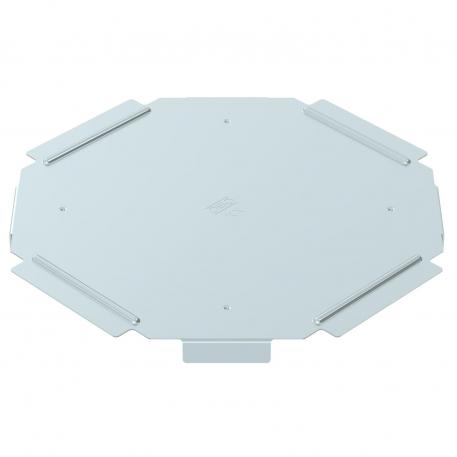

Cover, cross-over DD
Item no. 7027840 | EAN 4012197408510
- Product description
-
Product descriptionCover for cross-over fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data
Colour zinc Dimension B100mm Dimension B 100 mm Fastening type On top Material Steel Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Surface Strip galvanised zinc/aluminium, Double Dip Width 100 mm - All types
- Downloads
-
Data sheet RKD 100 DD / 7027840 , 0.17MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RKD 100 DD / 7027840 , 0.10MB , pdfUK Declaration of Conformity RKD 100 DD / 7027840 , 0.09MB , pdfREACH Declaration of conformity RKD 100 DD / 7027840 , 0.12MB , pdfRoHS Declaration of conformity RKD 100 DD / 7027840 , 0.13MB , pdfSelection aid Selection aid cable trays, screwable , 2.17MB , pdfSelection aid Selection aid for cable trays, Magic , 0.23MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
