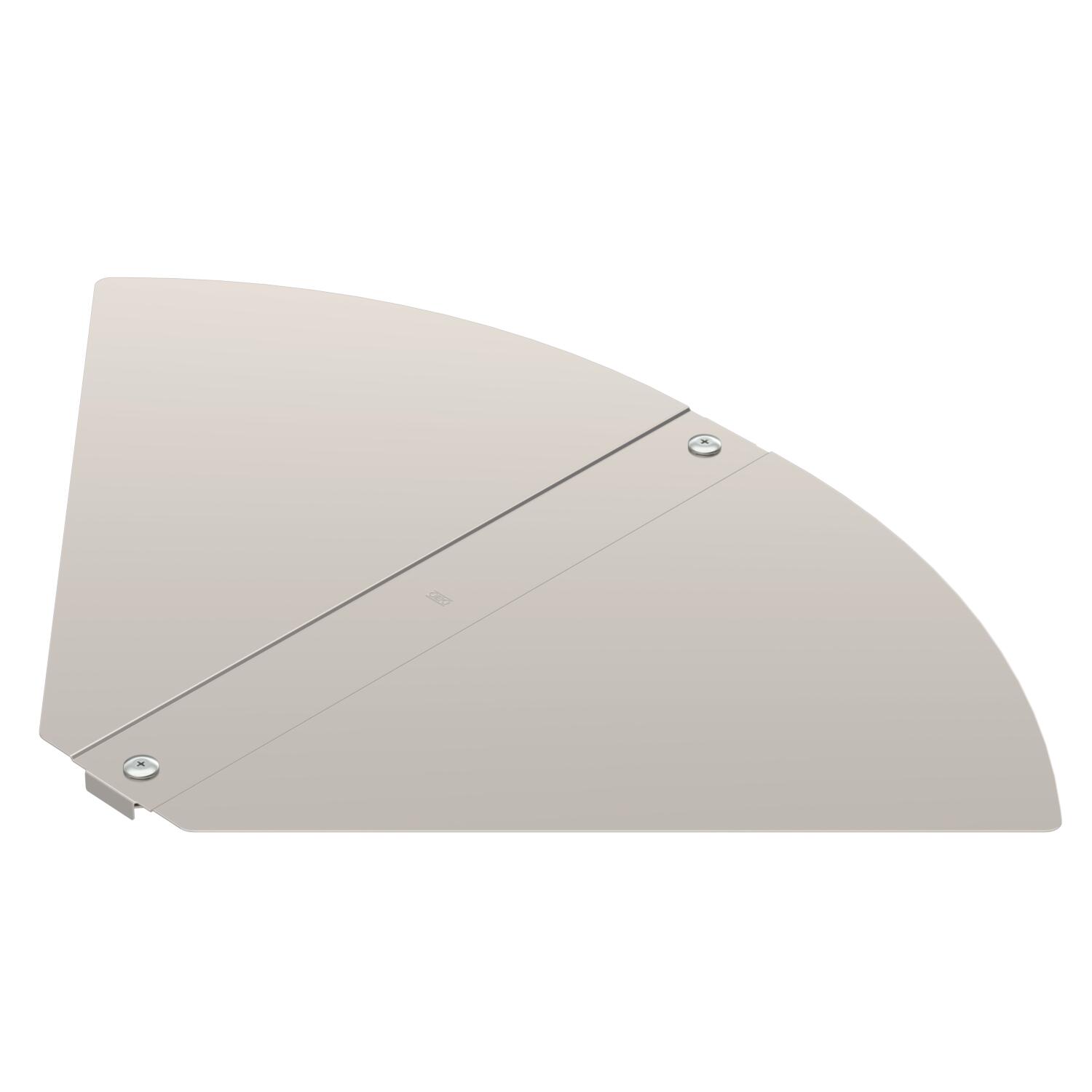

Cover, angle-adjustable bend A4

Item no. 6037580 | EAN 4012197407957

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.

Technical data

Technical data

Bend (angle)	Adjustable
Change of direction	Horizontal
CO2 Footprint (GWP) Cradle-to-Gate	19,2729 kg CO2e / 1 Piece
Colour	stainless steel

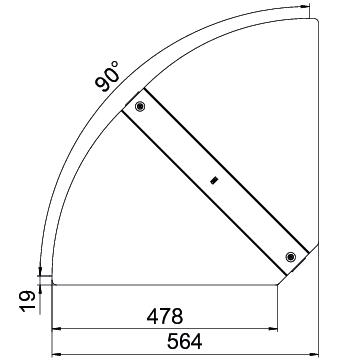

Dimension	B500mm
Dimension B	500 mm
Fastening type	Sash lock
Hinged	no
Maintain electrical functions	no
Material	Stainless steel

Number of turn buckles	2 St.
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	1 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Suitable for mesh cable tray	no
Surface	Bright, treated
Width	500 mm

All types

All types

Types	Width	Plate thickness	Item no.
RBD W 100 A4	100 mm	0.75 mm	6037572
RBD W 200 A4	200 mm	0.75 mm	6037574
RBD W 300 A4	300 mm	0.75 mm	6037576
RBD W 400 A4	400 mm	1 mm	6037578
RBD W 500 A4	500 mm	1 mm	6037580
RBD W 600 A4	600 mm	1 mm	6037582
