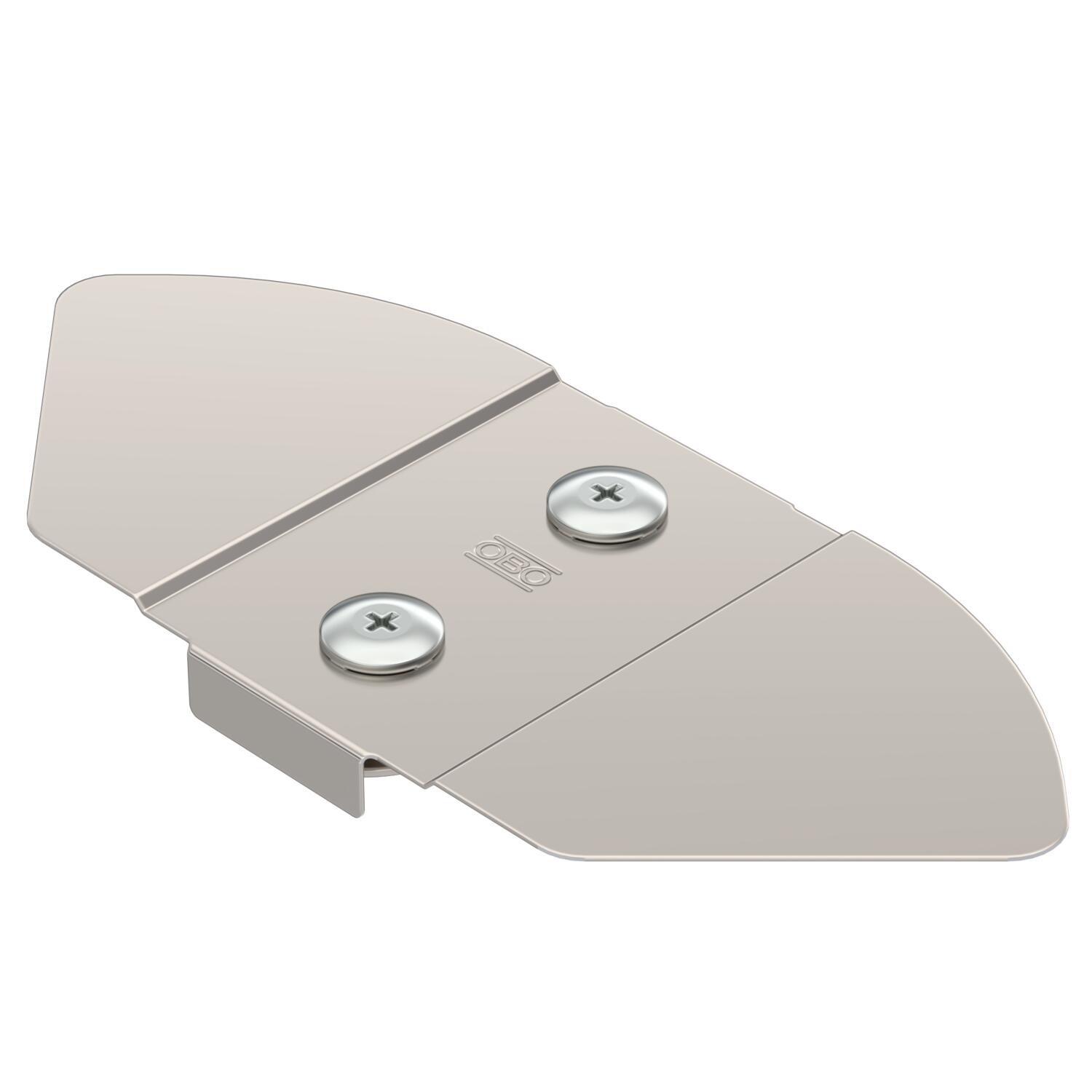

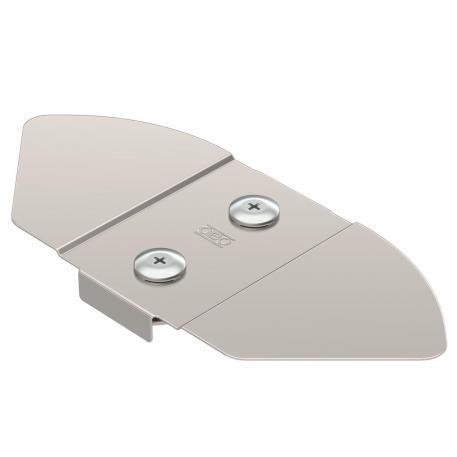

Cover, angle-adjustable bend A4
Item no. 6037572 | EAN 4012197407872
- Product description
-
Product descriptionCover for angle-adjustable bend fitting for lockable and screw-on cable trays in indoor and outdoor areas, to protect cables against damage and soiling. Fastening with pre-mounted sash locks and through attachment of the section cover. Suitable for all side heights.
-
- Technical data
-
Technical data

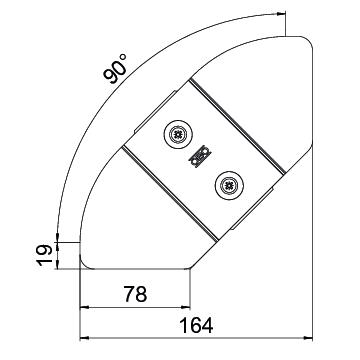

Bend (angle) Adjustable Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 1,7411 kg CO2e / 1 Piece Colour stainless steel Dimension B100mm Dimension B 100 mm Fastening type Sash lock Hinged no Maintain electrical functions no Material Stainless steel Number of turn buckles 2 St. Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,75 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated Width 100 mm - All types
- Downloads
-
Data sheet RBD W 100 A4 / 6037572 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RBD W 100 A4 / 6037572 , 0.11MB , pdfUK Declaration of Conformity RBD W 100 A4 / 6037572 , 0.09MB , pdfREACH Declaration of conformity RBD W 100 A4 / 6037572 , 0.12MB , pdfRoHS Declaration of conformity RBD W 100 A4 / 6037572 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
