Control T piece with thread 96 | 156 | 40

Control T piece with thread

Item no. 2047608 | EAN 4012195957775

Item no. / Types

Dimension D

Dimension L

Size

Product description

Product description

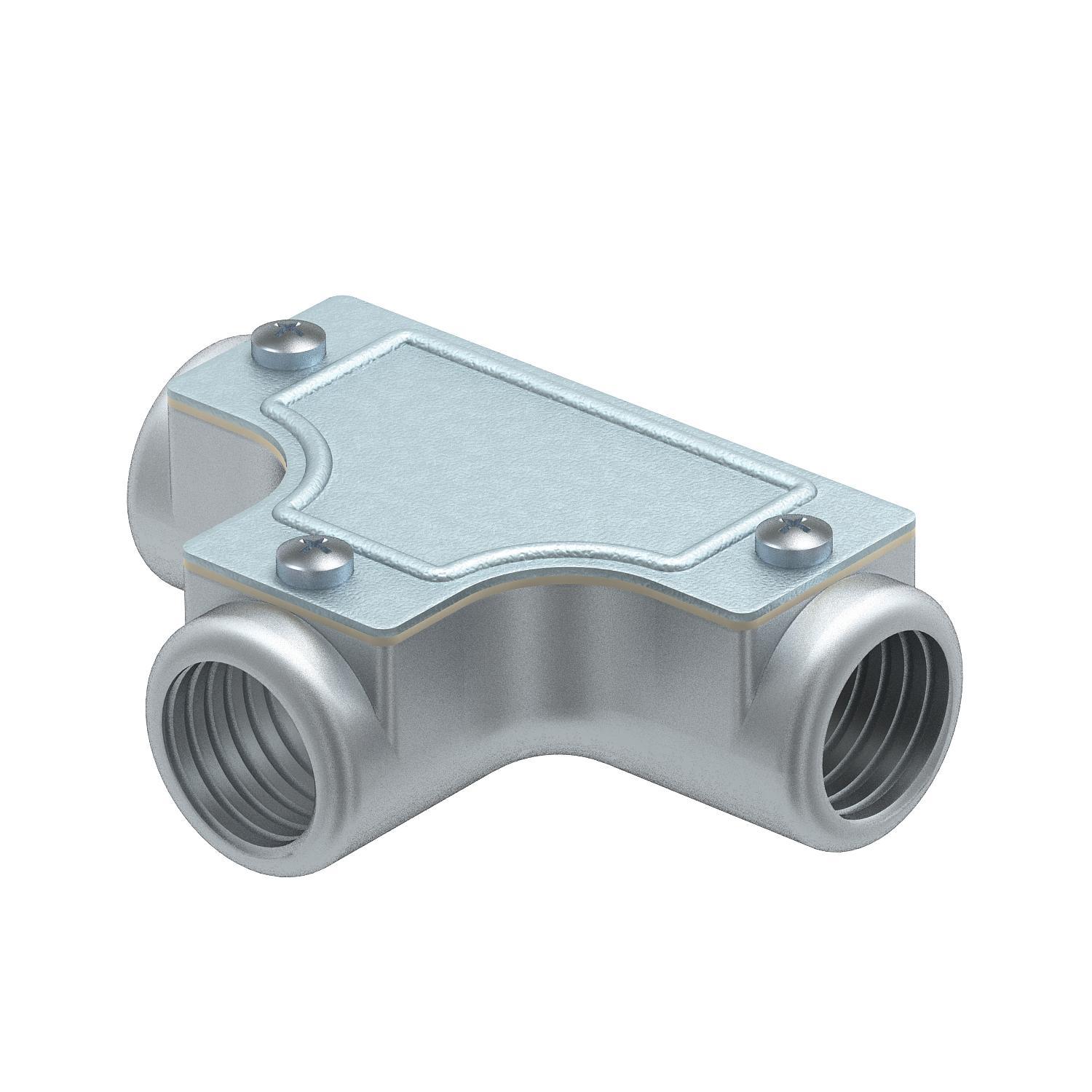

Die-cast aluminium T piece, with internal thread, for mounting in pipe sections as a junction.

Removable cover for easier cable routing and later checking.

Technical data

Technical data

Brushed surface	no
CO2 Footprint (GWP) Cradle-to-Gate	4,2814 kg CO₂e / 1 Piece
Dimension	M40x1,5

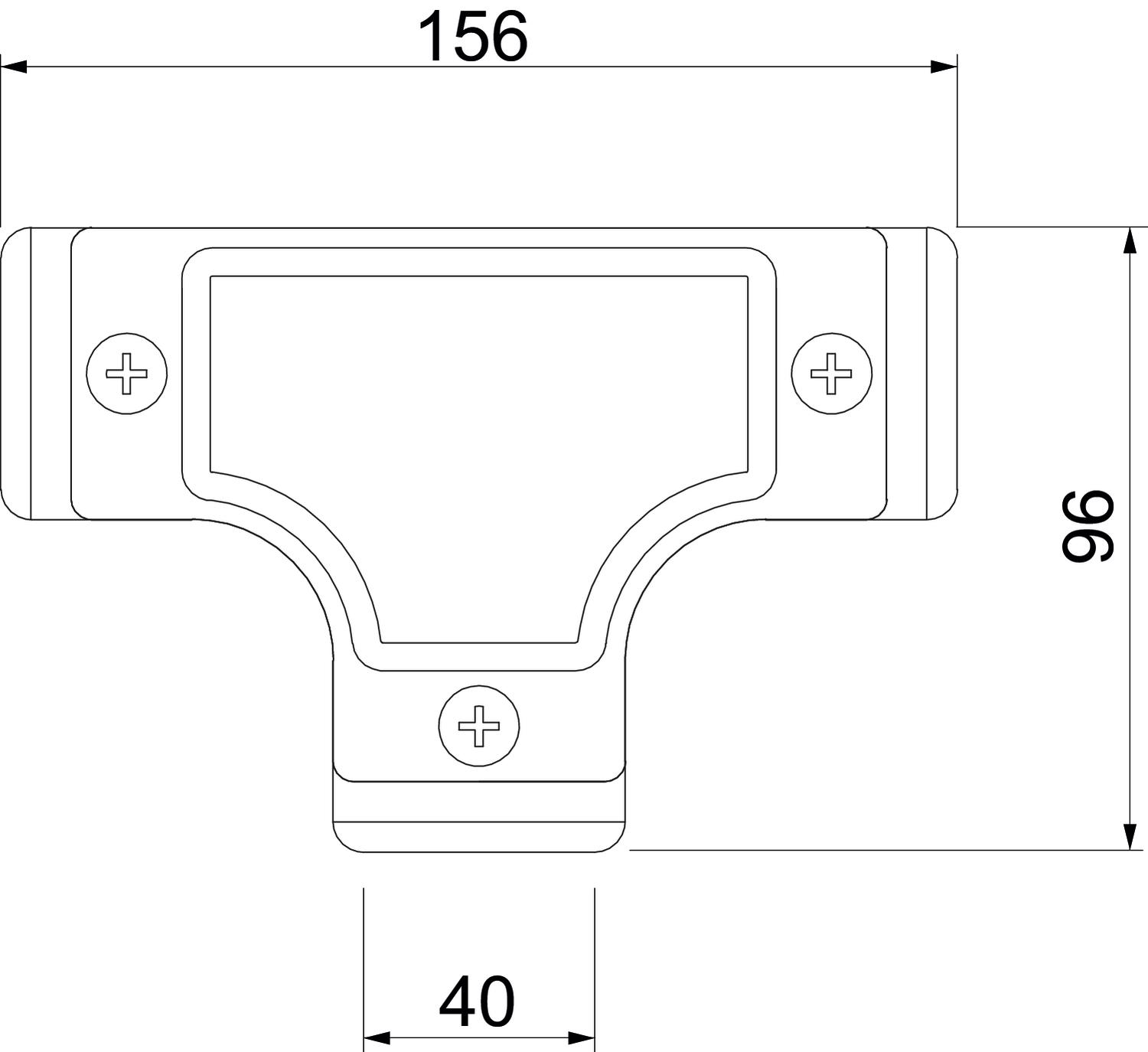

Dimension D	96 mm
Dimension L	156 mm
Dimension m (mm)	M40x1,5
Halogen-free	no

Length	156 mm
Material	Cast aluminium
Polished surface	no
Size	40
Thread	M40x1,5
Version for	Thread

All types

All types

Types	Dimension D	Dimension L	Size	Item no.
SKTM16W ALU	47.5 mm	72 mm	16	2047604
SKTM20W ALU	65 mm	102 mm	20	2047605
SKTM25W ALU	75 mm	115 mm	25	2047606
SKTM32W ALU	96 mm	156 mm	32	2047607
SKTM40W ALU	96 mm	156 mm	40	2047608
SKTM50W ALU	124.5 mm	194 mm	50	2047609
