Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT 28 | 34 | 3

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186529 | EAN 4012196849956

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

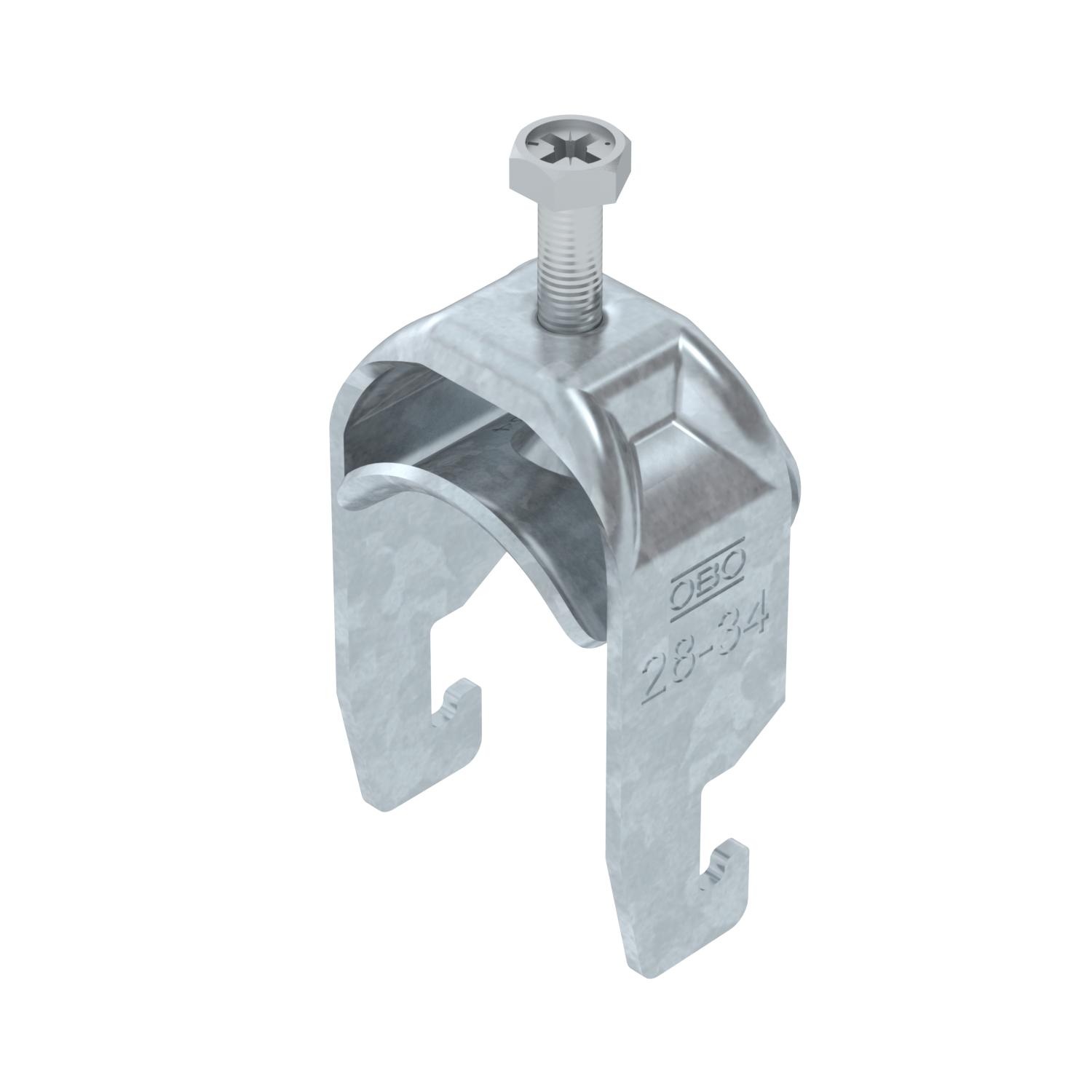

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.

Technical data

Technical data

Clamping range D, max.	34 mm
Clamping range D, min.	28 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,1597 kg CO₂e / 1 Piece

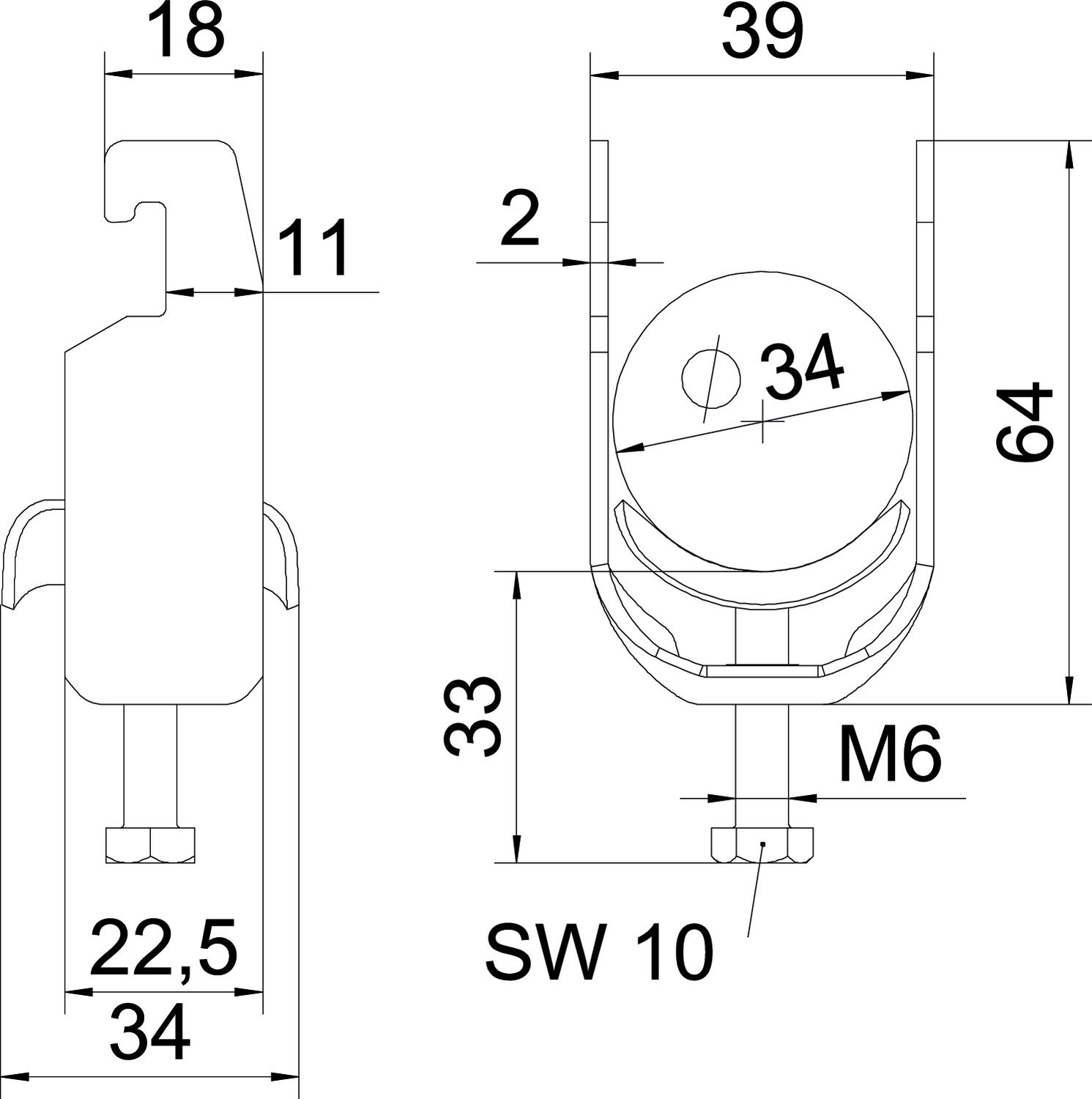

Dimension	28-34mm
Dimension A	22,5 mm
Dimension B	39 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	64 mm
Dimension L	34 mm
Dimension t	2 mm
For pipe diameter, max.	34 mm
For pipe diameter, min.	28 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Height	64 mm

Length	22,5 mm
Length of external dimensions	34 mm
Maintain electrical functions	yes
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	39 mm
With counter-trough	no
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.
BS-U1-M-12 FT	8 mm	12 mm	3 Nm	1186502
BS-U1-M-16 FT	12 mm	16 mm	3 Nm	1186509
BS-U1-M-22 FT	16 mm	22 mm	3 Nm	1186516
BS-U1-M-28 FT	22 mm	28 mm	3 Nm	1186522
BS-U1-M-34 FT	28 mm	34 mm	3 Nm	1186529
BS-U1-M-40 FT	34 mm	40 mm	3 Nm	1186536
BS-U1-M-46 FT	40 mm	46 mm	5 Nm	1186542
BS-U1-M-52 FT	46 mm	52 mm	5 Nm	1186549
BS-U1-M-58 FT	52 mm	58 mm	5 Nm	1186556
BS-U1-M-64 FT	58 mm	64 mm	5 Nm	1186562
BS-U1-M-70 FT	64 mm	70 mm	5 Nm	1186569
BS-U1-M-76 FT	70 mm	76 mm	5 Nm	1186576
BS-U1-M-82 FT	76 mm	82 mm	5 Nm	1186582
BS-U1-M-90 FT	82 mm	90 mm	5 Nm	1186589
BS-U1-M-100 FT	90 mm	100 mm	5 Nm	1186597
