Chequer plate cover DBKR 3000 | 100 | 3.3
morepic-1 morepic-2

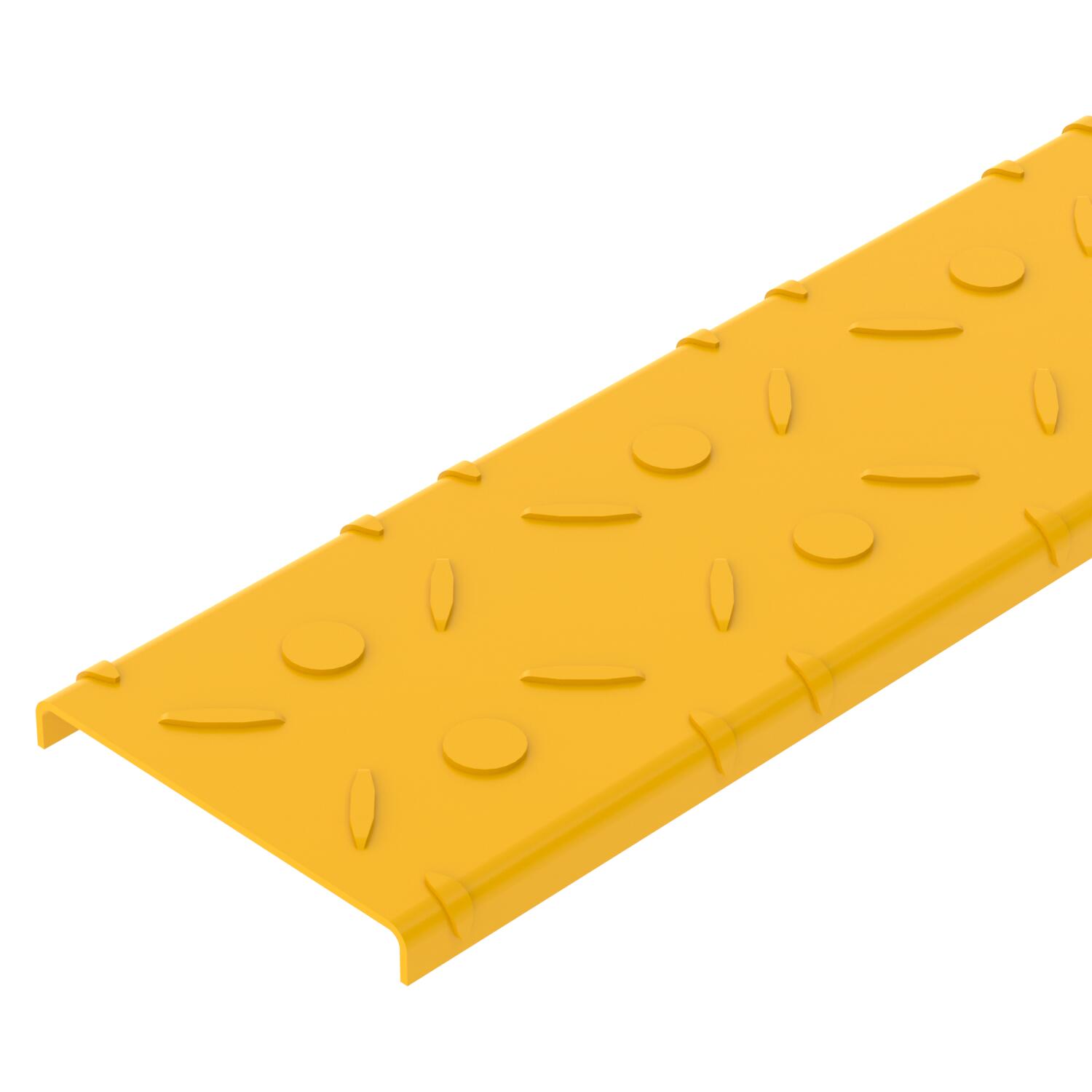

Chequer plate cover DBKR

Item no. 6049095 | EAN 4012197307981

3000 mm
3.3 mm
Product description
Product description
Chequer plate cover for the walkable cable tray system, type BKR.

The cover thickness is comprised of 2.0 mm of strip-galvanised sheet steel and a 1.3 mm chequer height.

Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.
When using covers outdoors, additional measures against the influence of wind must be taken.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour signal yellow; RAL 1003

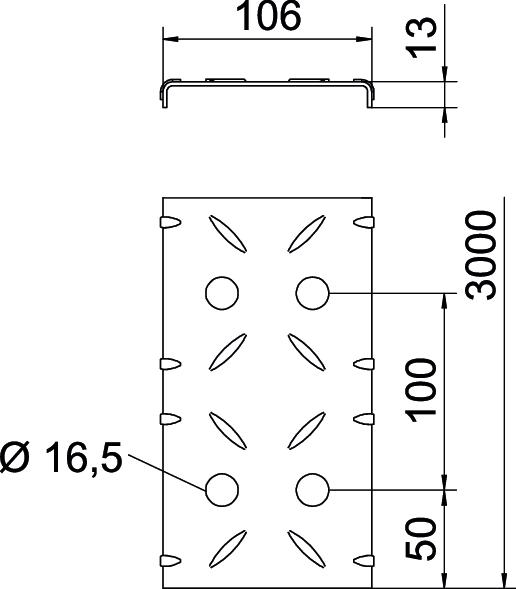

Dimension 100x3000
Dimension B 100 mm
Dimension b 50 mm
Dimension L 3000 mm
Fastening type On top
Height 13 mm
Length 3000 mm
Maintain electrical functions no
Material Steel
Plate thickness 3,3 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface PES50-UDS-S - Polyester/Epoxid/Sichtfläche beschichtet–Ultradünnschicht
Width 100 mm
All types

All types

Types Length Width Plate thickness Item no.
DBKR 100 FSK SGB 3000 mm 100 mm 3.3 mm 6049095
DBKR 200 FSK SGB 3000 mm 200 mm 3.3 mm 6049097
DBKR 300 FSK SGB 3000 mm 300 mm 3.3 mm 6049099
DBKR 400 FSK SGB 3000 mm 400 mm 3.3 mm 6049101
DBKR 500 FSK SGB 3000 mm 500 mm 3.3 mm 6049103
DBKR 600 FSK SGB 3000 mm 600 mm 3.3 mm 6049105
