Cap nut cable gland, PG thread, long, nickel-plated | | Pg 29 | no |

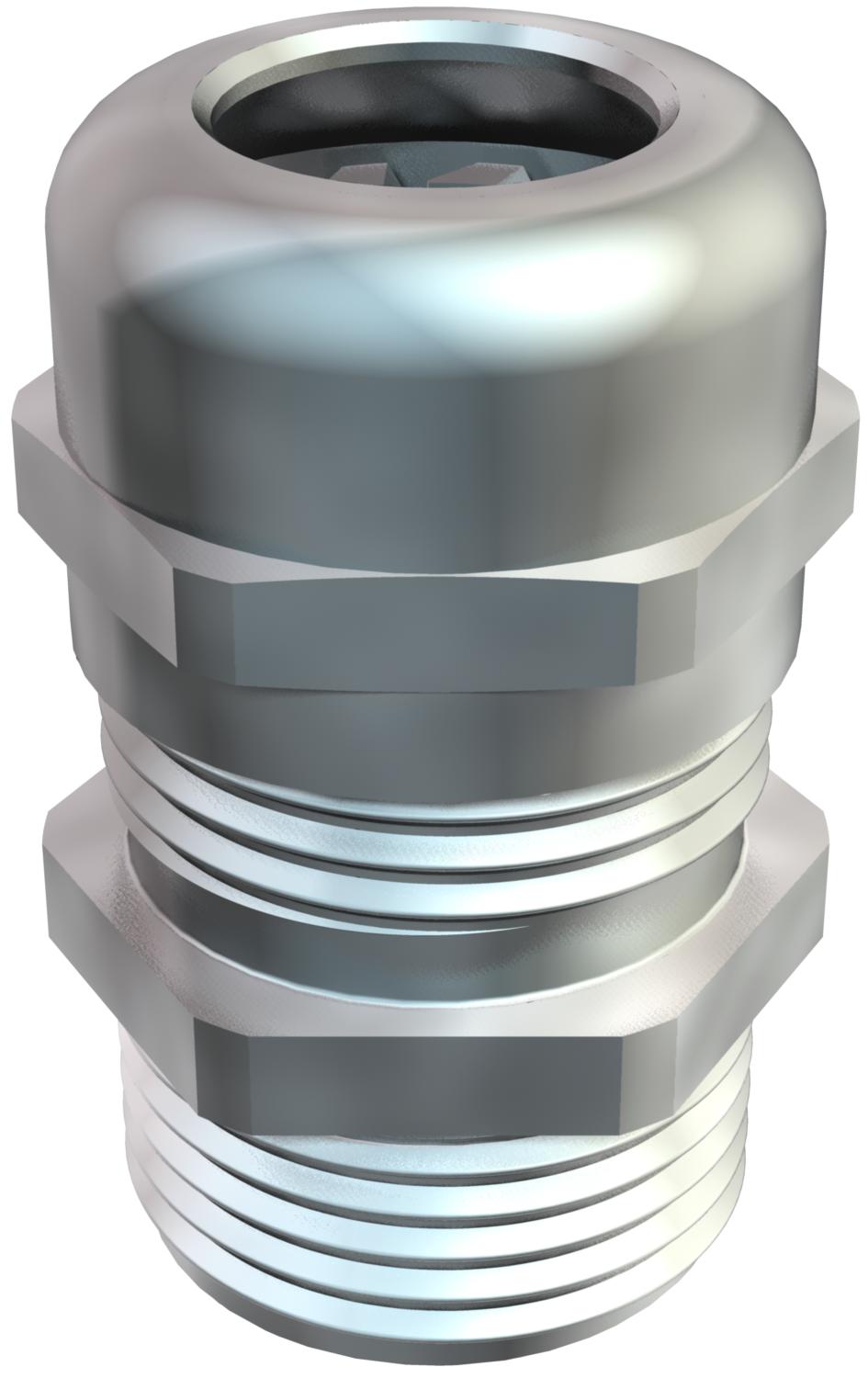

Cap nut cable gland, PG thread, long, nickel-plated

Item no. 2085798 | EAN 4012195841098

Item no. / Types

Thread

Sealing insert, multiple	no

Product description

Product description

Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with long Pg connection thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.

Polyamide terminal insert.

Sealing ring of chloroprene/nitrile rubber.

O ring pre-mounted on connection thread.

Protection rating IP 68 at 5 bar: 1 hr.

Tested to DIN EN 62444.

With long connection thread.

* Prices according to DEL notation.

Technical data

Technical data

Bend protection	no
CO2 Footprint (GWP) Cradle-to-Gate	0,4261 kg CO₂e / 1 Piece

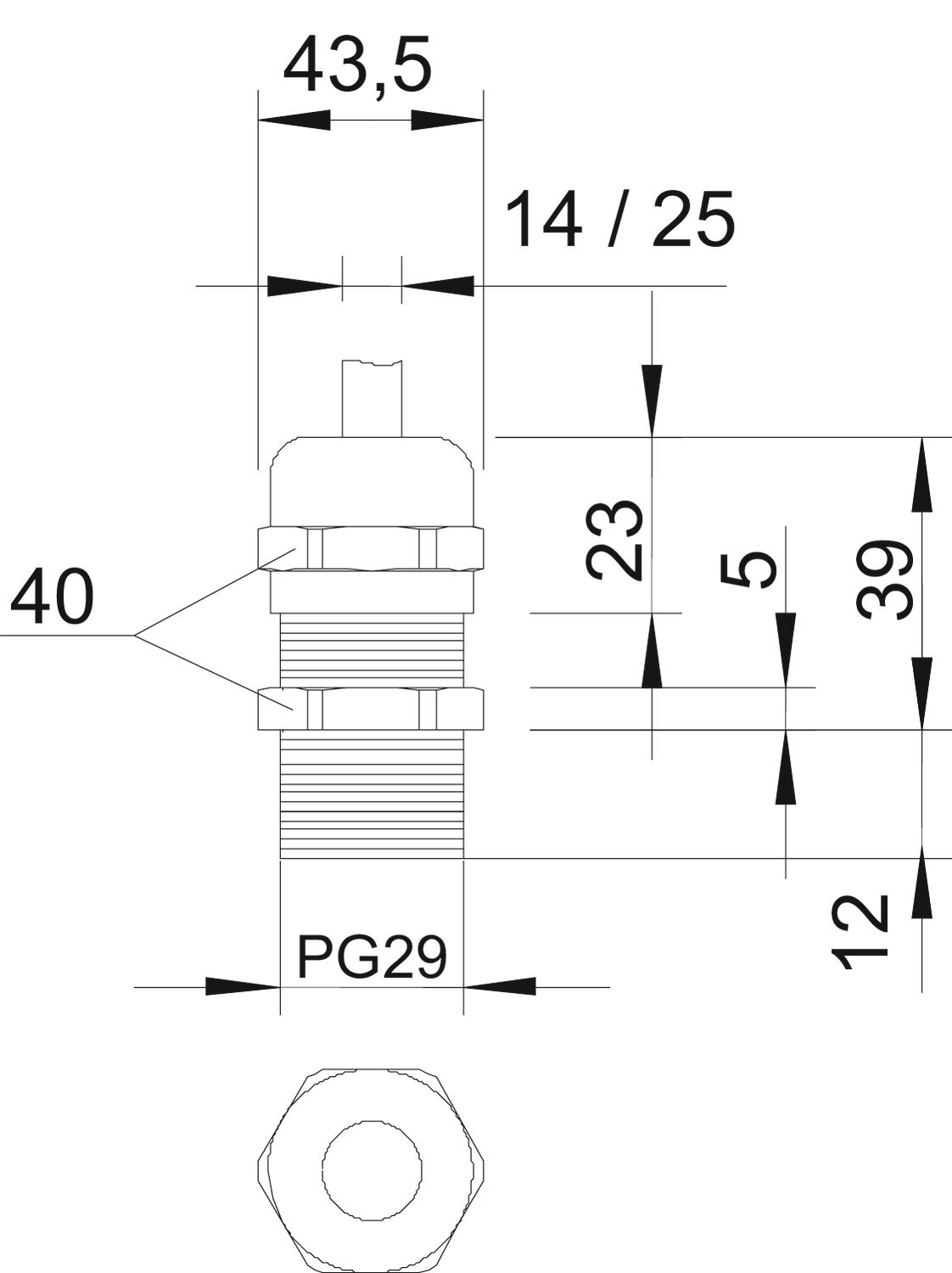

Dimension	PG29
Dimension E	43,5 mm
Dimension L max.	39 mm
Dimension L1	12 mm
Dimension L2	5 mm
Dimension L3	23 mm
explosion-proof	no
Fibre-glass reinforced	no
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	no
Impact-resistant	no
Material	Brass

Nominal thread size	29
Permitted temperature range, max.	100 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP68
Sealing area D, max.	25 mm
Sealing area D, min.	18 mm
Sealing insert, multiple	no
Splittable gland	no
Strain relief option	yes
Surface	Nickel-plated
Thread	Pg 29
Thread length	12 mm
Thread type	PG
Type of seal	Sealing ring
Version for	Straight
WAF	40
With locknut	no

All types

All types

Types	Thread	Sealing insert, multiple	Item no.
V-TEC L PG9 MS	Pg 9	no	2085739
V-TEC L PG11 MS	Pg 11	no	2085747
V-TEC L PG13 MS	Pg 13,5	no	2085755
V-TEC L PG16 MS	Pg 16	no	2085763
V-TEC L PG21 MS	Pg 21	no	2085771
V-TEC L PG29 MS	Pg 29	no	2085798
V-TEC L PG48 MS	Pg 48	no	2085836
