Cable trunking, type LKM 60060 2000 | 60 | 64 | | Strip galvanized | Steel

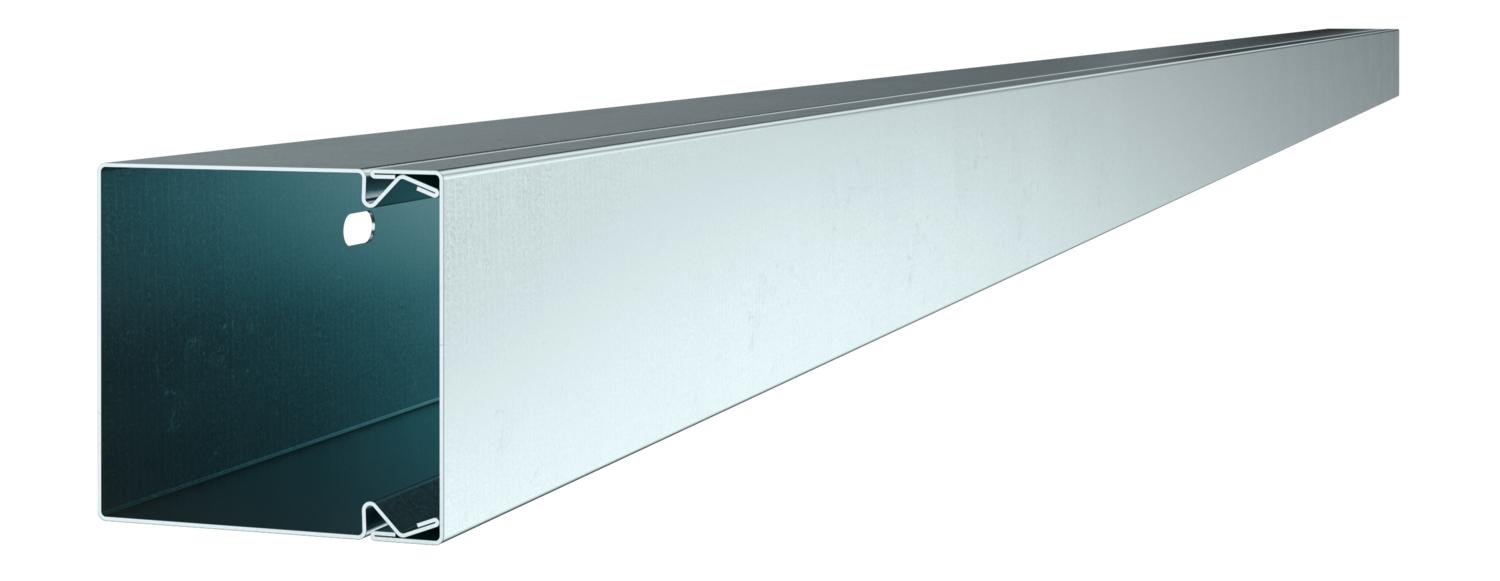

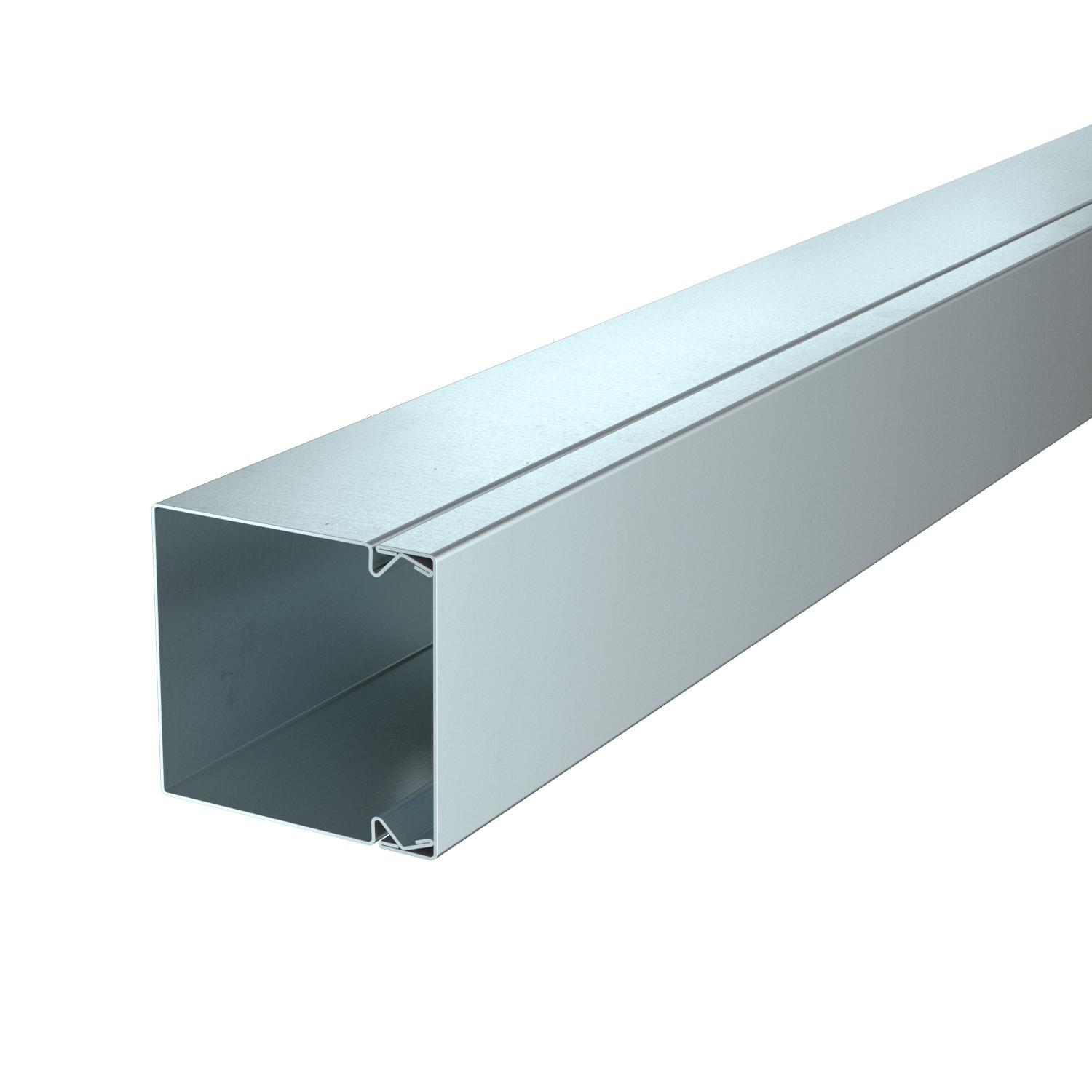

Cable trunking, type LKM 60060

Item no. 6247091 | EAN 4012196977369

Item no. / Types

Length	2000 mm

Width	60 mm

Height	64 mm

Surface

Material	Steel

Product description

Product description

Trunking cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids. Note: LKM 60060 has no loop perforation in the base, a partition cannot be installed.

Technical data

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	4,1394 kg CO₂e / 1 Meter
Colour	zinc
Delivery on a roll	no

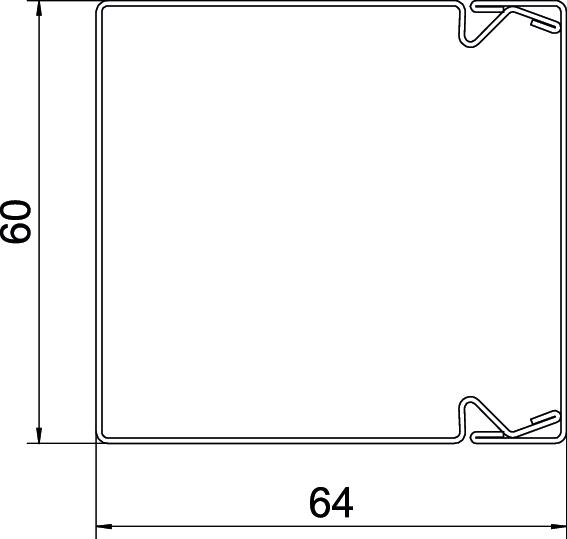

Dimension	60x60x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	64 mm
Length	2000 mm
Maintain electrical functions	no
Material	Steel

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	20
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	20
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	16
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized
Transparent	no
Usable cross-section	3551 mm²
Version, cable trunking cover	Loose
Width	60 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.
LKM60060FS	2000 mm	60 mm	64 mm	Strip galvanized	Steel	6247091
LKM60060RW	2000 mm	60 mm	64 mm	Strip galvanized / plastic coated	Steel	6248608

Accessories

System accessories

Products	Types	Item no.
Joint connector LKM SV60	LKM SV60	6247466

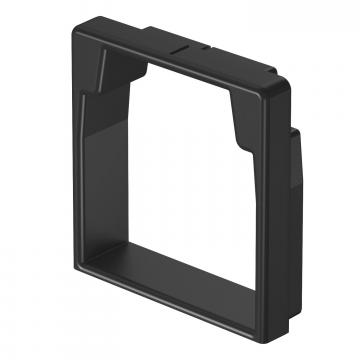

Edge protection ring KSR 60060, for LKM cable trunking type 60060	LKM KSR60060	6249752

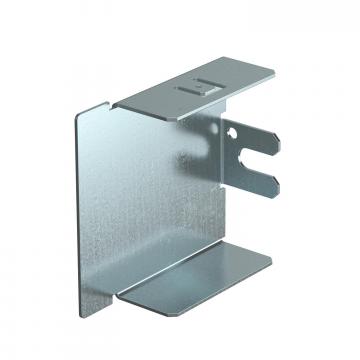

End piece, for cable trunking type LKM 60060	LKM E60060FS	6248284

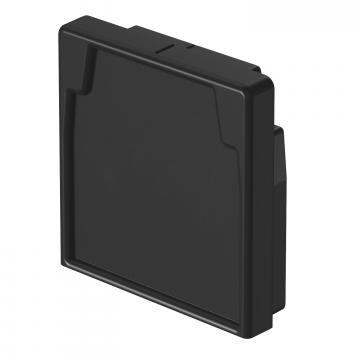

End piece, for cable trunking type 60060	LKM EK60060	6249782

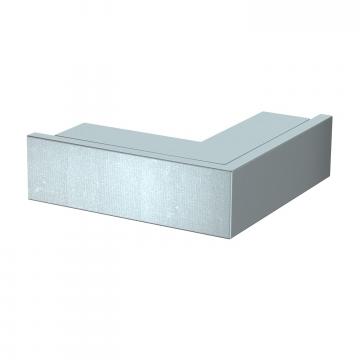

External corner, for cable trunking type LKM 60060	LKM A60060FS	6248047

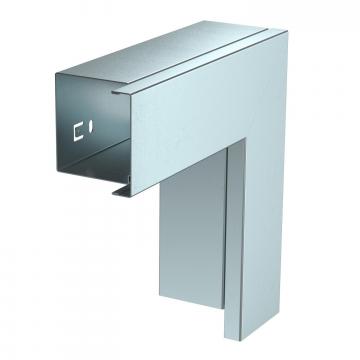

Flat angle, for cable trunking type LKM 60060	LKM F60060FS	6247989

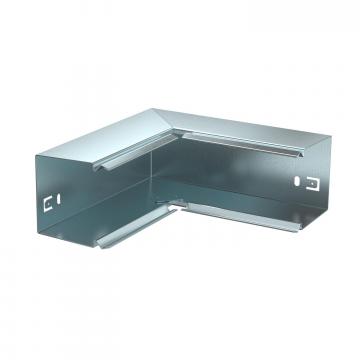

Internal corner, for cable trunking type LKM 60060	LKM I60060FS	6248128

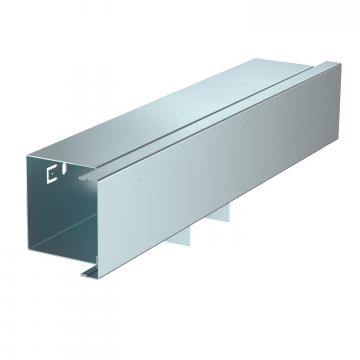

T piece, for cable trunking type LKM 60060	LKM T60060FS	6248187

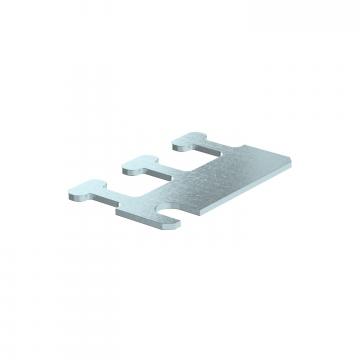

LKM cable bracket, trunking width 60 mm	LKM Z60	6249906
