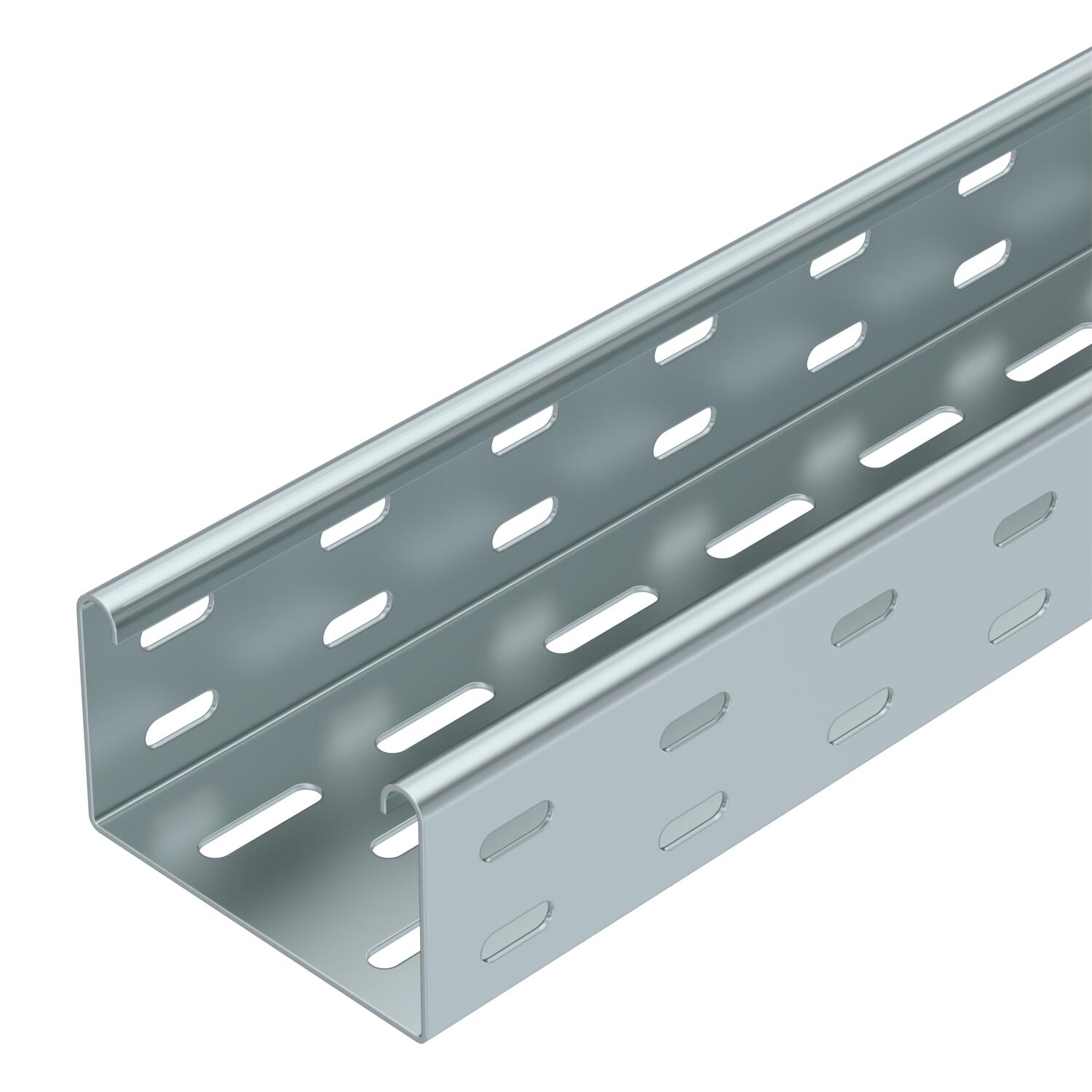

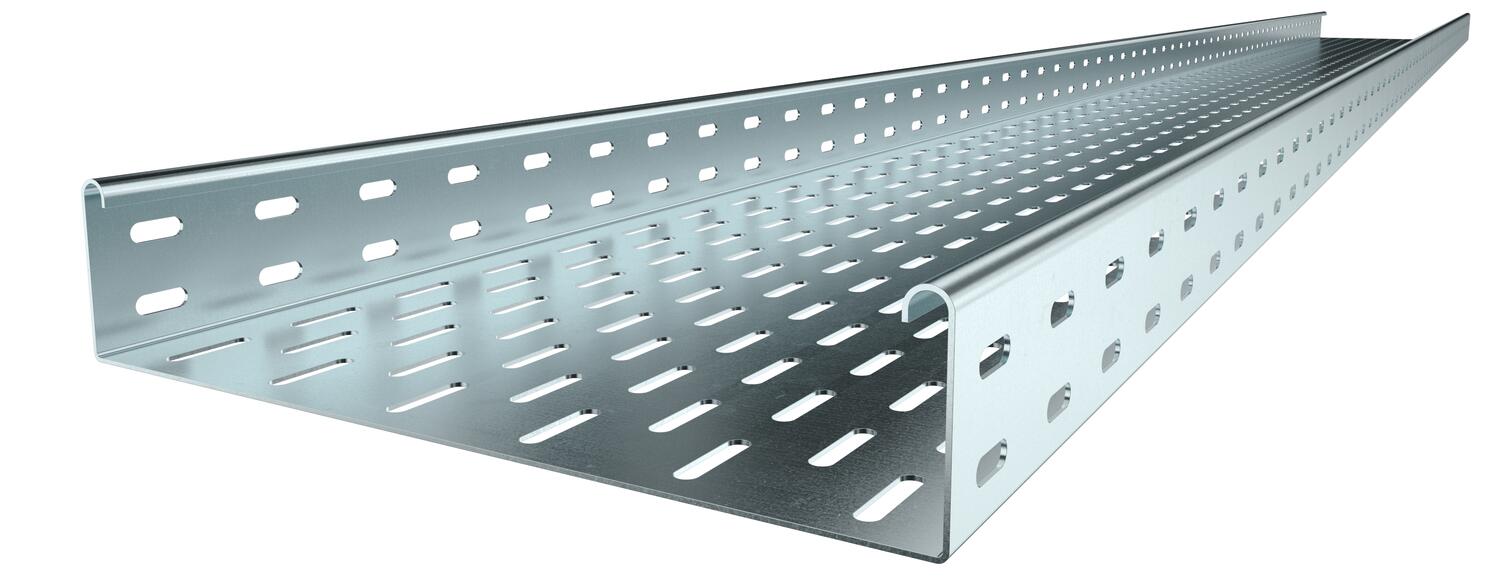

Cable tray SKS 60 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions

Material	Steel

Surface	Strip galvanized

Product description

Product description

SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Base perforation	7 x 32
CO2 Footprint (GWP) Cradle-to-Gate	6,8263 kg CO₂e / 1 Meter
Colour	zinc
Connector version	Supplied connectors

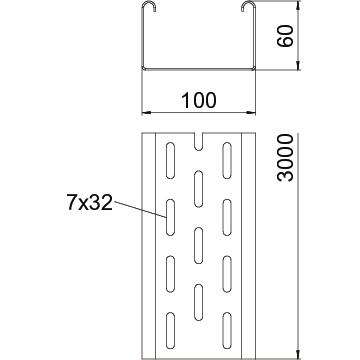

Dimension	60 x 100
Dimension	60x100x3000
Dimension B	100 mm
Fire protection	Maintenance of electrical function of standard support structure
Height	60 mm
Height	2 in
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	yes
Maß W	100 mm
Material	Steel
Mounting perforation in base	yes

NATO hole pattern	no
Plate thickness	0,06 in
Plate thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	yes

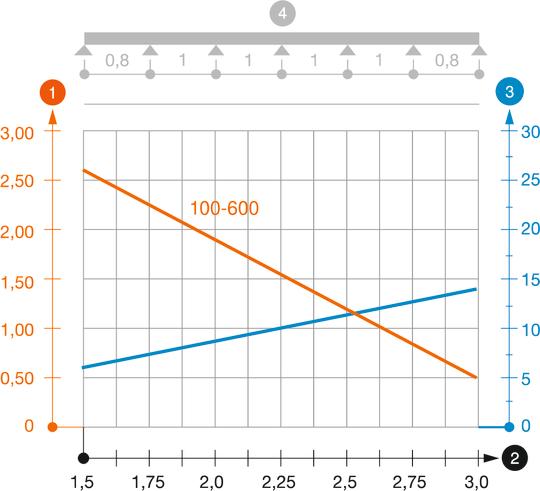

Support spacing 1.5 m	2,65 kN/m
Support spacing 2.0 m	1,8 kN/m
Support spacing 2.5 m	1,15 kN/m
Support spacing 3.0 m	0,5 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	5800 mm²
Usable cross-section	58 cm²
Wide-span version	no
Width	6 in
Width	100 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.
SKS 610 FS	3000 mm	100 mm	1.5 mm	yes	Steel	Strip galvanized	6056105
SKS 615 FS	3000 mm	150 mm	1.5 mm	yes	Steel	Strip galvanized	6056156
SKS 620 FS	3000 mm	200 mm	1.5 mm	yes	Steel	Strip galvanized	6056202
SKS 630 FS	3000 mm	300 mm	1.5 mm	yes	Steel	Strip galvanized	6056296
SKS 640 FS	3000 mm	400 mm	1.5 mm	no	Steel	Strip galvanized	6056407
SKS 650 FS	3000 mm	500 mm	1.5 mm	no	Steel	Strip galvanized	6056504
SKS 660 FS	3000 mm	600 mm	1.5 mm	no	Steel	Strip galvanized	6056601

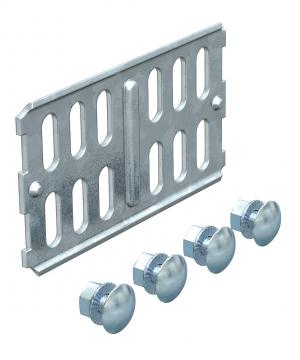

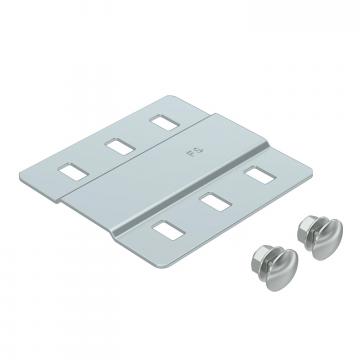

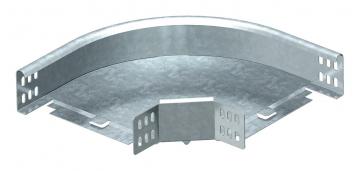

Accessories
