Cable tray RKS-Magic® 60 FS black 3050 | 400 | 60 | 0.9 | no | Jet black; RAL 9005 | Steel | PES135 - Polyester

Cable tray RKS-Magic® 60 FS black

Item no. 6048269 | EAN 4012196704583

Item no. / Types

Length	3050 mm

Width

Height	60 mm

Plate thickness

Maintain electrical functions	no

Colour	Jet black; RAL 9005

Material	Steel

Surface	PES135 - Polyester

Product description

Product description

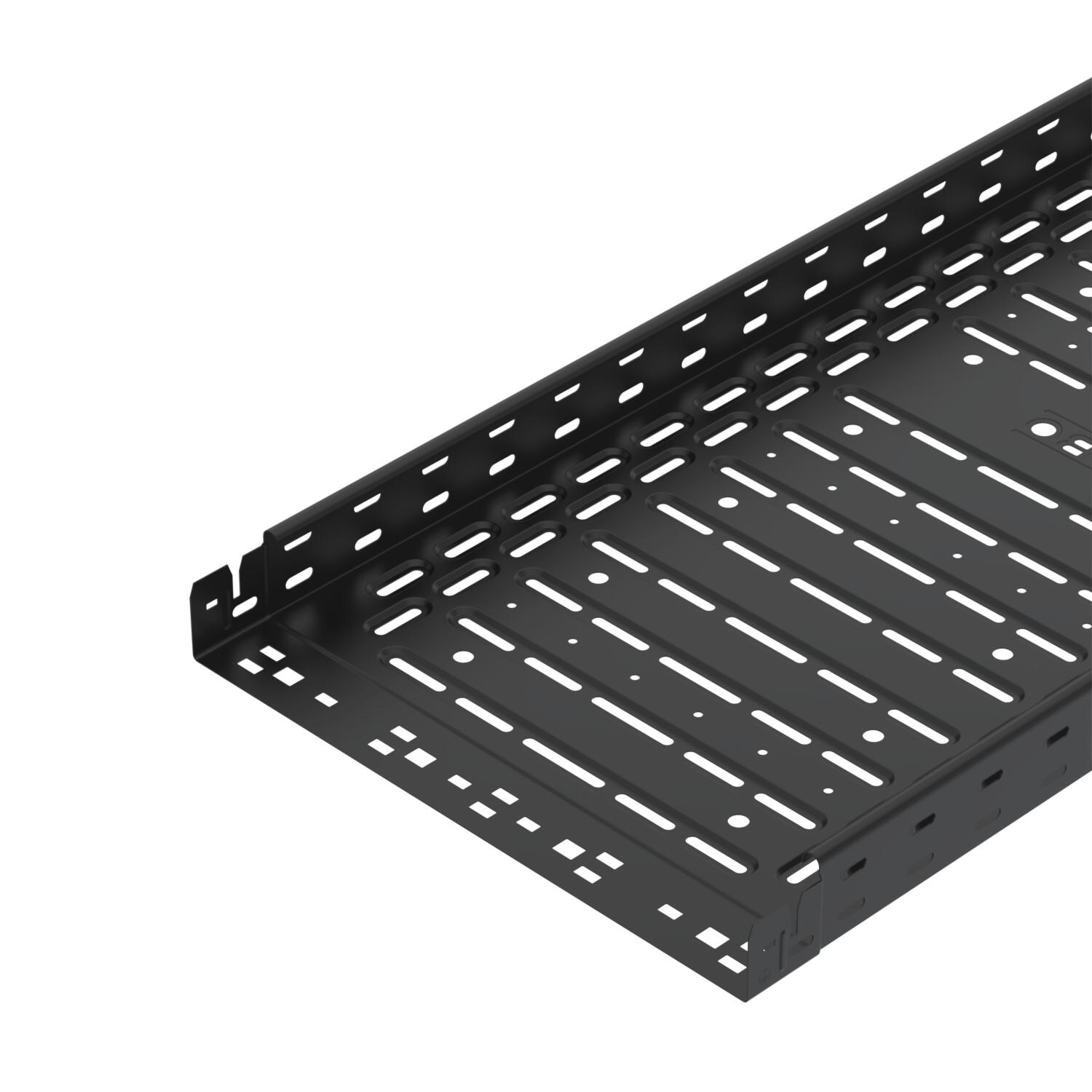

Cable tray with integrated quick-fastening system. Strip-galvanised surface, visible areas powder-coated in jet black (RAL 9005). Continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components. With 11 mm perforation in the base for direct threaded rod suspension. Usable length 3,000 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	8,4281 kg CO₂e / 1 Meter
Colour	Jet black; RAL 9005
Connector version	Integrated connector

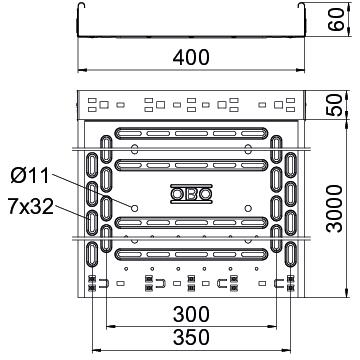

Dimension	60x400x3050
Dimension	60 x 400
Dimension B	400 mm
Dimension x	300 mm
Dimension y	350 mm
Height	60 mm
Length	3050 mm
Maintain electrical functions	no
Maß W	400 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	0,9 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	2,1 kN/m
Support spacing 1.5 m	1,35 kN/m
Support spacing 2.0 m	0,8 kN/m
Support spacing 2.5 m	0,6 kN/m
Surface	PES135 - Polyester
Type of connector, cable support system	Click fastening
Usable cross-section	238 cm²
Usable cross-section	23800 mm²
Usable length	3000 mm
Wide-span version	no
Width	400 mm
With cover	no

All types

All types

Types	Length	Width	Height	Plate thickness	Maintain electrical functions	Colour	Material	Surface	Item no.
RKSM 610 FSK SW	3050 mm	100 mm	60 mm	0.75 mm	no	Jet black; RAL 9005	Steel	PES135 - Polyester	6048239
RKSM 620 FSK SW	3050 mm	200 mm	60 mm	0.75 mm	no	Jet black; RAL 9005	Steel	PES135 - Polyester	6048253
RKSM 630 FSK SW	3050 mm	300 mm	60 mm	0.75 mm	no	Jet black; RAL 9005	Steel	PES135 - Polyester	6048265
RKSM 640 FSK SW	3050 mm	400 mm	60 mm	0.9 mm	no	Jet black; RAL 9005	Steel	PES135 - Polyester	6048269

Accessories

System accessories

Products	Types	Item no.
90° bend 60, black	RB 90 640 FSK SW	6043266
Add-on tee 60, black	RAA 640 FSK SW	7121866
Barrier strip 45 FSK, black	TSG 45 FSK SW	6479451

Mounting accessories

Products	Types	Item no.
Straight connector 60 FSK, black	RLVK 60 FSK SW	6067097
Straight and angle connector 60 FSK, black	RWVL 60 FSK SW	6067624
Adjustable connector 60 FSK, black	RGV 60 FSK SW	7082759
Wall and support bracket AW 15, black	AW 15 41 FTK SW	6421210
Suspension bracket, black	AHB 400 FTK SW	6363879
Centre suspension for cable tray, side height 60 mm, black	MAH 60 400 FSKSW	6358746
