90° bend 60, black
Item no. 6043266 | EAN 4012197442361
- Product description
-

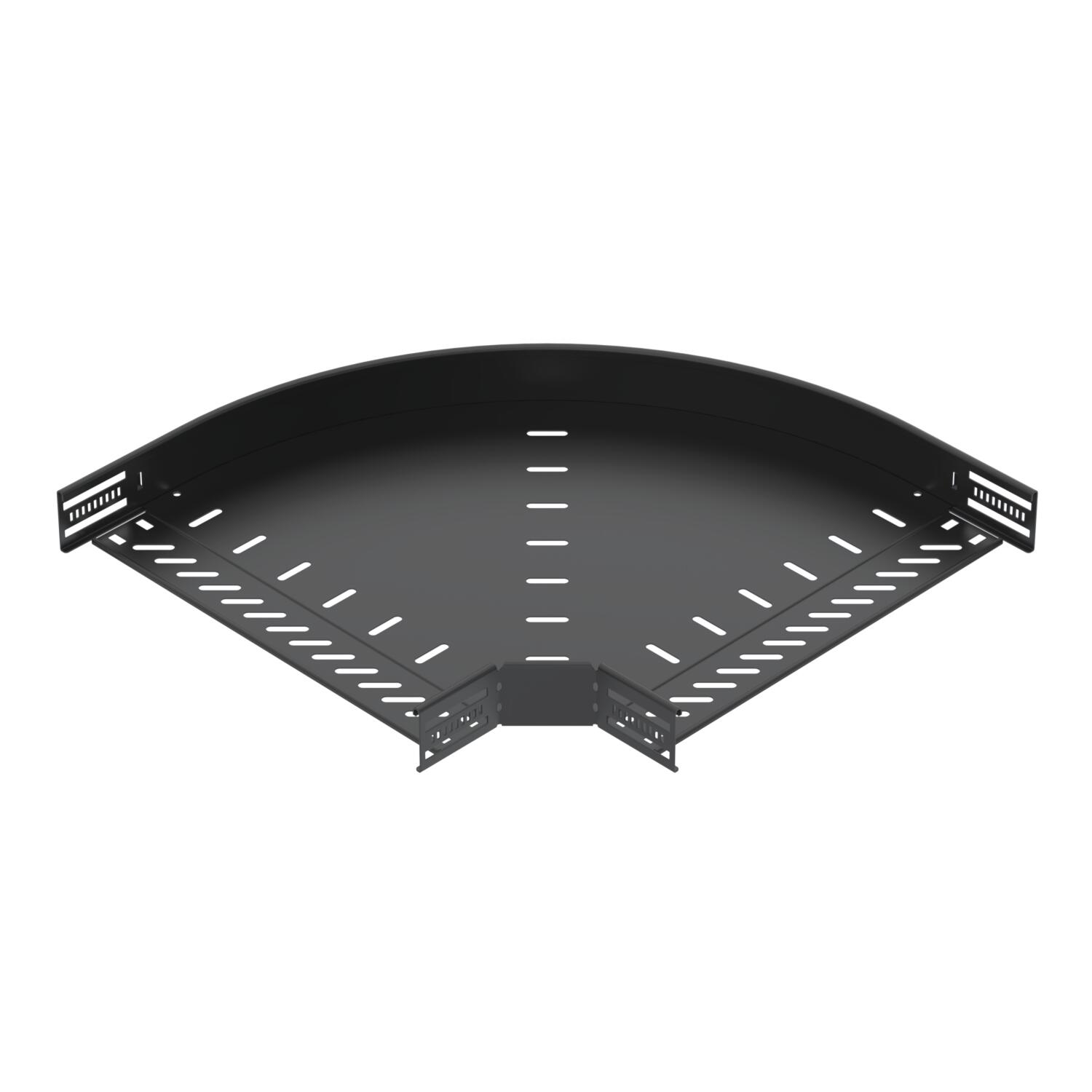

Product description90° bend, horizontal, fitting for all cable tray types of 60 mm side height. Black coated.
-
- Technical data
-
Technical data

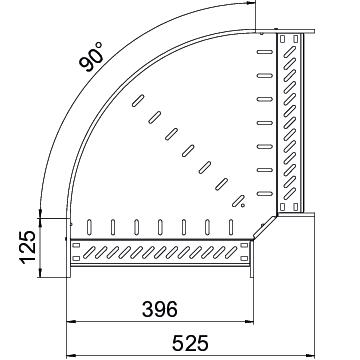

Bend (angle) 90° Change of direction Horizontal Colour Jet black; RAL 9005 Connector version Integrated connector Dimension 60x400 Dimension B 400 mm Height 60 mm Material Steel Material thickness, floor plate 1 mm Mounting perforation in base no Rail thickness 1,25 mm Recommended quantity of bolts 14 St. Rustproof steel, pickled no Side perforation no Surface PES135 - Polyester Type Bend, rigid Wide-span version no Width 400 mm With cover no - All types
-
System accessories
Products Types Item no.
Cable tray RKS-Magic® 60 FS black
RKSM 640 FSK SW 6048269
Cable tray MKS-Magic® 60, unperforated, black
MKSMU 640 FSK SW 6062997 - Downloads
-
Data sheet RB 90 640 FSK SW / 6043266 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RB 90 640 FSK SW / 6043266 , 0.10MB , pdfUK Declaration of Conformity RB 90 640 FSK SW / 6043266 , 0.09MB , pdfREACH Declaration of conformity RB 90 640 FSK SW / 6043266 , 0.12MB , pdfRoHS Declaration of conformity RB 90 640 FSK SW / 6043266 , 0.13MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
