Cable tray RKS-Magic® 60 FS 3050 | 200 | 60 | 0.75 | yes | zinc | Steel | Strip galvanized

Cable tray RKS-Magic® 60 FS

Item no. 6047638 | EAN 4012195391203

Item no. / Types

Length	3050 mm

Width

Height	60 mm

Plate thickness

Maintain electrical functions

Colour	zinc

Material	Steel

Surface	Strip galvanized

Product description

Product description

Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

The perforation for direct threaded rod suspension has a diameter of 11 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Technical data

Base perforation	1
CO2 Footprint (GWP) Cradle-to-Gate	4,4813 kg CO2e / 1 Meter
Colour	zinc
Connector version	Integrated connector
Dimension	60x200x3050
Dimension B	200 mm
Dimension x	100 mm
Dimension y	150 mm
Fire protection	Maintenance of electrical function of cable-specific support structure
Height	2 in
Height	60 mm
Length	3050 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Magnetic shield insulation with cover	50 dB
Magnetic shield insulation without cover	20 dB
Maintain electrical functions	yes
Material	Steel
Mounting perforation in base	yes

NATO hole pattern	no
NEMA load class	8AA
Plate thickness	0,75 mm
Plate thickness	0,03 in
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.0 m	1,2 kN/m
Support spacing 1.5 m	1 kN/m
Support spacing 2.0 m	0,55 kN/m
Support spacing 2.5 m	0,4 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Click fastening
Usable cross-section	11800 mm²
Usable cross-section	118 cm²
Usable length	3000 mm
Wide-span version	no
Width	8 in
Width	200 mm
With cover	no

Technical data

Load diagram, cable tray, type RKSM 60

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Height	Plate thickness	Maintain electrical functions	Colour	Material	Surface	Item no.
RKSM 610 FS	3050 mm	100 mm	60 mm	0.75 mm	yes	zinc	Steel	Strip galvanized	6047611
RKSM 615 FS	3050 mm	150 mm	60 mm	0.75 mm	yes	zinc	Steel	Strip galvanized	6047630
RKSM 620 FS	3050 mm	200 mm	60 mm	0.75 mm	yes	zinc	Steel	Strip galvanized	6047638
RKSM 630 FS	3050 mm	300 mm	60 mm	0.75 mm	yes	zinc	Steel	Strip galvanized	6047654
RKSM 640 FS	3050 mm	400 mm	60 mm	0.9 mm	yes	zinc	Steel	Strip galvanized	6047689
RKSM 650 FS	3050 mm	500 mm	60 mm	0.9 mm	no	zinc	Steel	Strip galvanized	6047719
RKSM 660 FS	3050 mm	600 mm	60 mm	0.9 mm	no	zinc	Steel	Strip galvanized	6047735

Accessories

System accessories

Products	Types	Item no.

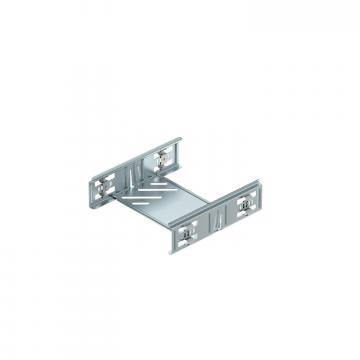

Magic straight connector set FS	KTSMV 620 FS	6068918

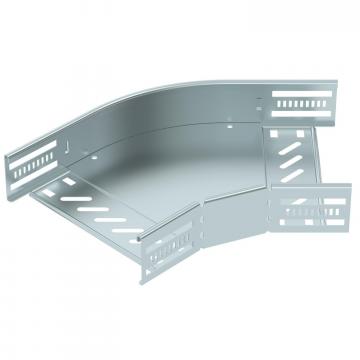

45° bend 60 FS	RB 45 620 FS	6036104

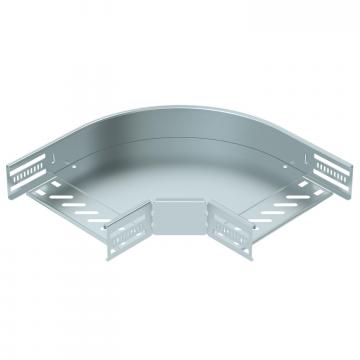

90° bend 60 FS	RB 90 620 FS	6036564
Bend, angle-adjustable, 60 FS	RB W 620 FS	6037104
Add-on tee 60 FS	RAA 620 FS	6042115

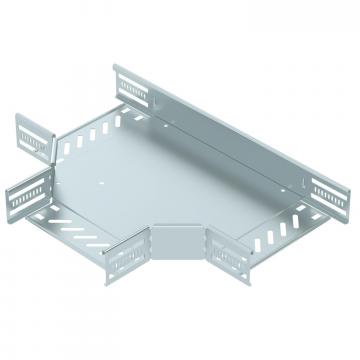

T piece 60 FS	RT 620 FS	6038104

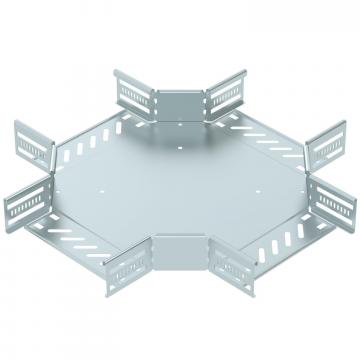

Cross-over 60 FS	RK 620 FS	7027313
Cover with turn buckle FS	DRL 200 FS	6052207
Separating retainer 60 FS	TSG 60 FS	6062068
