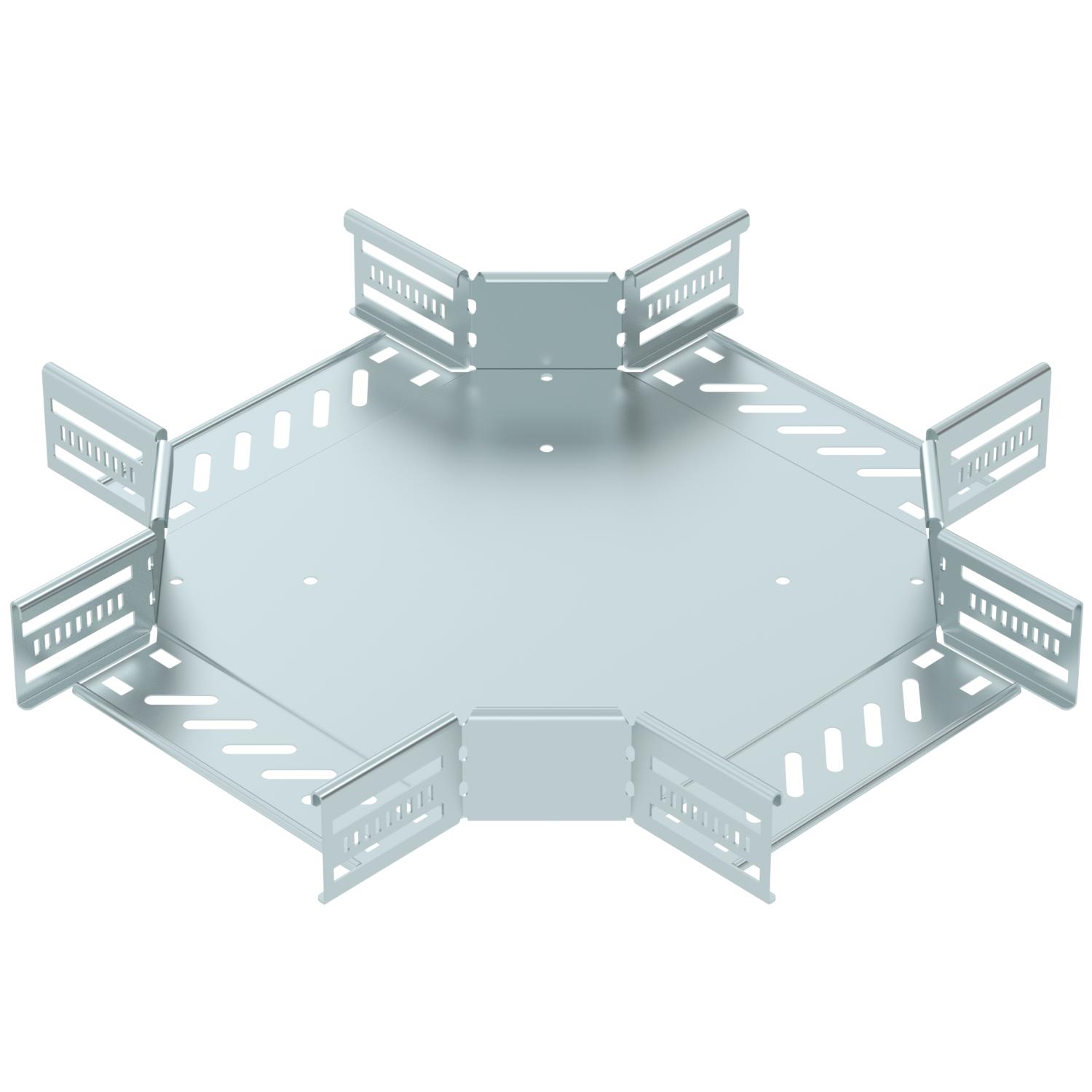

Cross-over 60 FS
Item no. 7027313 | EAN 4012197338480
- Product description
-
Product descriptionCross-over for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data

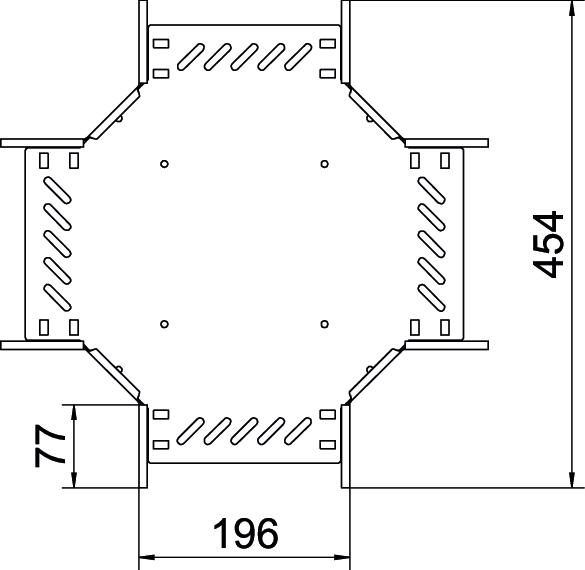

Colour zinc Connector version Integrated connector Dimension 60x200 Dimension B 200 mm Height 60 mm Maintain electrical functions yes Material Steel Material thickness, floor plate 0,8 mm NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 24 St. Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system screwed/clamped Wide-span version no Width 200 mm - All types
-
System accessories
Products Types Item no.

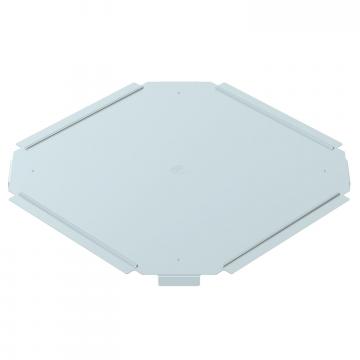

Cover, cross-over DD
RKD 200 DD 7027842 Mounting accessories
Products Types Item no.
Double clamp, fitting mounting A2
DOP A2 6035998 - Downloads
-
Data sheet RK 620 FS / 7027313 , 0.20MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity RK 620 FS / 7027313 , 0.10MB , pdfREACH Declaration of conformity RK 620 FS / 7027313 , 0.12MB , pdfRoHS Declaration of conformity RK 620 FS / 7027313 , 0.13MB , pdfSelection aid Selection aid cable trays, screwable , 2.17MB , pdfSelection aid Selection aid for cable trays, Magic , 0.23MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
