CO2 Footprint (GWP) Cradle-to-Gate	1,6174 kg CO2e / 1 Meter
Colour	zinc
Connector version	Without connectors
Dimension	15x50x2000
Dimension	15 x 50
Dimension B	50 mm
Height	15 mm
Length	2000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes

NATO hole pattern	yes
Plate thickness	1,25 mm
Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.0 m	0,6 kN/m
Support spacing 1.5 m	0,15 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Wide-span version	no
Width	50 mm
With cover	no

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.
MKR 15 050 FT	2000 mm	50 mm	1.25 mm	no	Steel	Hot-dip galvanised	6045057
MKR 15 075 FT	2000 mm	75 mm	1.25 mm	no	Steel	Hot-dip galvanised	6045073
MKR 15 100 FT	2000 mm	100 mm	1.25 mm	no	Steel	Hot-dip galvanised	6045103
MKR 15 125 FT	2000 mm	125 mm	1.25 mm	no	Steel	Hot-dip galvanised	6045138
MKR 15 150 FT	2000 mm	150 mm	1.5 mm	no	Steel	Hot-dip galvanised	6045154
MKR 15 200 FT	2000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6045200
MKR 15 250 FT	2000 mm	250 mm	1.5 mm	no	Steel	Hot-dip galvanised	6045251
MKR 15 300 FT	2000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6045308

Products	Types	Item no.

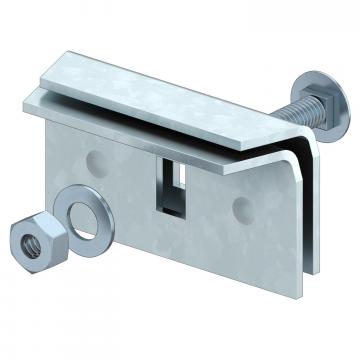

Clamp connector	MKR KV FT	6066143
Tightening strap A2K Jet black	SBR 8 A2K	6490192
Tightening strap FSK, Stone grey	SBR 15 FSK	6490280

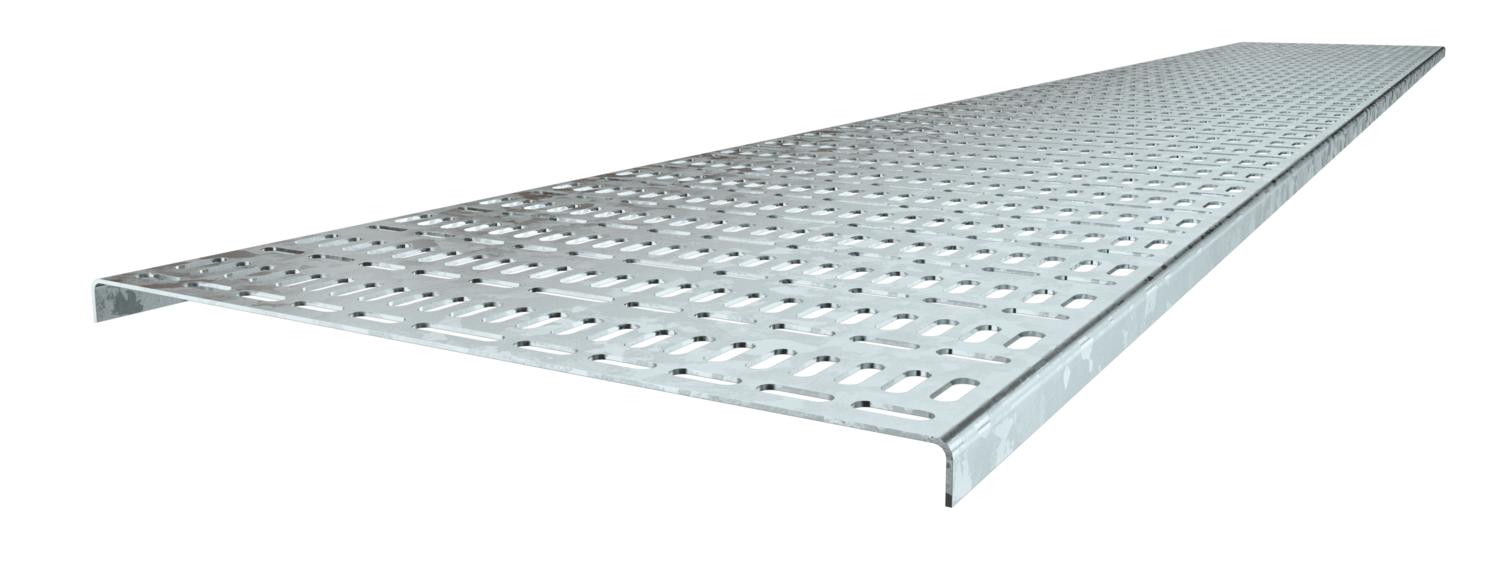

Cable tray, marine standard FT

All types
