Cable tray DKS 60 FT
Item no. 6085326 | EAN 4012196070091
- Product description
-

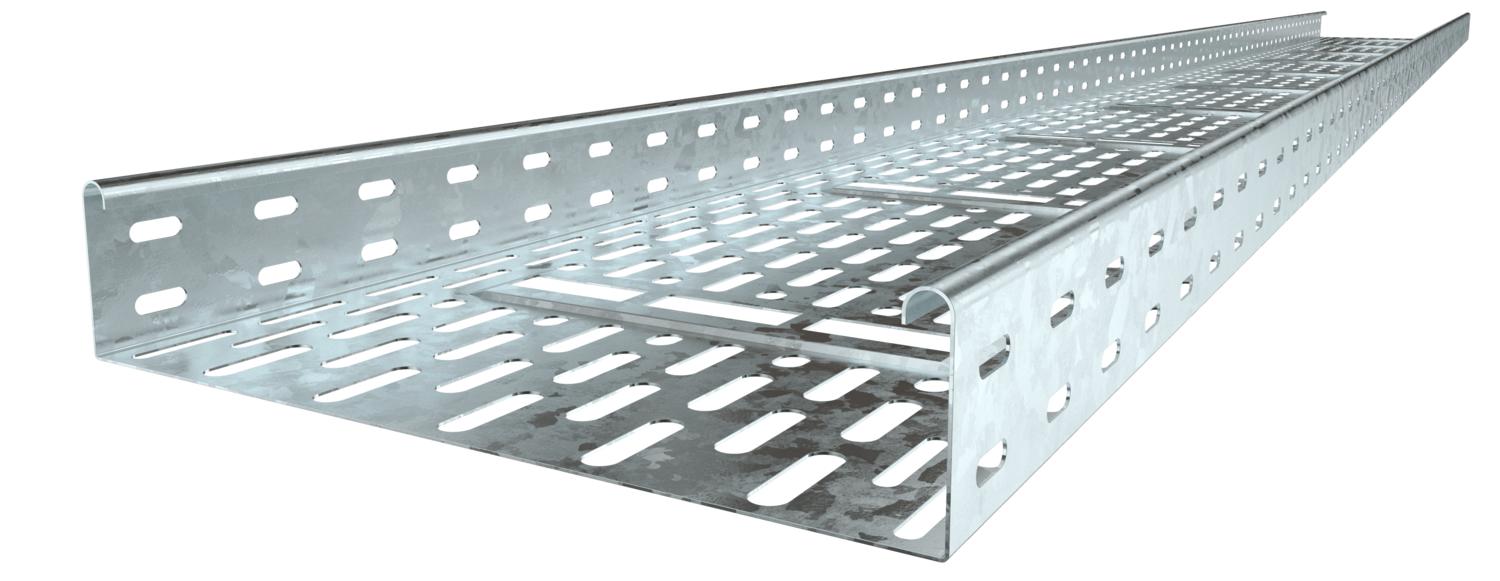

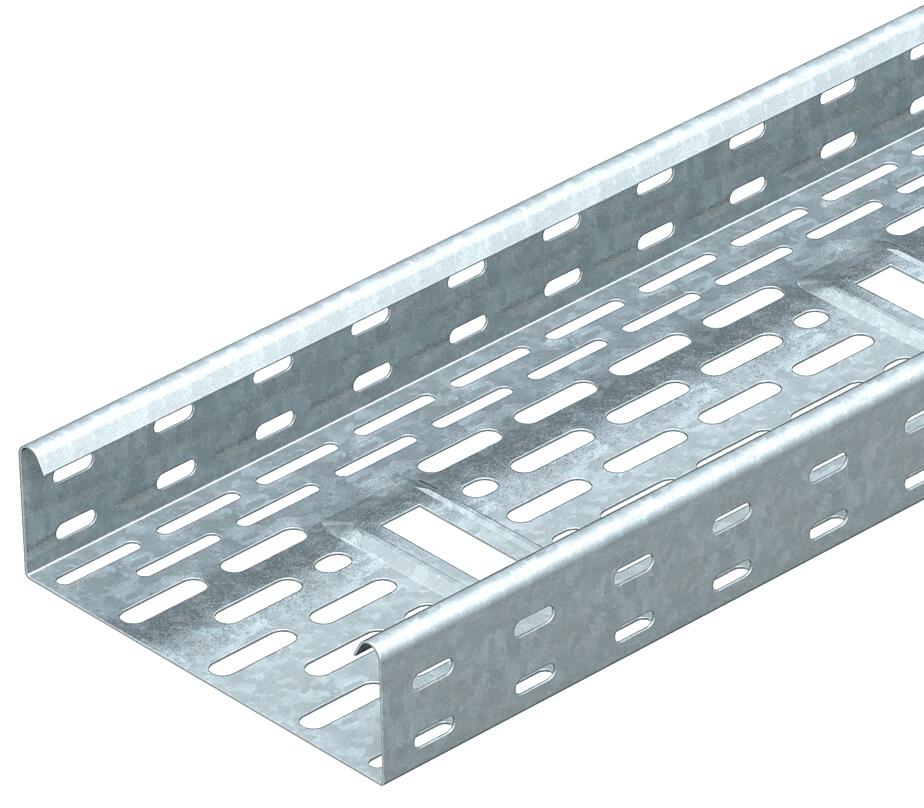

Product descriptionDKS 60 = perforated cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data

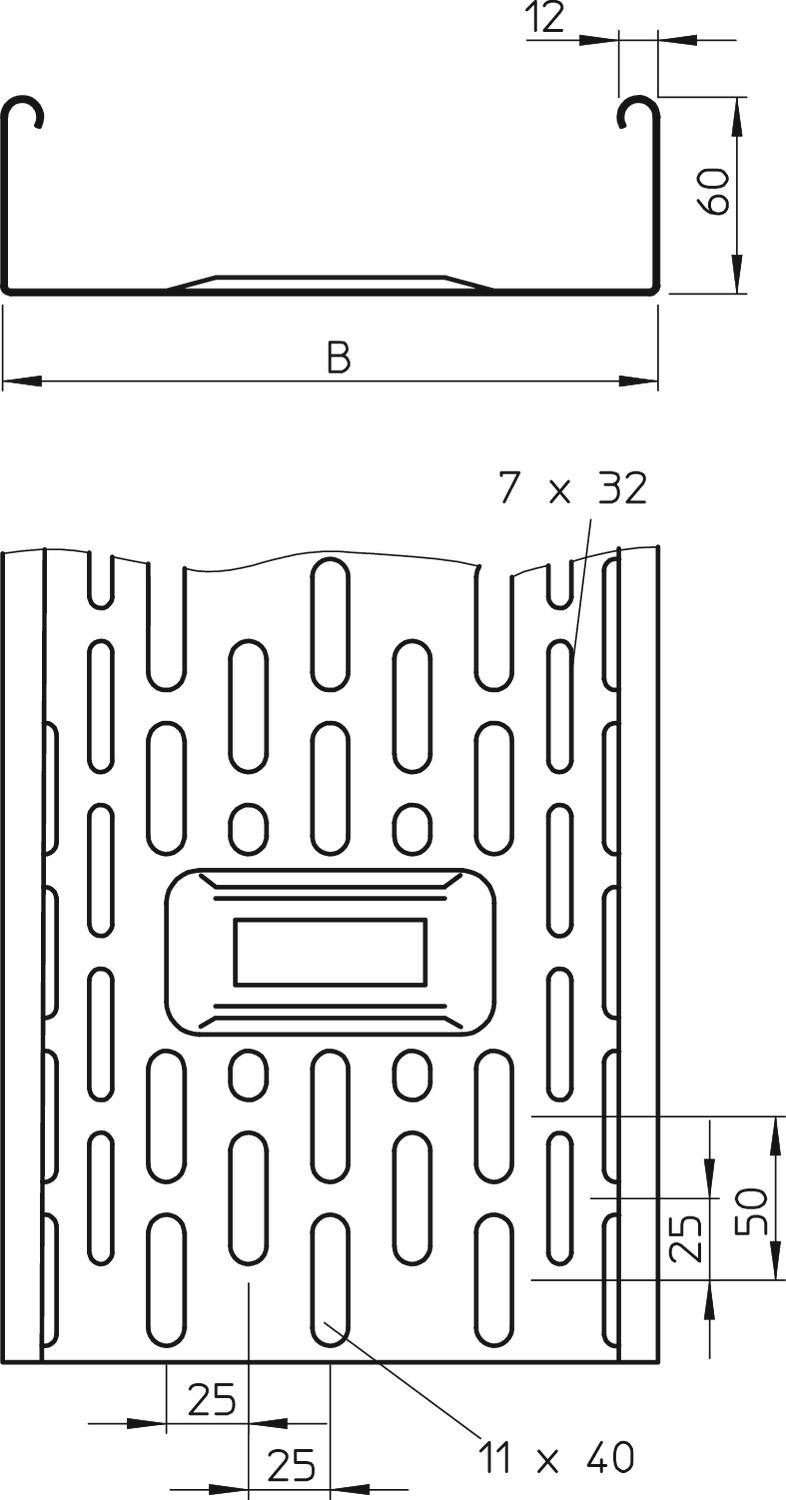

Base perforation 1 CO2 Footprint (GWP) Cradle-to-Gate 4,4254 kg CO₂e / 1 Meter Colour zinc Connector version Without connectors Dimension 60 x 100 Dimension 60x100x3000 Dimension B 100 mm Height 2 in Height 60 mm Length 10 ft Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1 mm Plate thickness 0,06 in Rustproof steel, pickled no Side perforation yes Sprinkler system use yes Support spacing 1.5 m 1,75 kN/m Support spacing 2.0 m 0,95 kN/m Support spacing 2.5 m 0,5 kN/m Support spacing 3.0 m 0,4 kN/m Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 58 cm² Usable cross-section 5800 mm² Wide-span version no Width 100 mm Width 4 in With cover no Technical data

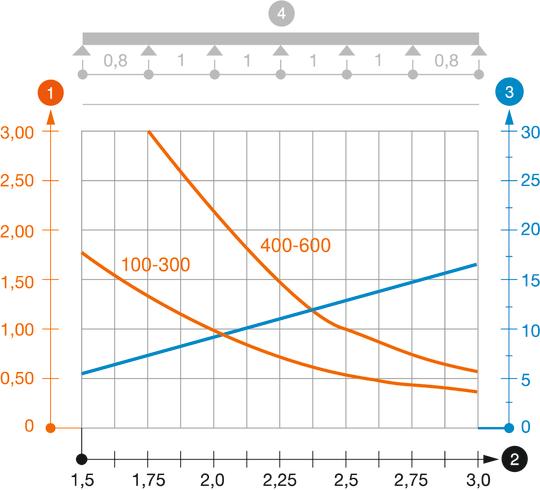

Load diagram, cable tray, type DKS 60
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no.
Cover with turn buckle FT
DRL 100 FT 6051340 - Downloads
-
Data sheet DKS 610 FT / 6085326 , 0.36MB , pdfEU declaration of conformity DKS 610 FT / 6085326 , 0.10MB , pdfEnvironmental Product Declaration (EPD) DKS 610 FT / 6085326 , 1.48MB , pdfUK Declaration of Conformity DKS 610 FT / 6085326 , 0.09MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
