Cable ladder with trapezoidal rungs, standard FT 3000 | 100 | 5 | no

Cable ladder with trapezoidal rungs, standard FT

Item no. 7097409 | EAN 4012196980246

Item no. / Types

Length	3000 mm

Width

Rail thickness	5 mm

Maintain electrical functions	no

Product description

Product description

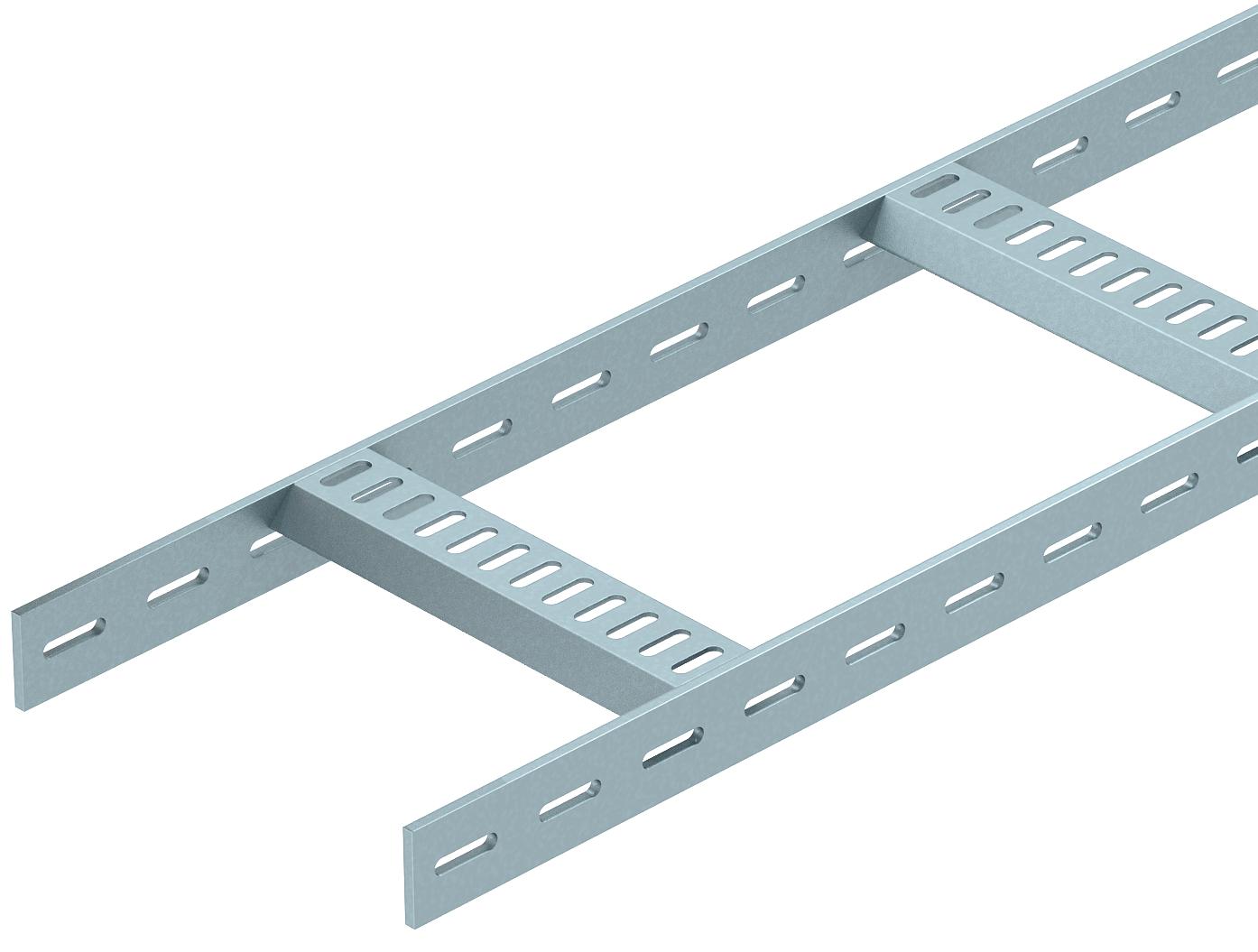

Shipbuilding cable ladder with perforated side rail of side height 40 mm with welded, perforated trapezoidal rungs which open in a downwards direction. Load tested according to IEC in conjunction with connector, type SLV.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	7,4918 kg CO₂e / 1 Meter
Colour	zinc

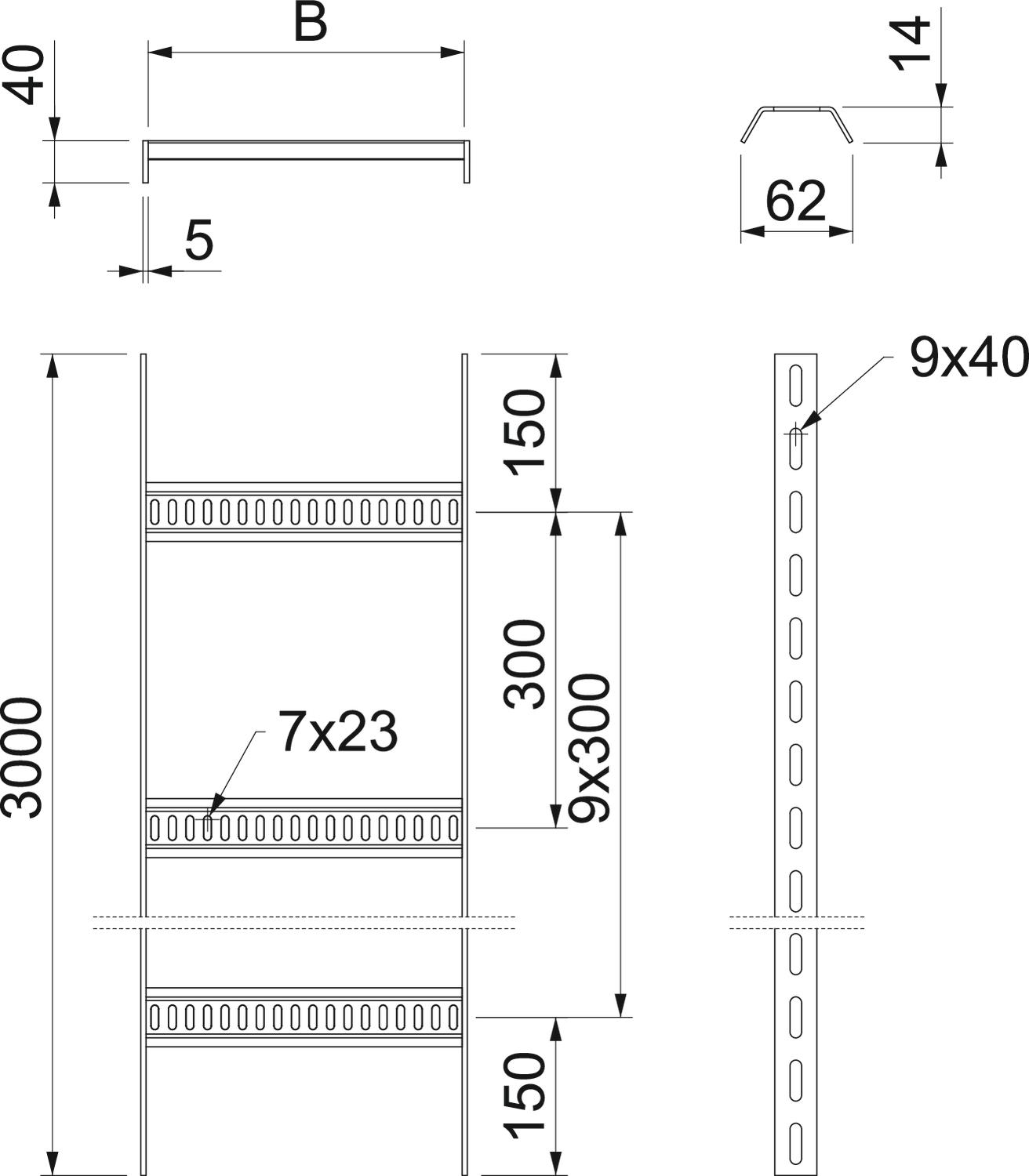

Dimension	40x110x3000
Dimension B	110 mm
Fastening of rung	Welded
Height	40 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	5 mm
Rung distance	300 mm

Rustproof steel, pickled	no
Side perforation	yes
Side rail version	Flat profile
Support spacing 1.5 m	3 kN/m
Support spacing 2.0 m	2 kN/m
Support spacing 2.5 m	1 kN/m
Support spacing 3.0 m	0,6 kN/m
Surface	Hot-dip galvanised
Version of the rungs	Profile perforated
Wide-span version	no
Width	100 mm

Technical data

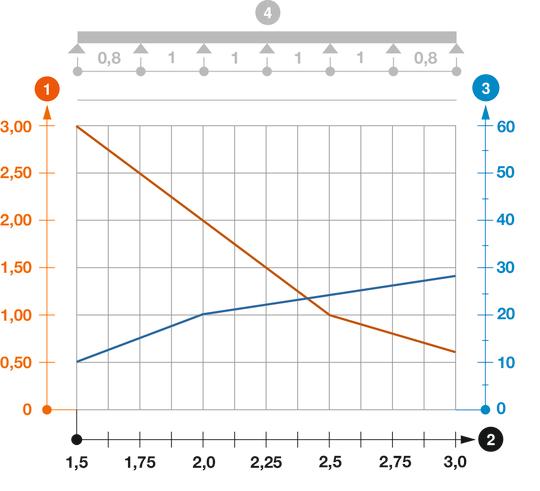

Load diagram, cable ladder, type SL62

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Load scheme during testing

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Item no.
SL 62 100 FT	3000 mm	100 mm	5 mm	no	7097409
SL 62 150 FT	3000 mm	150 mm	5 mm	no	7097417
SL 62 200 FT	3000 mm	200 mm	5 mm	no	7097425
SL 62 300 FT	3000 mm	300 mm	5 mm	no	7097433
SL 62 400 FT	3000 mm	400 mm	5 mm	no	7097441
SL 62 500 FT	3000 mm	500 mm	5 mm	no	7097468
SL 62 600 FT	3000 mm	600 mm	5 mm	no	7097476
