Cable ladder LG 60, 6 m VS FT SOMY
Item no. 7188629 | EAN 4012196079926
- Product description
-

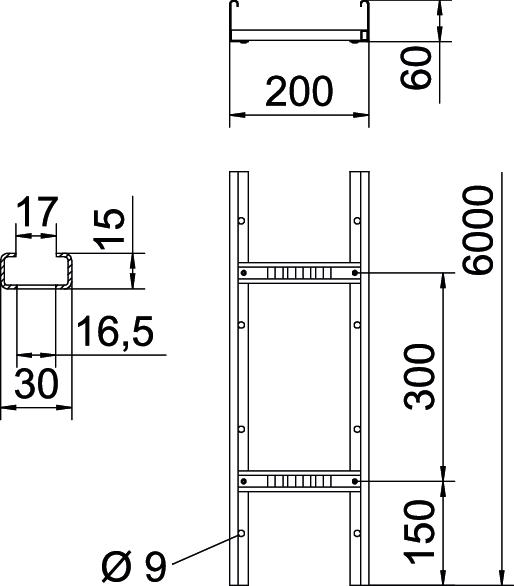

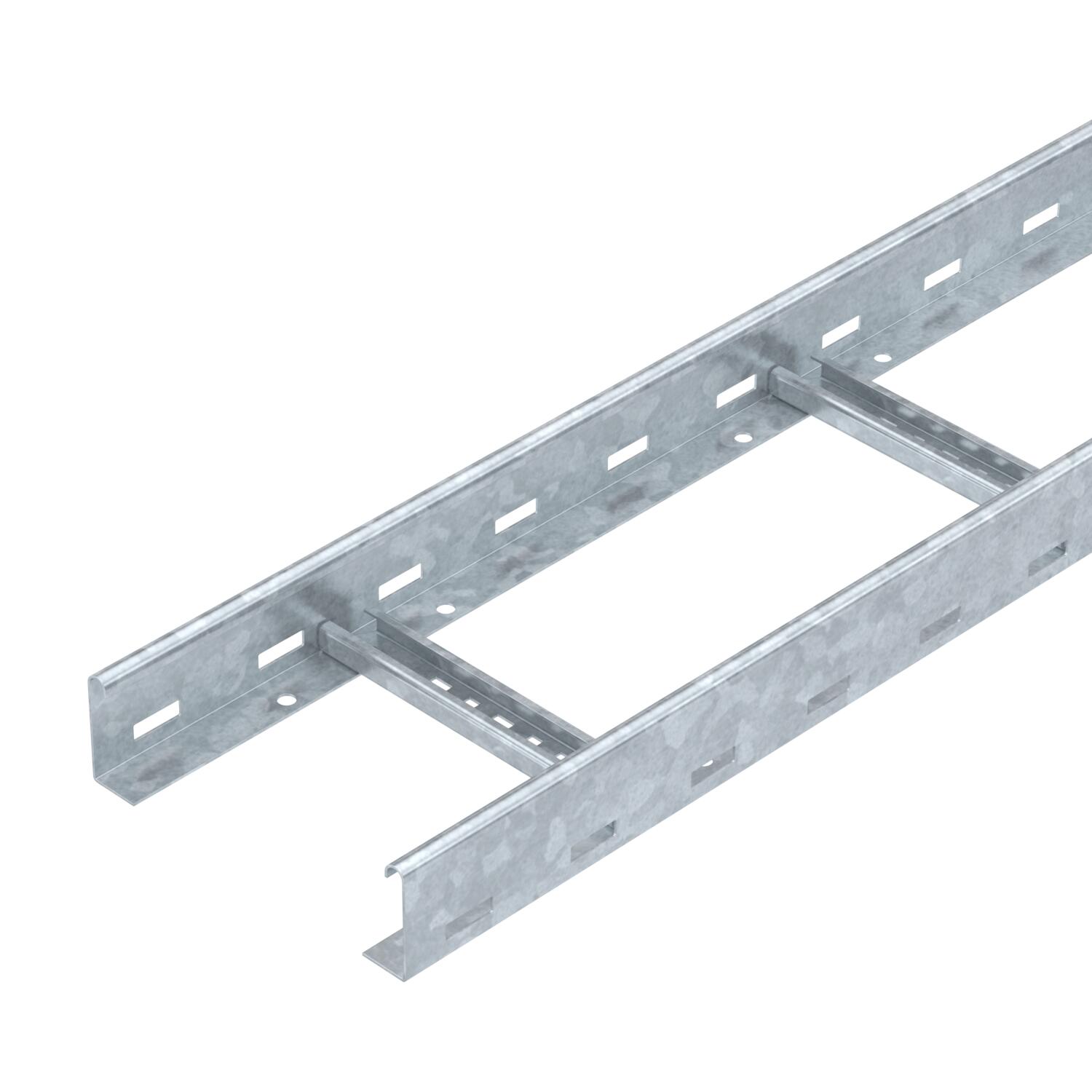

Product descriptionCable ladder with 60 mm side height with riveted C profile rungs which are open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 6,5536 kg CO₂e / 1 Meter Colour zinc Dimension 60 x 200 Dimension 60x200x6000 Dimension B 200 mm Fastening of rung Blind riveted Height 60 mm Length 6000 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rung distance 300 mm Rung slot dimension 16,50 Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 1.5 m 3,1 kN/m Support spacing 2.0 m 2,25 kN/m Support spacing 2.5 m 1,5 kN/m Support spacing 3.0 m 1,1 kN/m Support spacing 3.5 m 0,75 kN/m Support spacing 4.0 m 0,45 kN/m Surface Hot-dip galvanised 85 µm Usable cross-section 9800 mm² Usable cross-section 98 cm² Version of the rungs Profile perforated Wide-span version no Width 200 mm Technical data
Load diagram, cable ladder, type LG 60 VS
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
-
System accessories
Products Types Item no.
Cover with turn buckle FT
DRL 200 FT 6051367 - Downloads
-
Data sheet LG 620 VS 6 FTSO / 7188629 , 0.31MB , pdfCatalogue Cable support systems , 54.52MB , pdfEnvironmental Product Declaration (EPD) LG 620 VS 6 FTSO / 7188629 , 1.48MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfNo invitation to tender text is available for this product.
