Cable ladder LG 110, 3 m VS FT 3000 | 500 | 1.5 | no | Steel | Hot-dip galvanised

Cable ladder LG 110, 3 m VS FT

Item no. 6216432 | EAN 4012195065265

Item no. / Types

Length	3000 mm

Width

Rail thickness	1.5 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	9,1028 kg CO₂e / 1 Meter
Colour	zinc

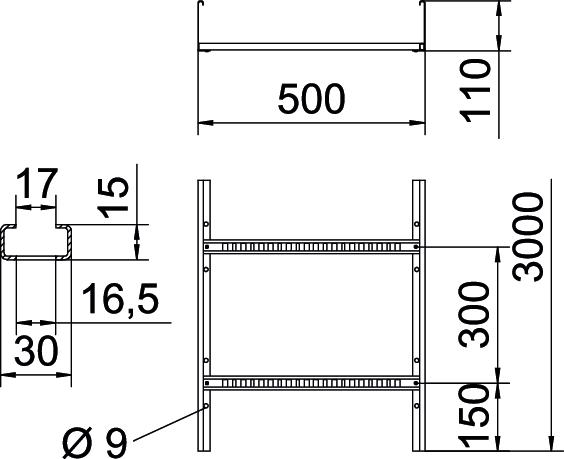

Dimension	110x500x3000
Dimension	110x500x3000
Dimension B	500 mm
Fastening of rung	Blind riveted
Height	110 mm
Length	3000 mm
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rung distance	300 mm
Rung slot dimension	16,50
Rustproof steel, pickled	no
Side perforation	yes

Side rail version	Flat profile
Support spacing 2.0 m	3,1 kN/m
Support spacing 2.5 m	2 kN/m
Support spacing 3.0 m	1,4 kN/m
Support spacing 3.5 m	0,9 kN/m
Support spacing 4.0 m	0,65 kN/m
Support spacing 4.5 m	0,5 kN/m
Support spacing 5.0 m	0,5 kN/m
Surface	Hot-dip galvanised
Usable cross-section	47500 mm²
Usable cross-section	475 cm²
Version of the rungs	Profile perforated
Wide-span version	no
Width	500 mm

Technical data

Load diagram, cable ladder, type LG 110 VS

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width

All types

All types

Types	Length	Width	Rail thickness	Maintain electrical functions	Material	Surface	Item no.
LG 112 VS 3 FT	3000 mm	200 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216423
LG 113 VS 3 FT	3000 mm	300 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216426
LG 114 VS 3 FT	3000 mm	400 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216429
LG 115 VS 3 FT	3000 mm	500 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216432
LG 116 VS 3 FT	3000 mm	600 mm	1.5 mm	no	Steel	Hot-dip galvanised	6216435

Accessories

System accessories

Products	Types	Item no.
Straight connector FT	LVG 110 FT	6216548
Multifunctional connector FT	LMFV 1145 FT	6225776
Cover with turn buckle FT	DRL 500 FT	6051448
Barrier strip 85 DD	TSG 85 DD	6062331
Drop-out plate FT	LAB 50 FT	6220460
