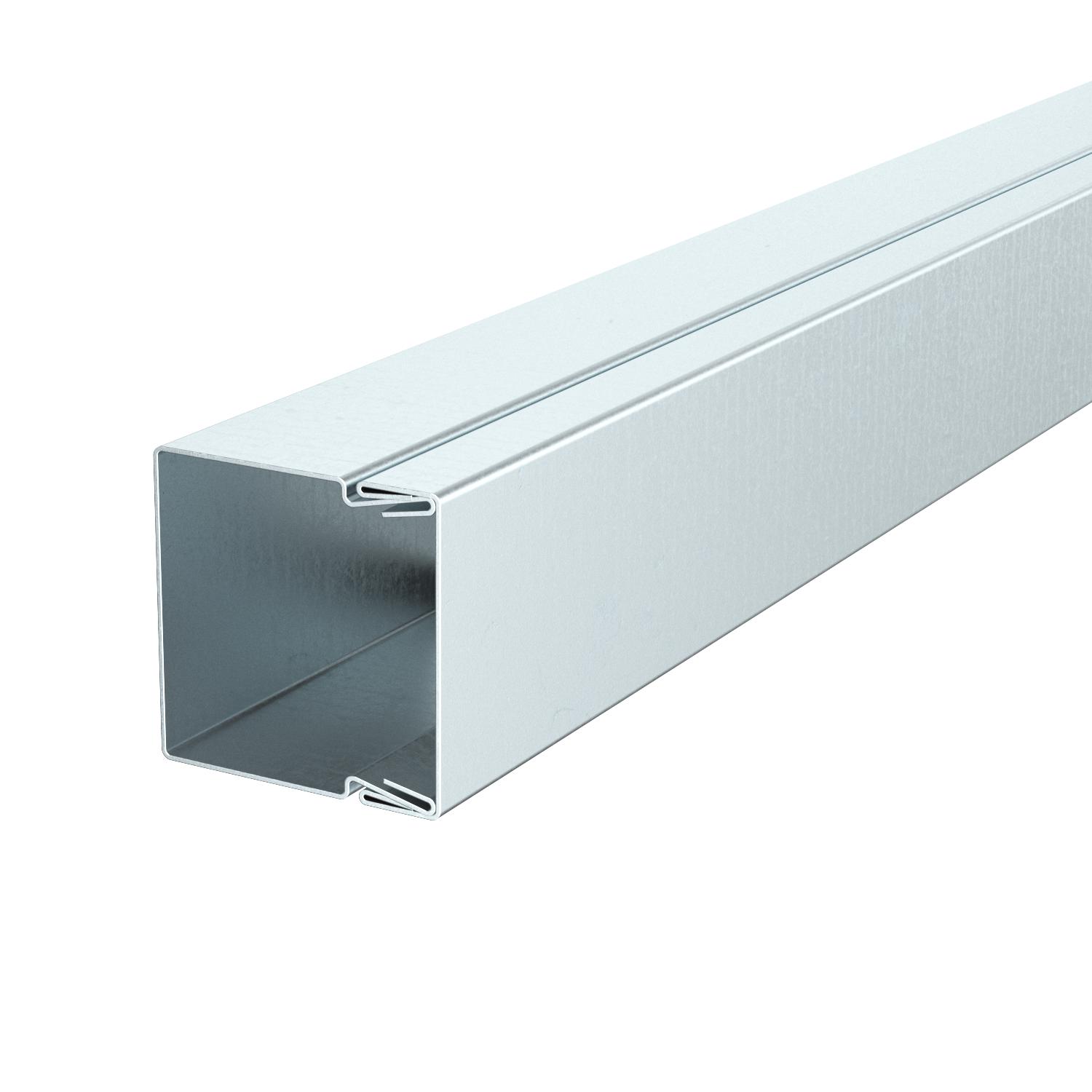

Cable duct, type LKM 30030

Item no. / Types

Length	2000 mm

Width	30 mm

Height	30 mm

Surface

Material	Steel

Product description

Product description

Duct cover and base with base perforation.

Equipotential bonding is guaranteed between the cover and the base without any additional aids.

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	1,4313 kg CO₂e / 1 Meter
Colour	zinc
Delivery on a roll	no

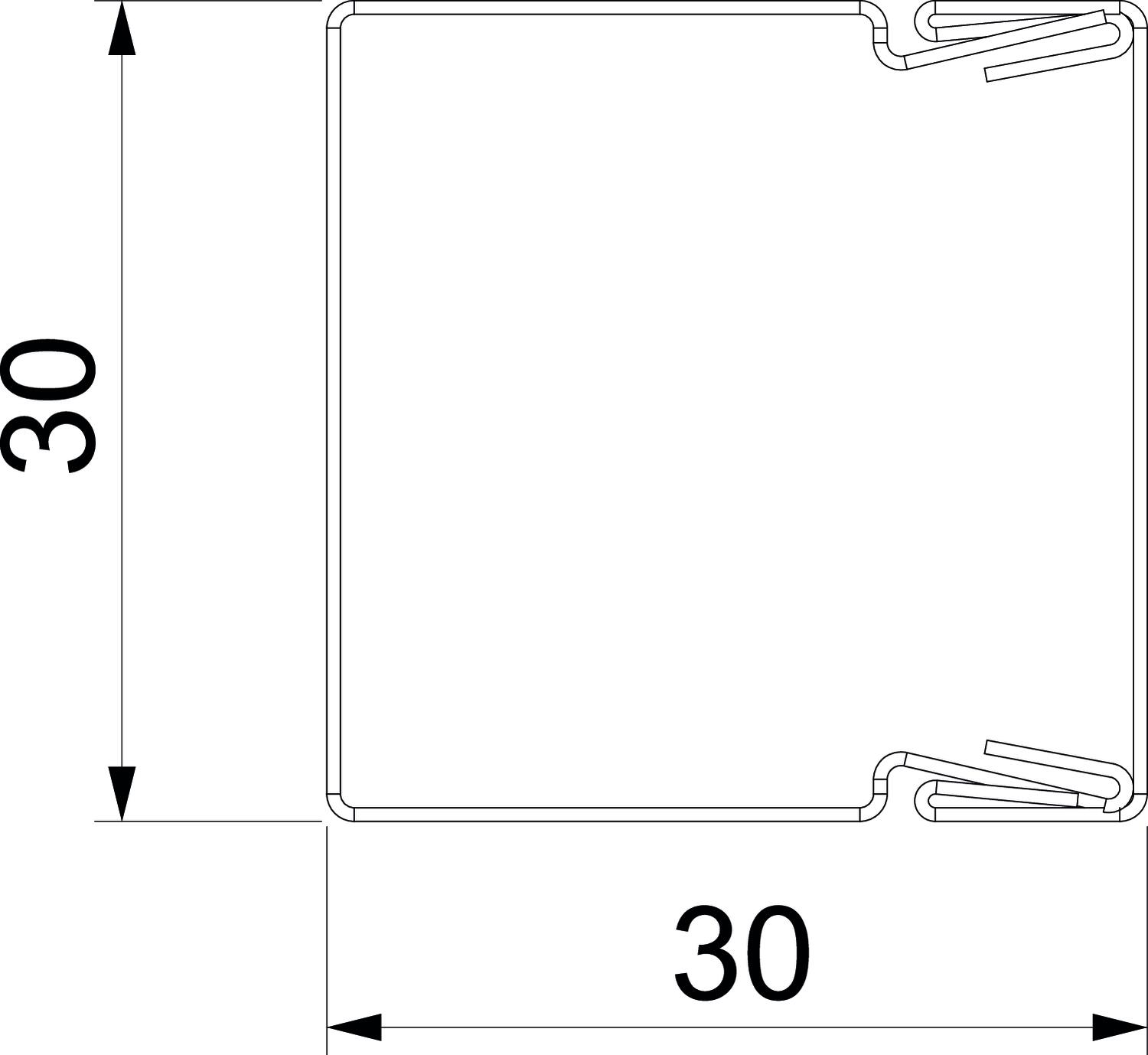

Dimension	30x30x2000
Duct connector	no
Fastening type	Base perforation
Halogen-free	yes
Height	30 mm
Length	2000 mm
Maintain electrical functions	no
Material	Steel

Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket)	4
Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket)	4
Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket)	4
Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	no
Surface	Strip galvanized
Transparent	no
Usable cross-section	805 mm²
Version, cable trunking cover	Loose
Width	30 mm

All types

All types

Types	Length	Width	Height	Surface	Material	Item no.
LKM30030FS	2000 mm	30 mm	30 mm	Strip galvanized	Steel	6246985
LKM30030RW	2000 mm	30 mm	30 mm	Strip galvanized / plastic coated	Steel	6248489

Accessories

Products	Types	Item no.
Joint connector LKM SV30	LKM SV30	6247434

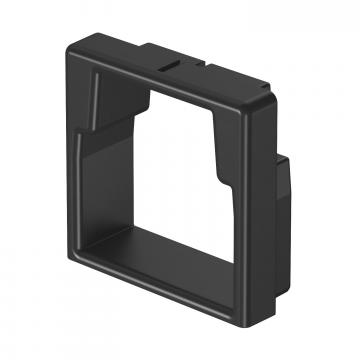

Edge protection ring KSR 30030, for LKM cable duct type 30030	LKM KSR30030	6249746

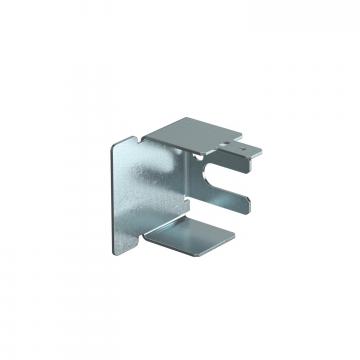

End piece, for cable trunking type LKM 30030	LKM E30030FS	6247876

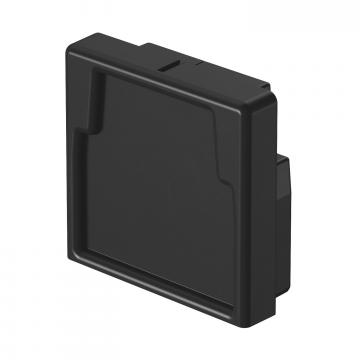

End piece, for cable trunking type LKM 30030	LKM EK30030	6249776
