Bend, angle-adjustable, 60 FT 600 | Steel | Hot-dip galvanised | zinc

Bend, angle-adjustable, 60 FT

Item no. 6037132 | EAN 4012197341770

Item no. / Types

Width

Material	Steel

Surface	Hot-dip galvanised

Colour	zinc

Product description

Product description

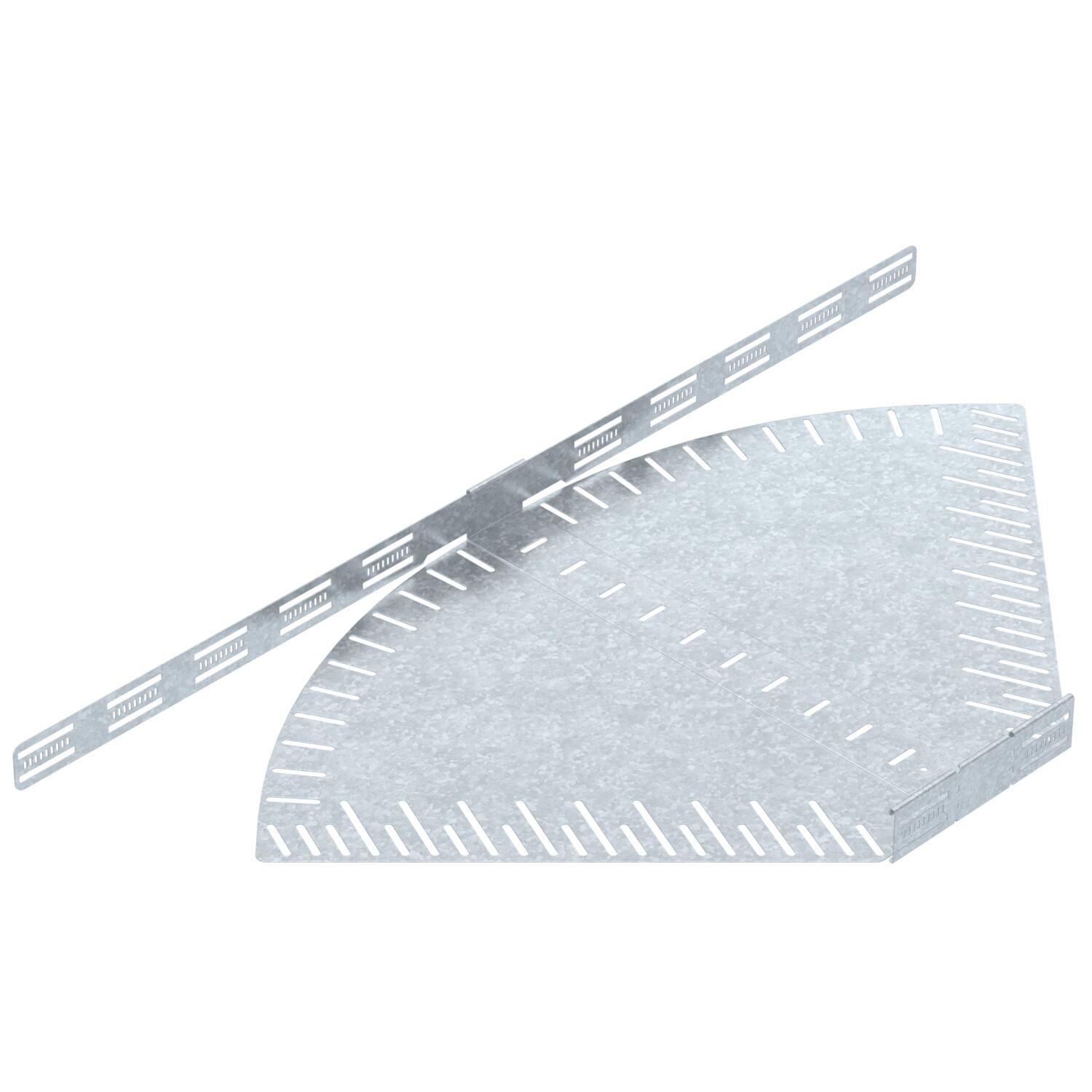

Angle-adjustable bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Adjustable angle 0–90°. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.

Technical data

Technical data

Bend (angle)	Adjustable
Change of direction	Horizontal
CO2 Footprint (GWP) Cradle-to-Gate	15,474 kg CO2e / 1 Piece
Colour	zinc
Connector version	Integrated connector

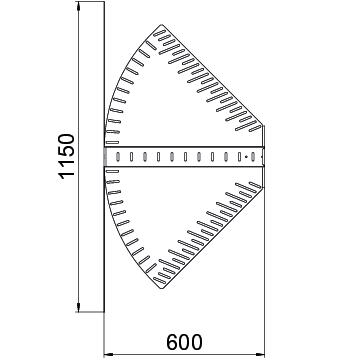

Dimension	60x600
Dimension B	600 mm
Dimension L	1150 mm
Height	60 mm
Maintain electrical functions	no
Material	Steel
Material thickness, floor plate	1,25 mm
Mounting perforation in base	yes
NATO hole pattern	no

Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	1,25 mm
Rail thickness	1,25 mm
Recommended quantity of bolts	16 St.
Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Type	Adjustable bend_complete
Type of connector, cable support system	screwed/clamped
Wide-span version	no
Width	600 mm
With cover	no

All types

All types

Types	Width	Material	Surface	Colour	Item no.
RB W 610 FT	100 mm	Steel	Hot-dip galvanised	zinc	6037120
RB W 615 FT	150 mm	Steel	Hot-dip galvanised	zinc	6037122
RB W 620 FT	200 mm	Steel	Hot-dip galvanised	zinc	6037124
RB W 630 FT	300 mm	Steel	Hot-dip galvanised	zinc	6037126
RB W 640 FT	400 mm	Steel	Hot-dip galvanised	zinc	6037128
RB W 650 FT	500 mm	Steel	Hot-dip galvanised	zinc	6037130
RB W 660 FT	600 mm	Steel	Hot-dip galvanised	zinc	6037132
