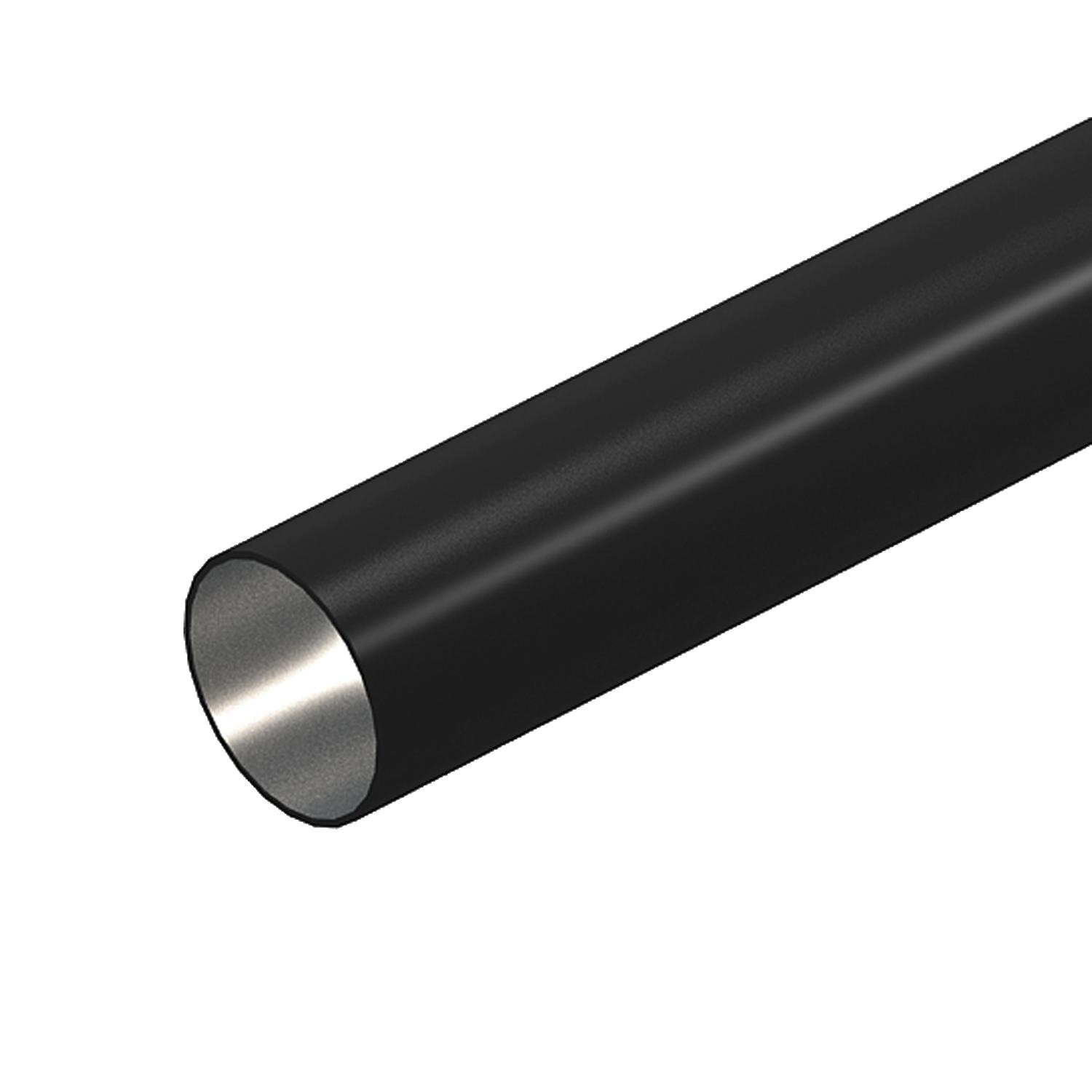

Armoured steel pipe without thread, black

Item no. / Types

External diameter

Dimension m (mm)

Colour	Jet black; RAL 9005

Product description

Product description

Electrical installation pipe without threaded ends according to EN 61386-1 for mechanical protection of cables. With burr-free inner wall.

Technical data

Brushed surface	no
Cavity wall installation	yes
Classification code	44561
CO2 Footprint (GWP) Cradle-to-Gate	0,769 kg CO₂e / 1 Meter
Colour	Jet black; RAL 9005
Concealed	yes
Concrete installation	yes
Connection 1, installation pipe	Pipe end
Connection 2, installation pipe	Pipe end

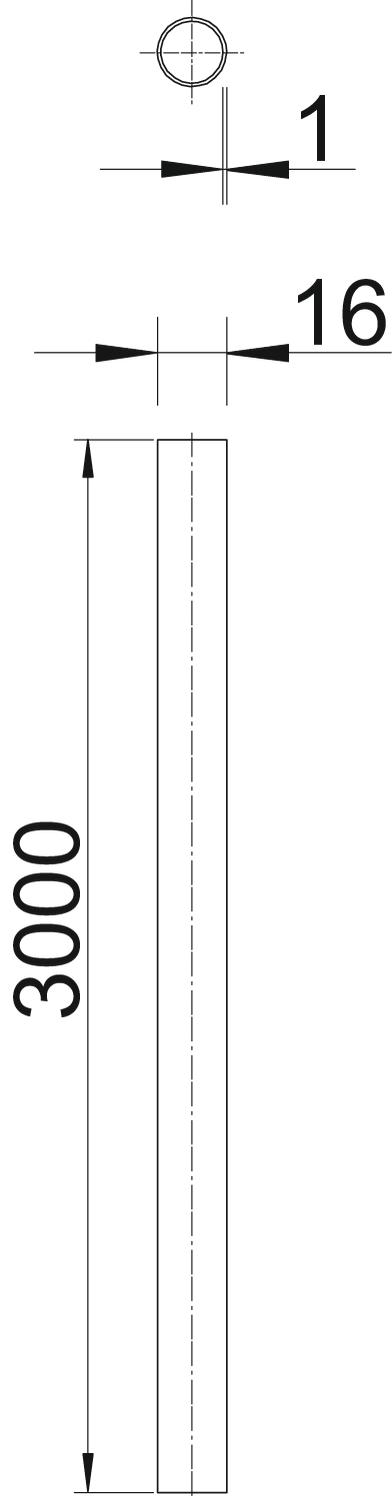

Dimension	Ø16, 3000mm
Dimension D	16 mm
Dimension L	3000 mm
Dimension m (mm)	M16
Dimension t	1 mm
External diameter	16 mm

Installation in the earth	no
Installation on wood	yes
Installation outdoors	no
Length	3000 mm
Machines and system installation	yes
Material	Steel
Permitted temperature range, max.	250 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid without thread
Polished surface	no
Surface	PES50 - Polyester/epoxy
Surface-mounted	yes
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes
With sleeve	no

All types

All types

Types	External diameter	Dimension m (mm)	Colour	Item no.
S16W SW	16 mm	M16	Jet black; RAL 9005	2046565
S20W SW	20 mm	M20	Jet black; RAL 9005	2046566
S25W SW	25 mm	M25	Jet black; RAL 9005	2046567
S32W SW	32 mm	M32	Jet black; RAL 9005	2046568
S40W SW	40 mm	M40	Jet black; RAL 9005	2046569
S50W SW	50 mm	M50	Jet black; RAL 9005	2046570
S63W SW	63 mm	M63	Jet black; RAL 9005	2046571
