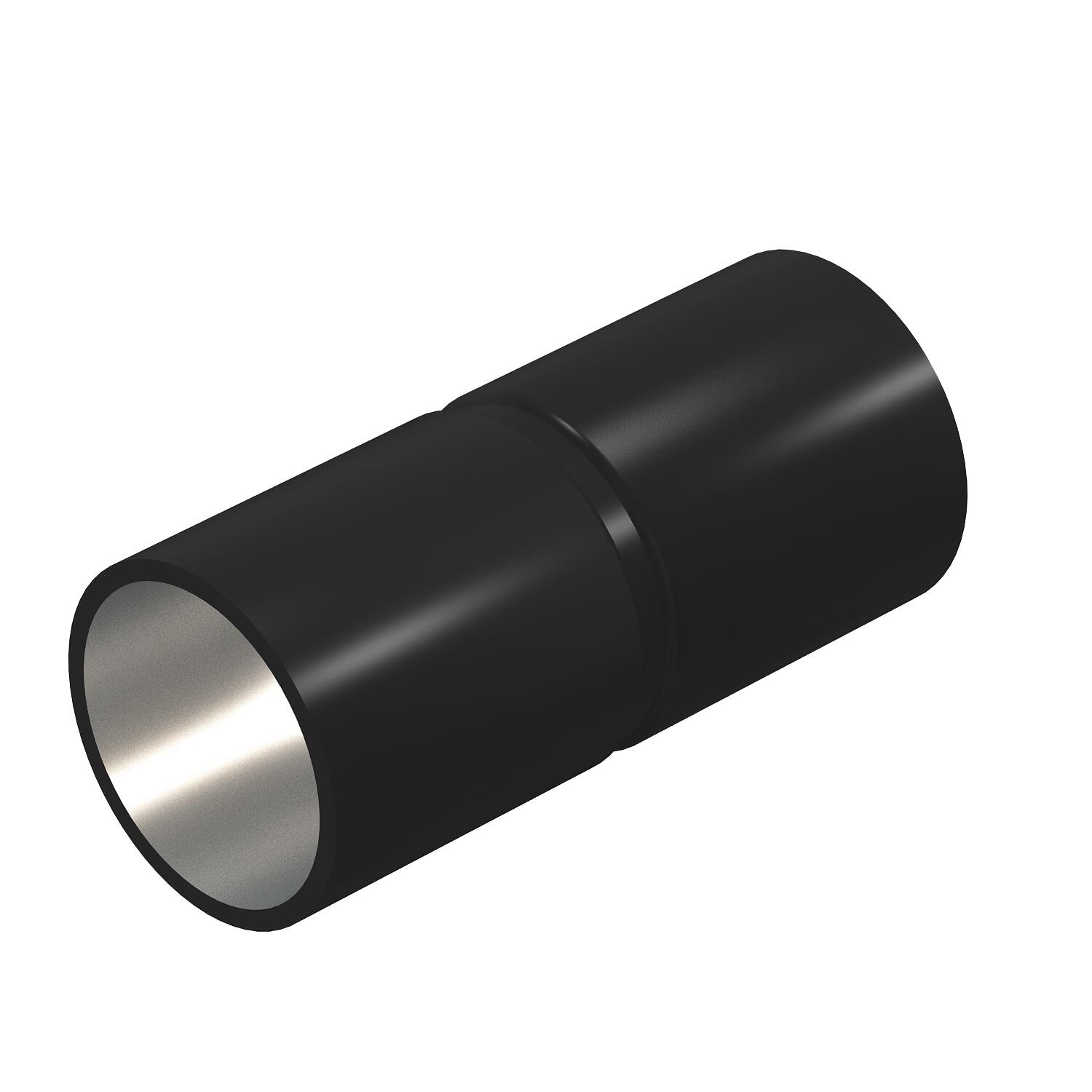

Armoured steel pipe connection sleeve without thread, black
Item no. 2046582 | EAN 4012195781776
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

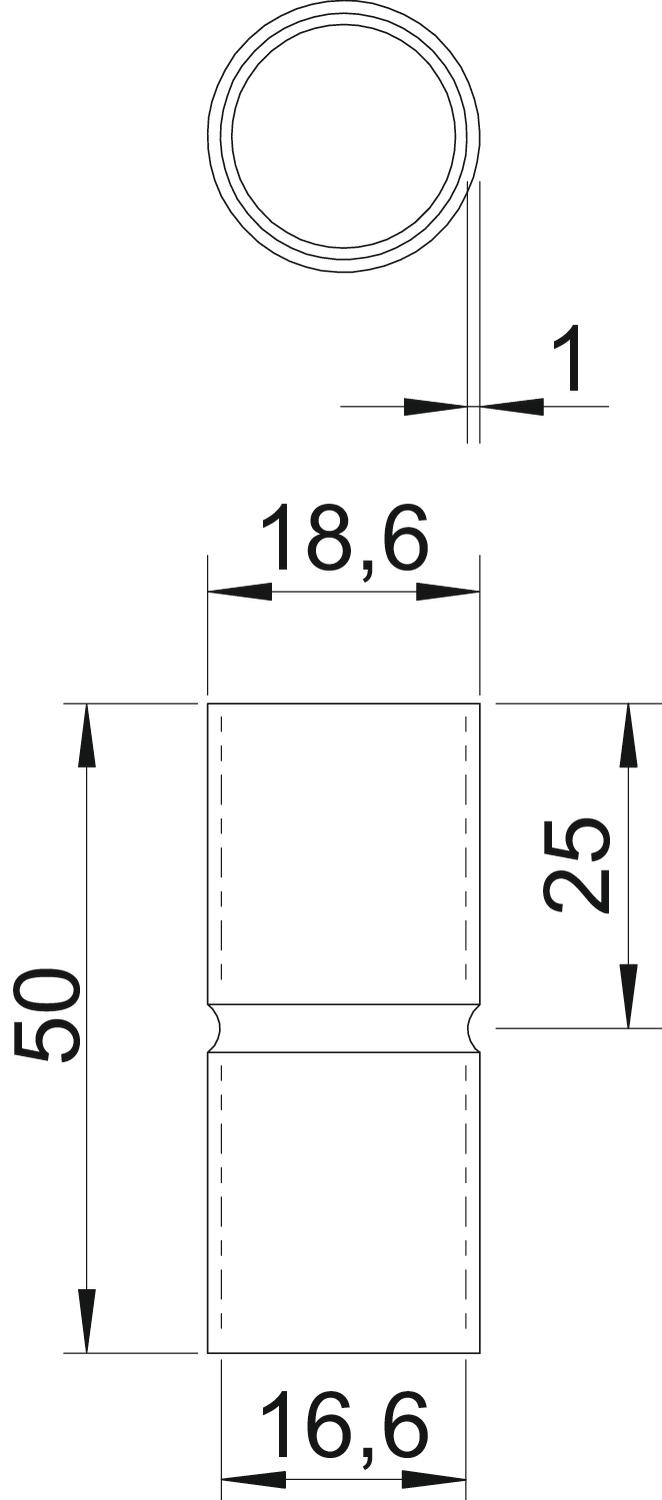

Brushed surface no CO2 Footprint (GWP) Cradle-to-Gate 0,081 kg CO₂e / 1 Piece Colour Jet black; RAL 9005 Dimension Ø16mm Dimension D 18,6 mm Dimension d 16,6 mm Dimension L 50 mm Dimension l 25 mm Dimension m (mm) M16 Dimension t 1 mm for pipe diameter 16 mm Halogen-free yes Length 50 mm Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 16 Surface PES50 - Polyester/epoxy Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV16W SW / 2046582 , 0.19MB , pdfEU declaration of conformity SV16W SW / 2046582 , 0.10MB , pdfUK Declaration of Conformity SV16W SW / 2046582 , 0.09MB , pdfREACH Declaration of conformity SV16W SW / 2046582 , 0.12MB , pdfRoHS Declaration of conformity SV16W SW / 2046582 , 0.13MB , pdf
