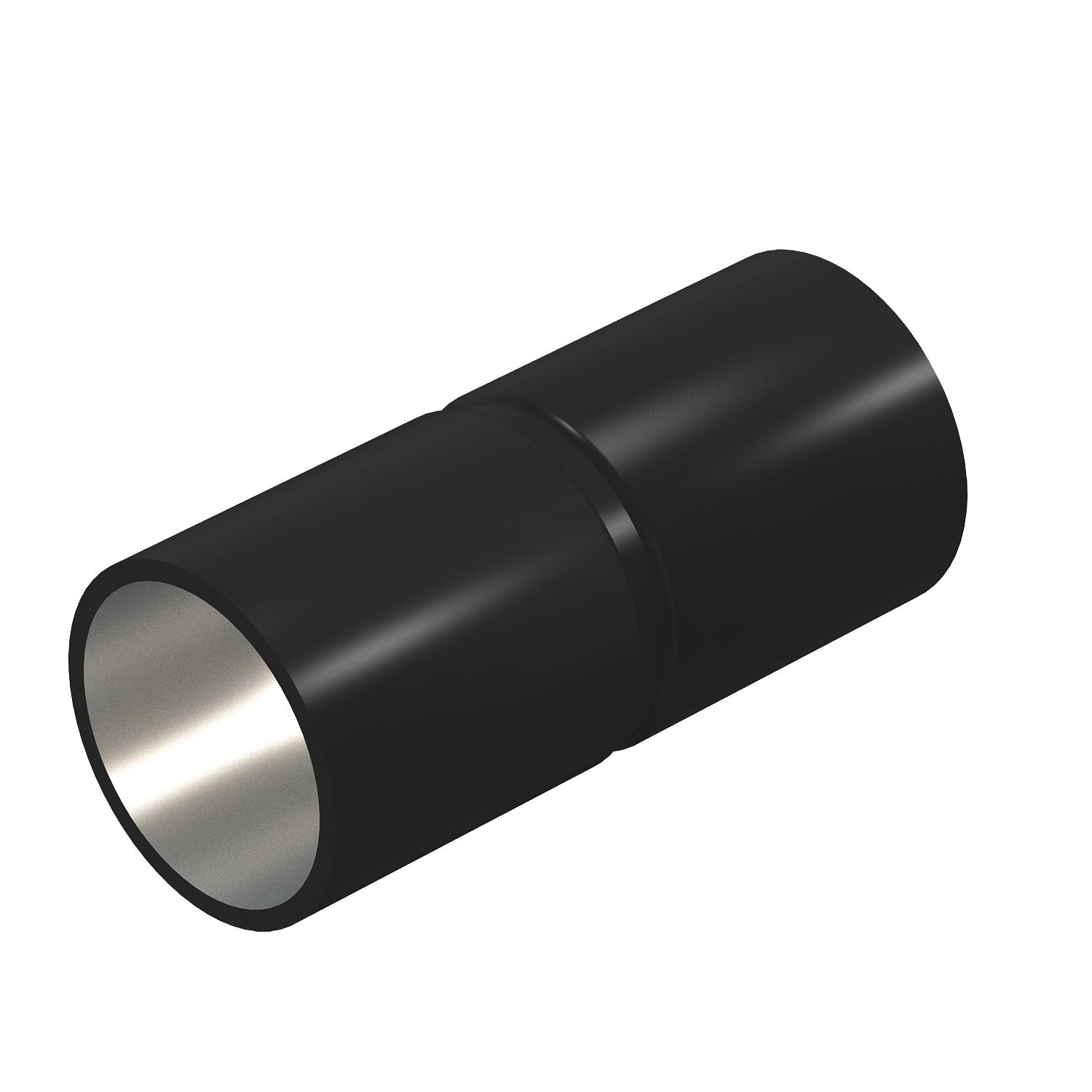

Armoured steel pipe connection sleeve without thread, black
Item no. 2046584 | EAN 4012195781790
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data

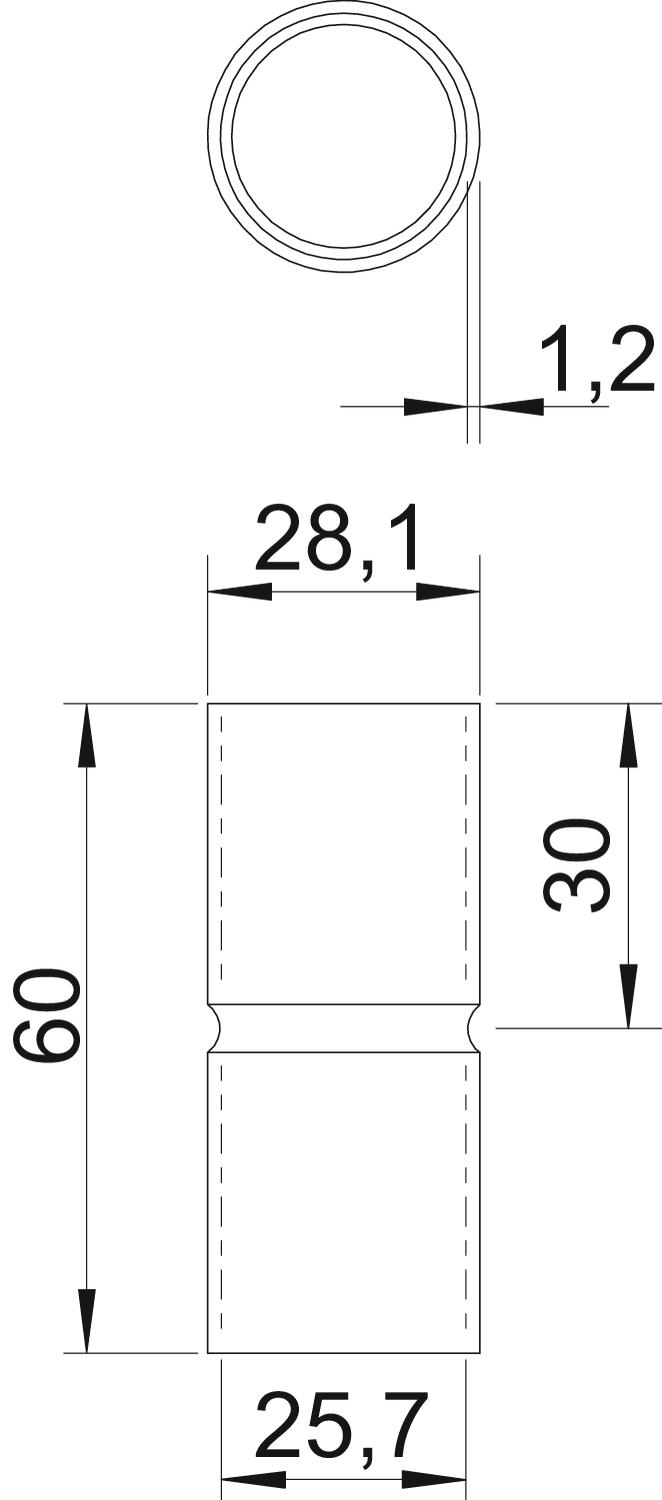

Brushed surface no CO2 Footprint (GWP) Cradle-to-Gate 0,1262 kg CO₂e / 1 Piece Colour Jet black; RAL 9005 Dimension Ø25mm Dimension d 25,7 mm Dimension D 28,1 mm Dimension L 60 mm Dimension l 30 mm Dimension m (mm) M25 Dimension t 1,2 mm for pipe diameter 25 mm Halogen-free yes Length 60 mm Material Steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 25 Surface PES50 - Polyester/epoxy Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV25W SW / 2046584 , 0.17MB , pdfEU declaration of conformity SV25W SW / 2046584 , 0.10MB , pdfUK Declaration of Conformity SV25W SW / 2046584 , 0.09MB , pdfREACH Declaration of conformity SV25W SW / 2046584 , 0.12MB , pdfRoHS Declaration of conformity SV25W SW / 2046584 , 0.13MB , pdfMounting instructions Mounting instructions, V-TEC VM.. SGR; V-TEC VM.. LGR; V-TEC VM.. SW , 0.08MB , pdf
