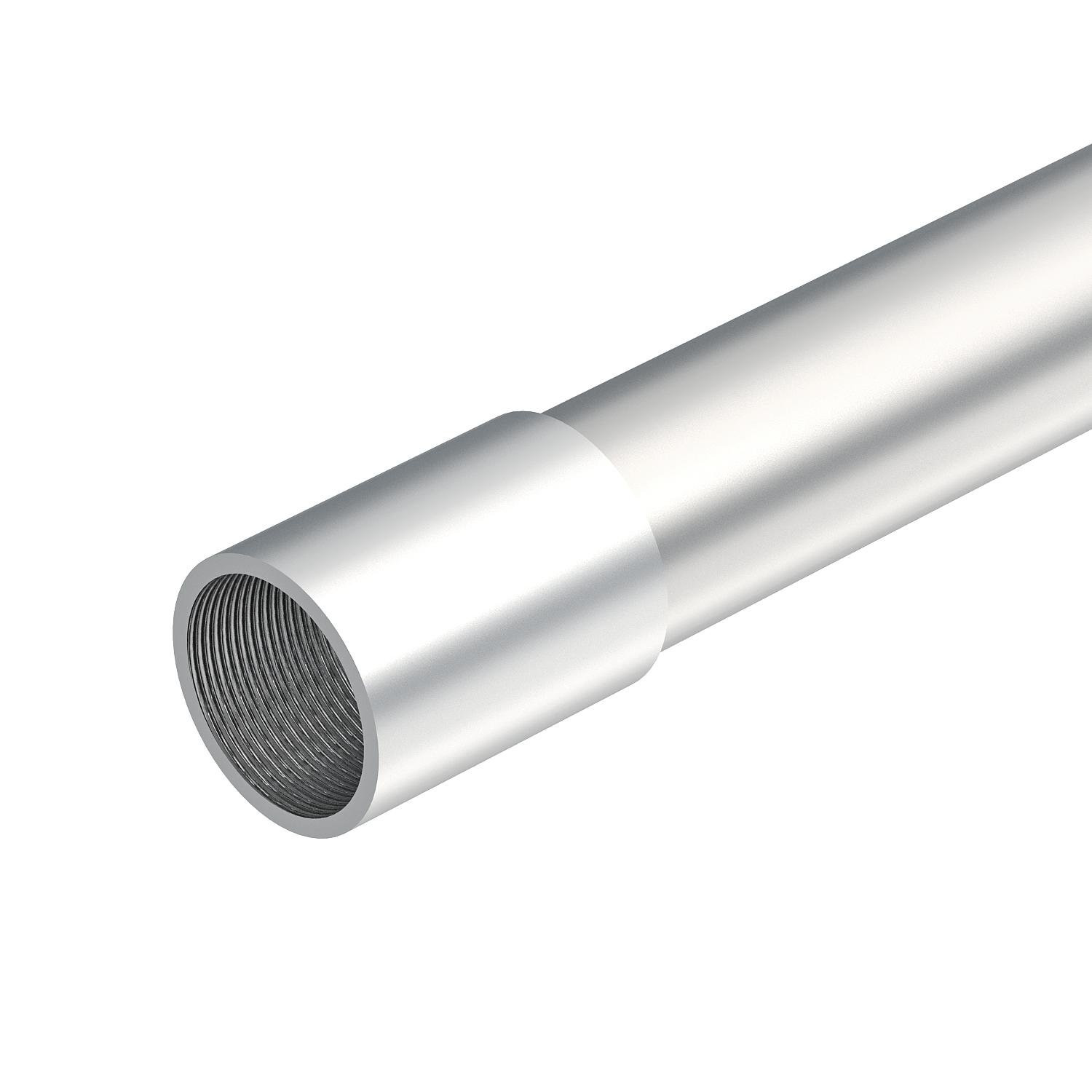

Aluminium pipe, with thread
Item no. 2046035 | EAN 4012195926146
- Product description
-
Product descriptionElectrical installation pipe to EN 61386-1 with threaded ends to DIN EN 60423 for mechanical protection of cables.
With burr-free inner wall. One connection sleeve is already screwed onto each pipe.
-
- Technical data
-
Technical data

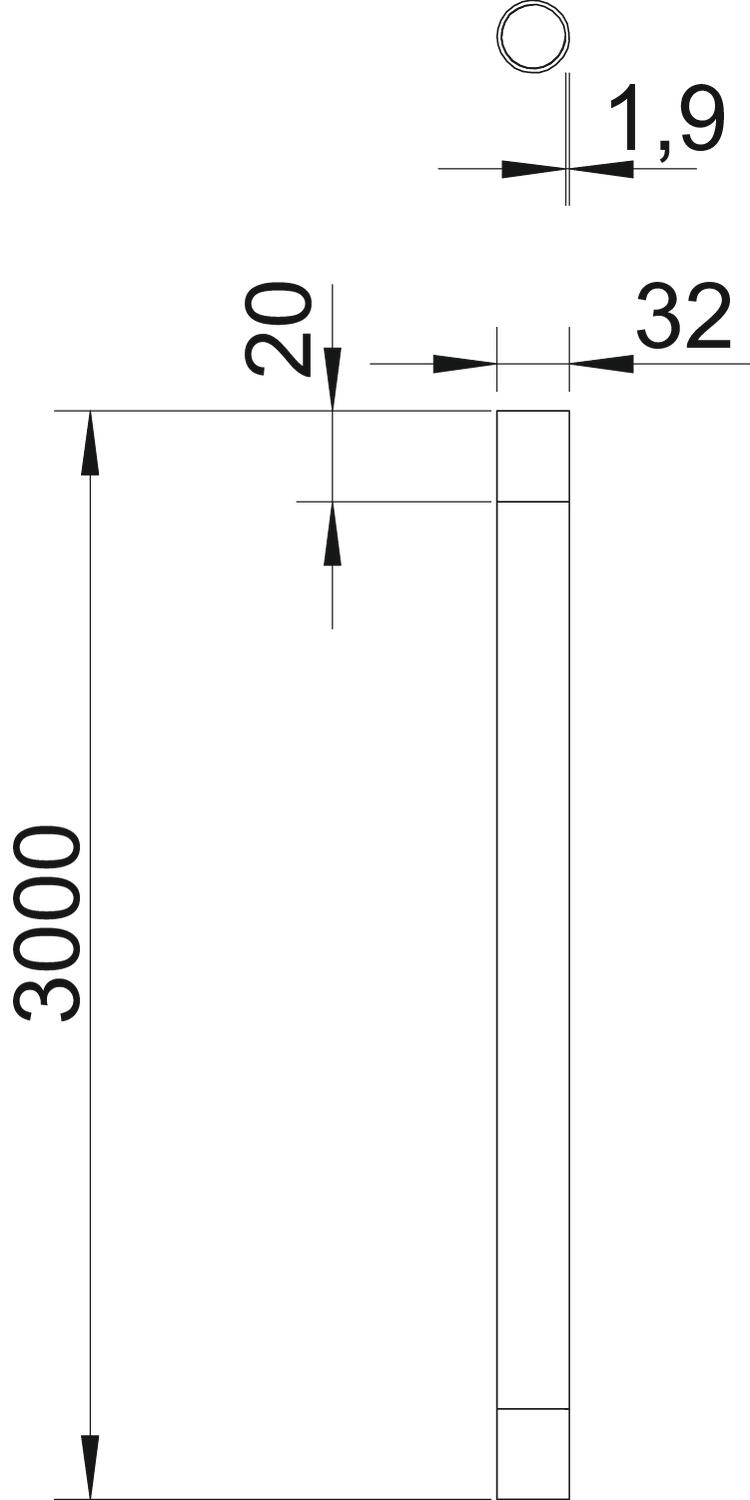

Brushed surface no Cavity wall installation yes Classification code 55561 CO2 Footprint (GWP) Cradle-to-Gate 6,0848 kg CO₂e / 1 Meter Concealed yes Concrete installation yes Connection 1, installation pipe Sleeve Connection 2, installation pipe External thread (metric) Dimension M32x1,5,3000 Dimension D 32 mm Dimension l 20 mm Dimension L 3000 mm Dimension m (mm) M32 Dimension t 1,9 mm Installation in the earth yes Installation on wood yes Installation outdoors yes Length 3000 mm Machines and system installation yes Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Pipe version Rigid with thread Polished surface no Surface-mounted yes Thread M32x1,5 Underfloor installation (bitumen, hot asphalt) yes Underfloor installation (screed) yes - All types
-
All types
-
System accessories
Products Types Item no.

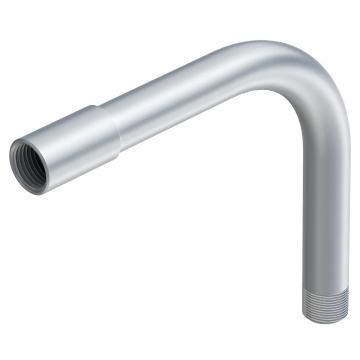

Aluminium pipe bend, with thread
SBM32W ALU 2046045

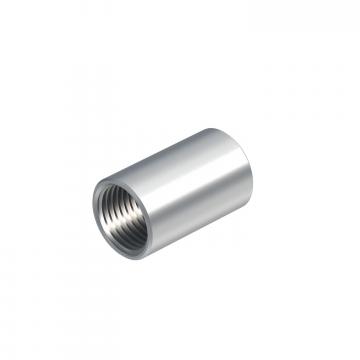

Aluminium sleeve, with thread
SVM32W ALU 2046055 Mounting accessories
Products Types Item no.

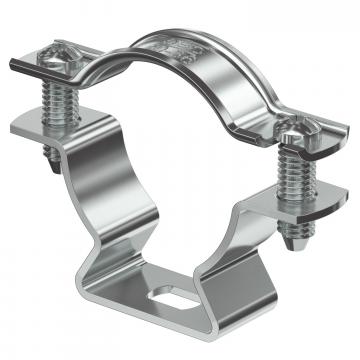

Spacer clip 733 ALU
ASL 733 36 ALU 1362826
Pipe end cap, splittable, metric, light grey
129 TB M32 2047855 - Downloads
-
Data sheet SM32W ALU / 2046035 , 0.20MB , pdfEU declaration of conformity SM32W ALU / 2046035 , 0.11MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity SM32W ALU / 2046035 , 0.09MB , pdfREACH Declaration of conformity SM32W ALU / 2046035 , 0.12MB , pdfRoHS Declaration of conformity SM32W ALU / 2046035 , 0.12MB , pdf
