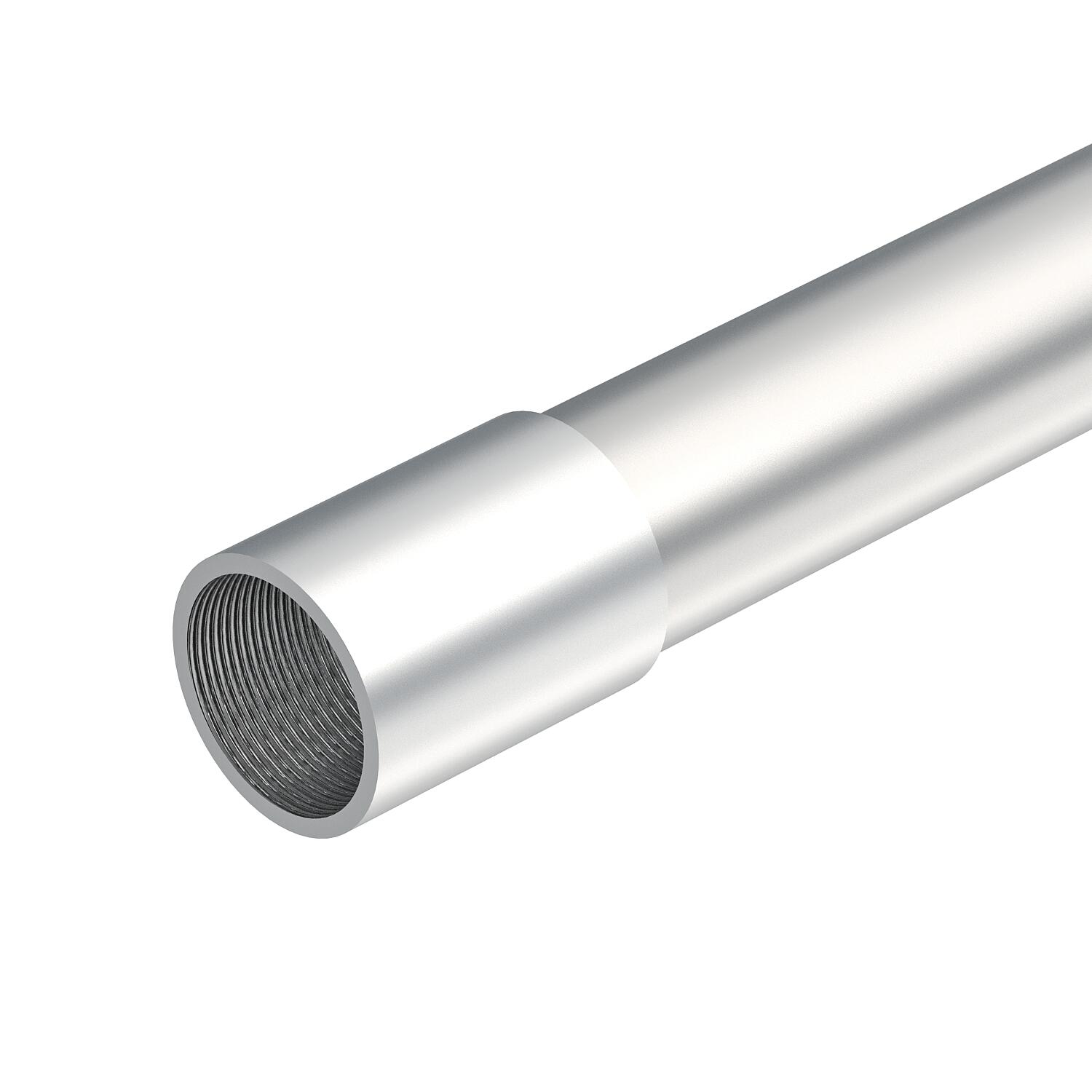

Aluminium pipe, with thread 16 | 3000 | 1.6 | M16x1,5

Aluminium pipe, with thread

Item no. 2046032 | EAN 4012195926092

Item no. / Types

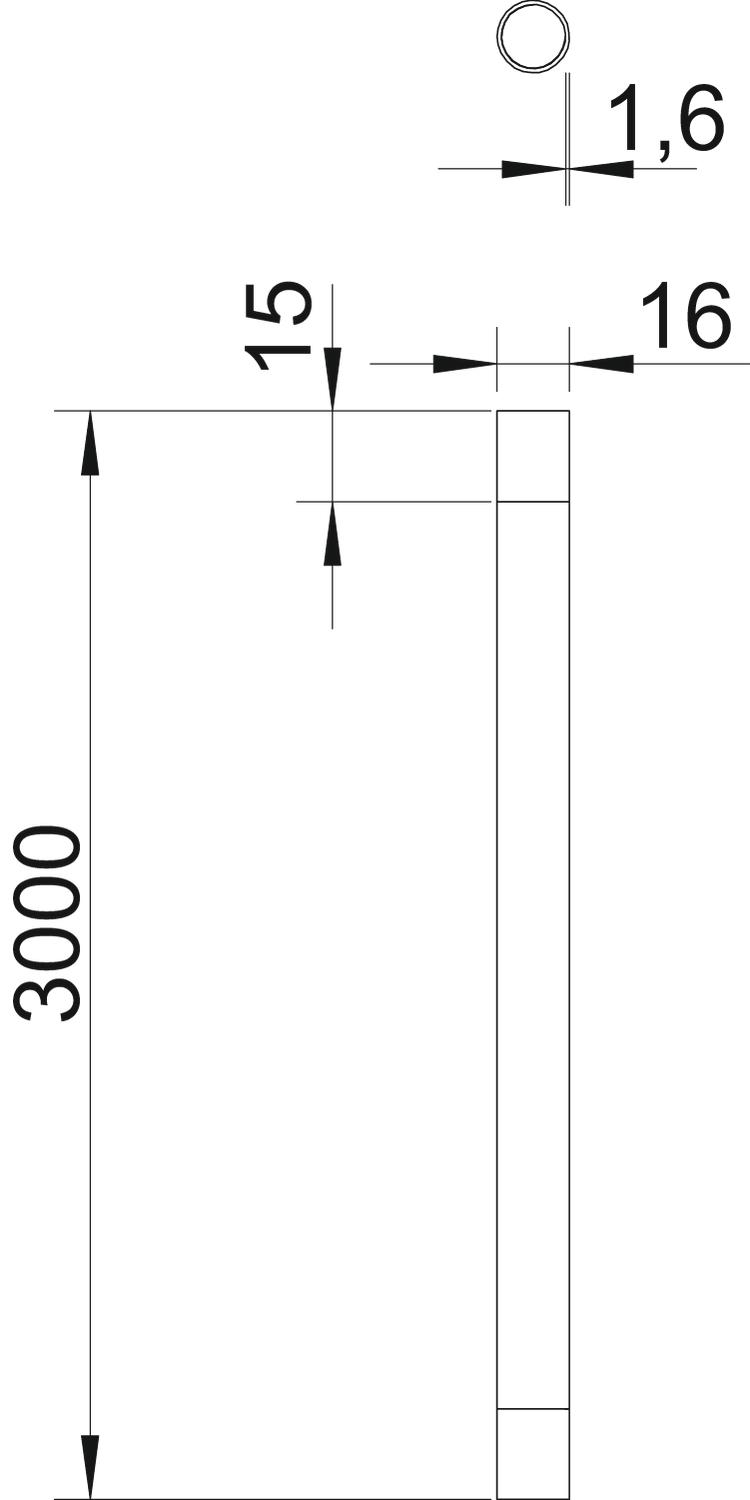

Dimension D

Dimension L	3000 mm

Dimension t

Thread

Product description

Product description

Electrical installation pipe to EN 61386-1 with threaded ends to DIN EN 60423 for mechanical protection of cables.
With burr-free inner wall. One connection sleeve is already screwed onto each pipe.

Technical data

Technical data

Brushed surface	no
Cavity wall installation	yes
Classification code	55561
CO2 Footprint (GWP) Cradle-to-Gate	2,4491 kg CO₂e / 1 Meter
Concealed	yes
Concrete installation	yes
Connection 1, installation pipe	Sleeve
Connection 2, installation pipe	External thread (metric)
Dimension	M16x1,5,3000
Dimension D	16 mm
Dimension L	3000 mm
Dimension l	15 mm
Dimension m (mm)	M16
Dimension t	1,6 mm

Installation in the earth	yes
Installation on wood	yes
Installation outdoors	yes
Length	3000 mm
Machines and system installation	yes
Material	Aluminium
Permitted temperature range, max.	250 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid with thread
Polished surface	no
Surface-mounted	yes
Thread	M16x1,5
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes

All types

All types

Types	Dimension D	Dimension L	Dimension t	Thread	Item no.
SM16W ALU	16 mm	3000 mm	1.6 mm	M16x1,5	2046032
SM20W ALU	20 mm	3000 mm	1.9 mm	M20x1,5	2046033
SM25W ALU	25 mm	3000 mm	1.9 mm	M25x1,5	2046034
SM32W ALU	32 mm	3000 mm	1.9 mm	M32x1,5	2046035
SM40W ALU	40 mm	3000 mm	1.9 mm	M40x1,5	2046036
SM50W ALU	50 mm	3000 mm	2.1 mm	M50x1,5	2046037
SM63W ALU	63 mm	3000 mm	2.1 mm	M63x1,5	2046038

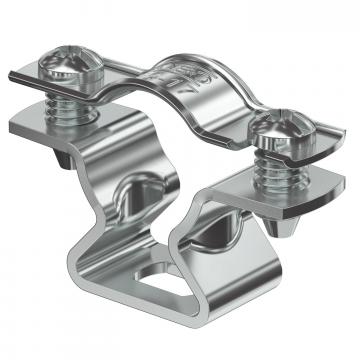

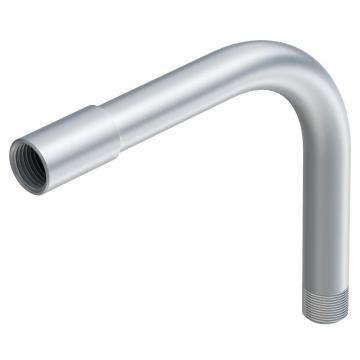

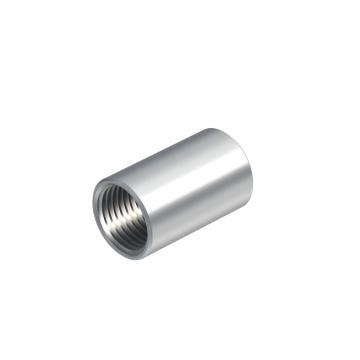

Accessories
