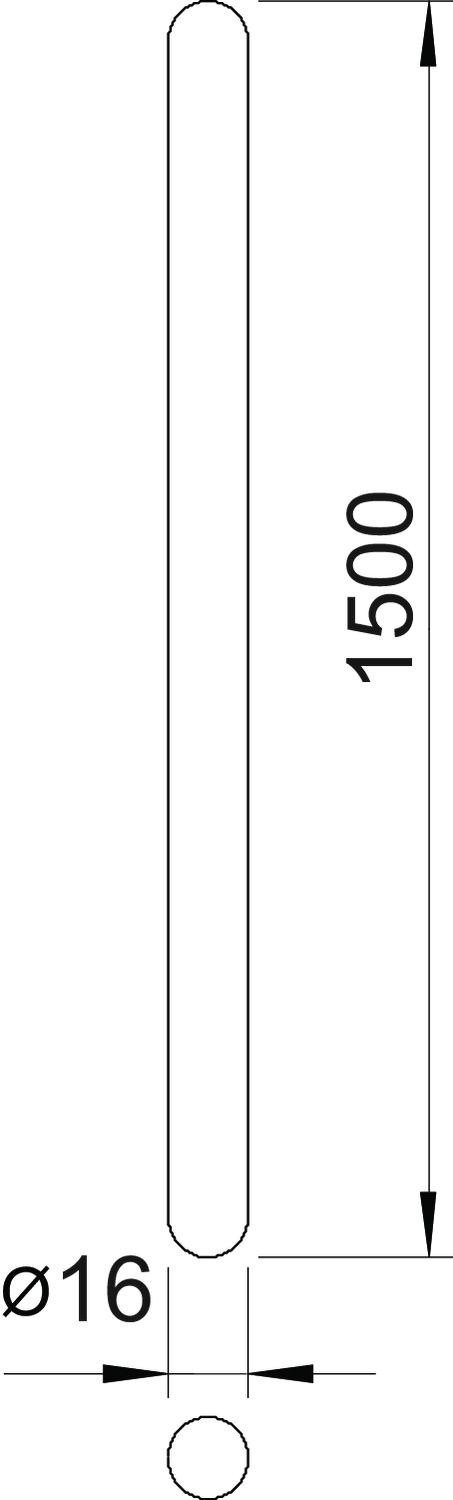

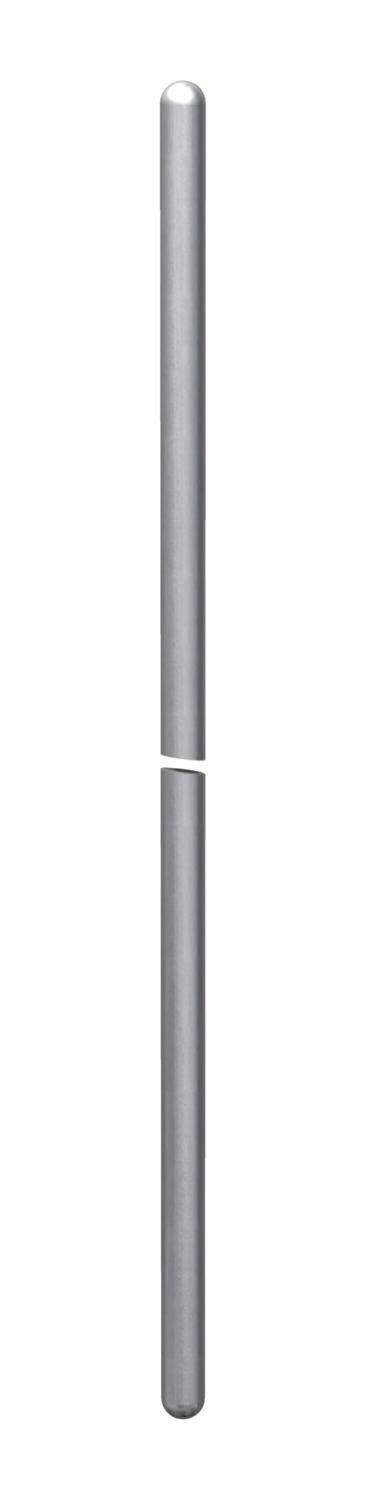

Air-termination/earth entry rod, rounded-off on both ends FT

Item no. / Types	5400155 / 101 A-1500

Length	1500 mm

Nominal size Ø	16 mm

Product description

Product description

• Full material Ø 16 mm
• Both ends rounded

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	6,8105 kg CO2e / 1 Piece
Connection	Round conductor
Dimension	1500mm
Dimension L	1500 mm
High voltage-resistant, insulated version	no

All types

All types

Types	Length	Nominal size Ø	Item no.
101 A-1500	1500 mm	16 mm	5400155

Accessories

Products	Types	Item no.
Cross-connector for Rd 8−10 x Rd 16	253 10X16	5312809

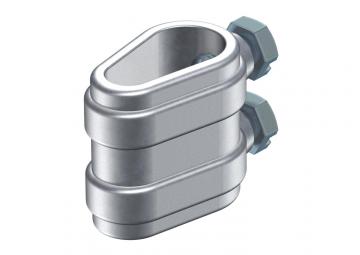

Separating piece, open	223 O DIN ZN	5335140

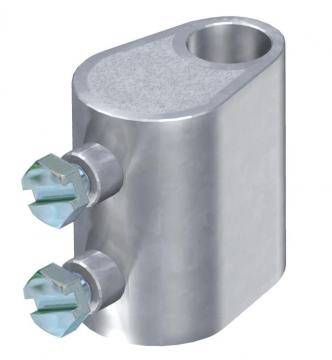

Separating piece, closed	223 DIN ZN	5335205

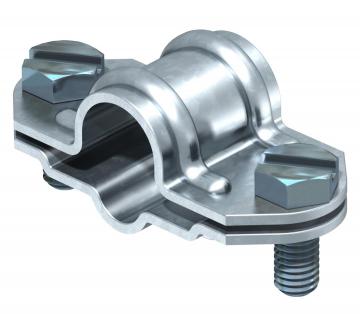

Universal separating piece FT	226 8-10	5336007
