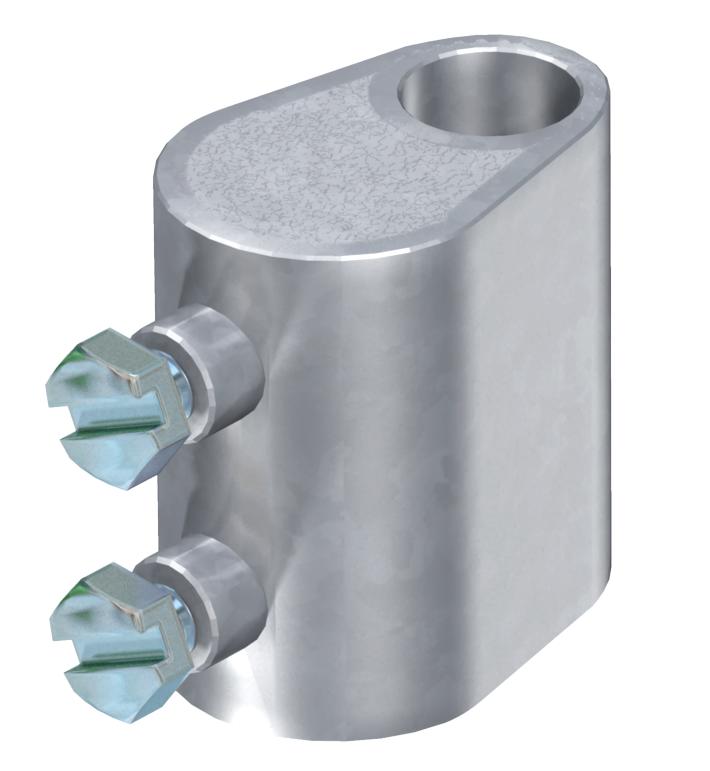

Separating piece, closed
Item no. 5335205 | EAN 4012195423614
- Product description
-

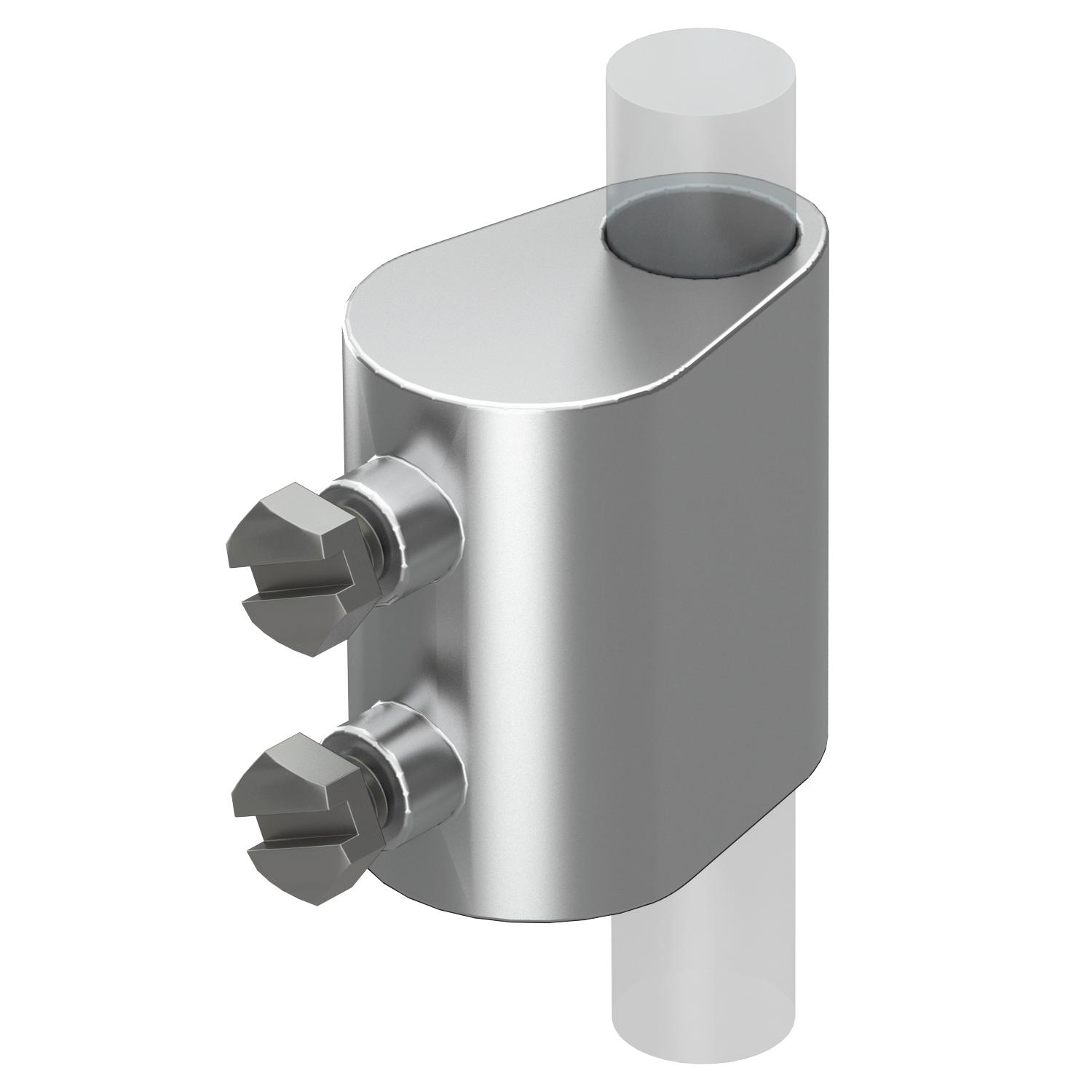

Product description• For fitting round conductors Rd 8-10 to ground insertion rods Rd 16
• Including 2 hexagonal bolts, high-grade stainless steel (V2A)
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data
Bimetal connector no CO2 Footprint (GWP) Cradle-to-Gate 0,606 kg CO2e / 1 Piece Dimension 8-10mmx16 Fit Rd 8-10/16 mm Intermediate plate no Material Die-cast zinc Suitable for connection Round conductor Rd 8-10 / Rd 16 Surface Electrogalvanized - All types
- Downloads
-
Data sheet 223 DIN ZN / 5335205 , 0.17MB , pdfEU declaration of conformity 223 DIN ZN / 5335205 , 0.06MB , pdfREACH Declaration of conformity 223 DIN ZN / 5335205 , 0.12MB , pdfRoHS Declaration of conformity 223 DIN ZN / 5335205 , 0.12MB , pdf
