Adjustable connector 110 FT
Item no. 7082436 | EAN 4012196230952
- Product description
-

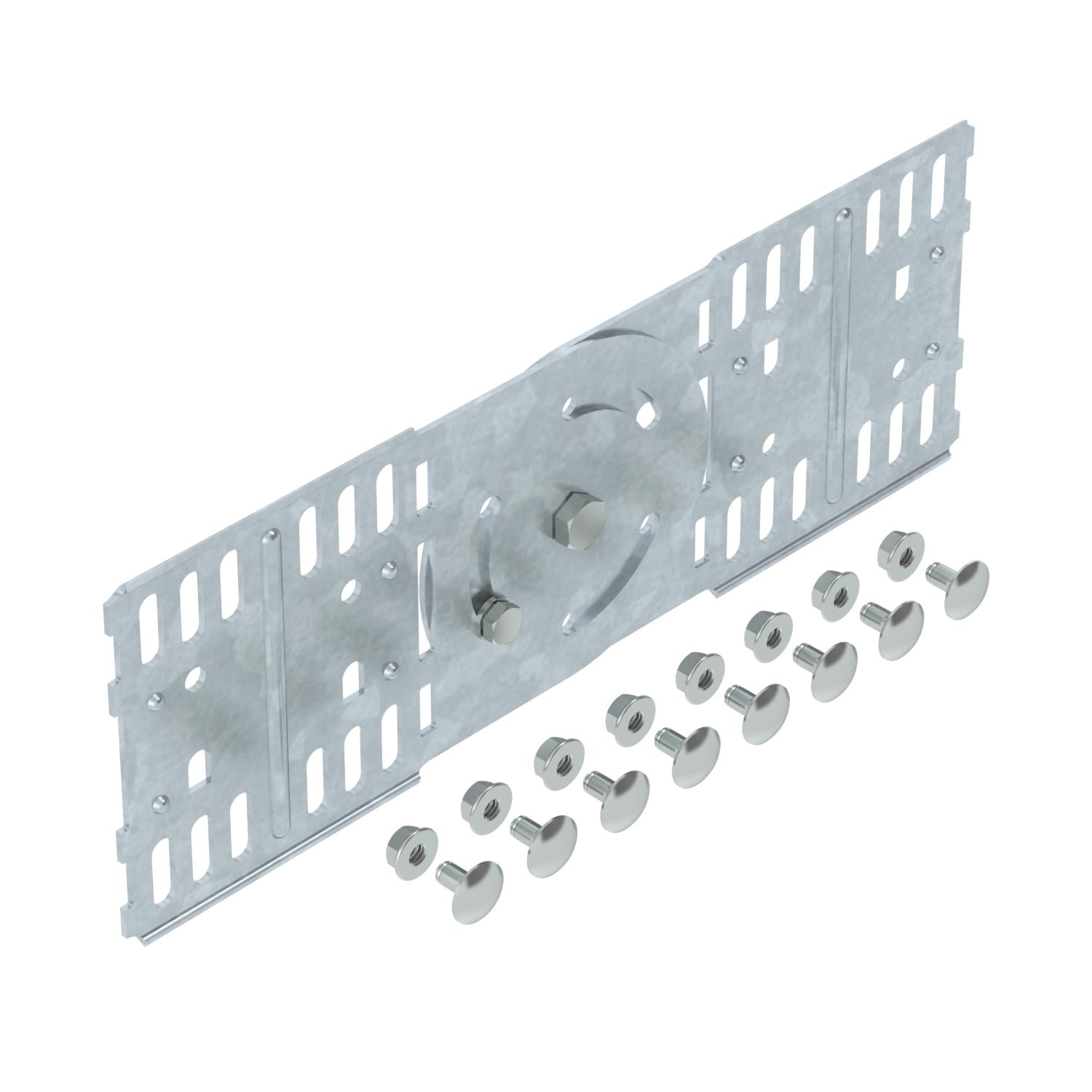

Product descriptionAdjustable connector for cable trays with a side height of 110 mm.
-
- Technical data
-
Technical data

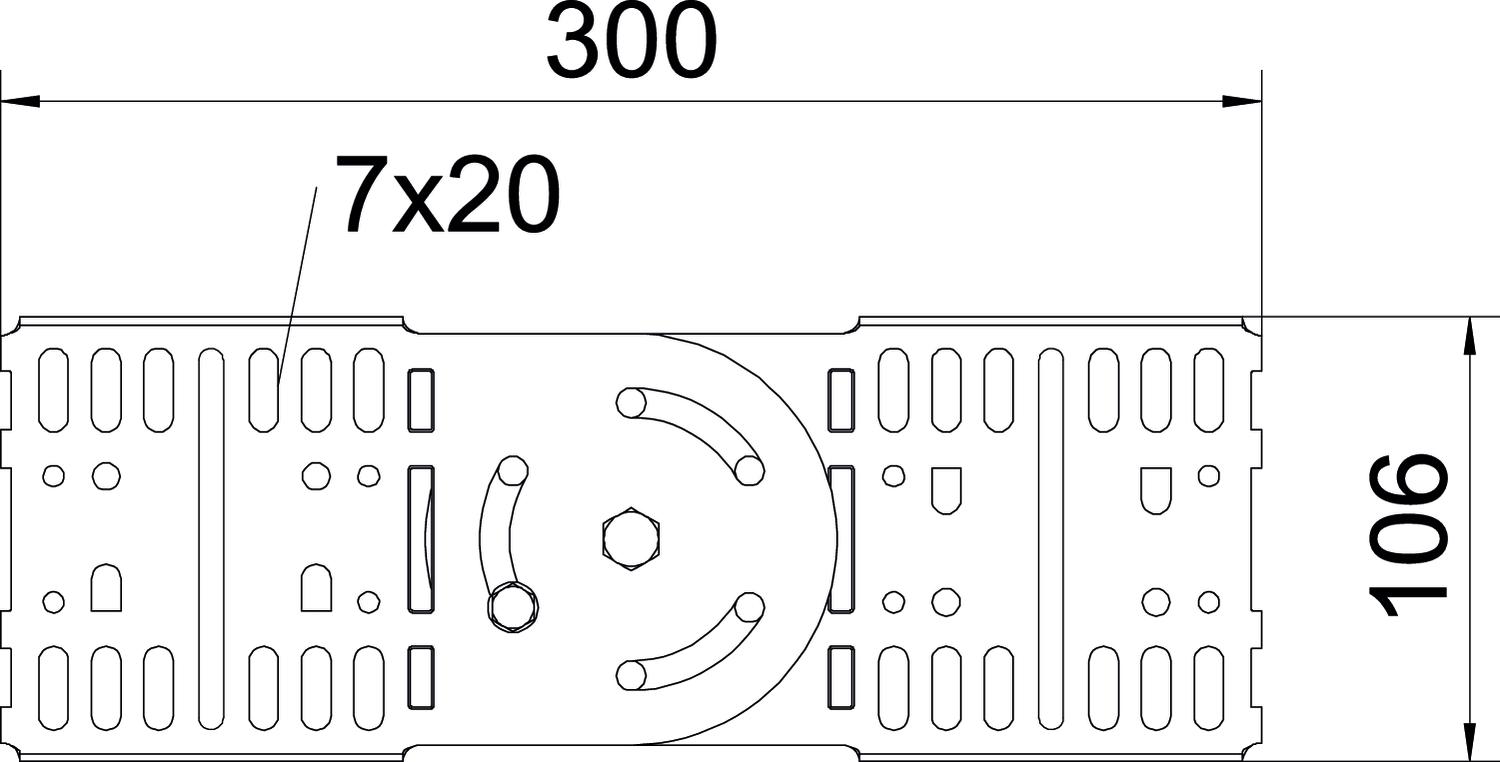

Adjustable connector, horizontal no Articulated connector, vertical yes CO2 Footprint (GWP) Cradle-to-Gate 1,6443 kg CO2e / 1 Piece Colour zinc Connection type Screw connector Dimension 110x300 Dimension 300 x 106 Height 4 in Height 110 mm Length 300 mm Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Wide-span version no Width 16 mm - All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 - Downloads
-
