Adjustable bend element 110 FT
Item no. 6225510 | EAN 4012196445097
- Product description
-

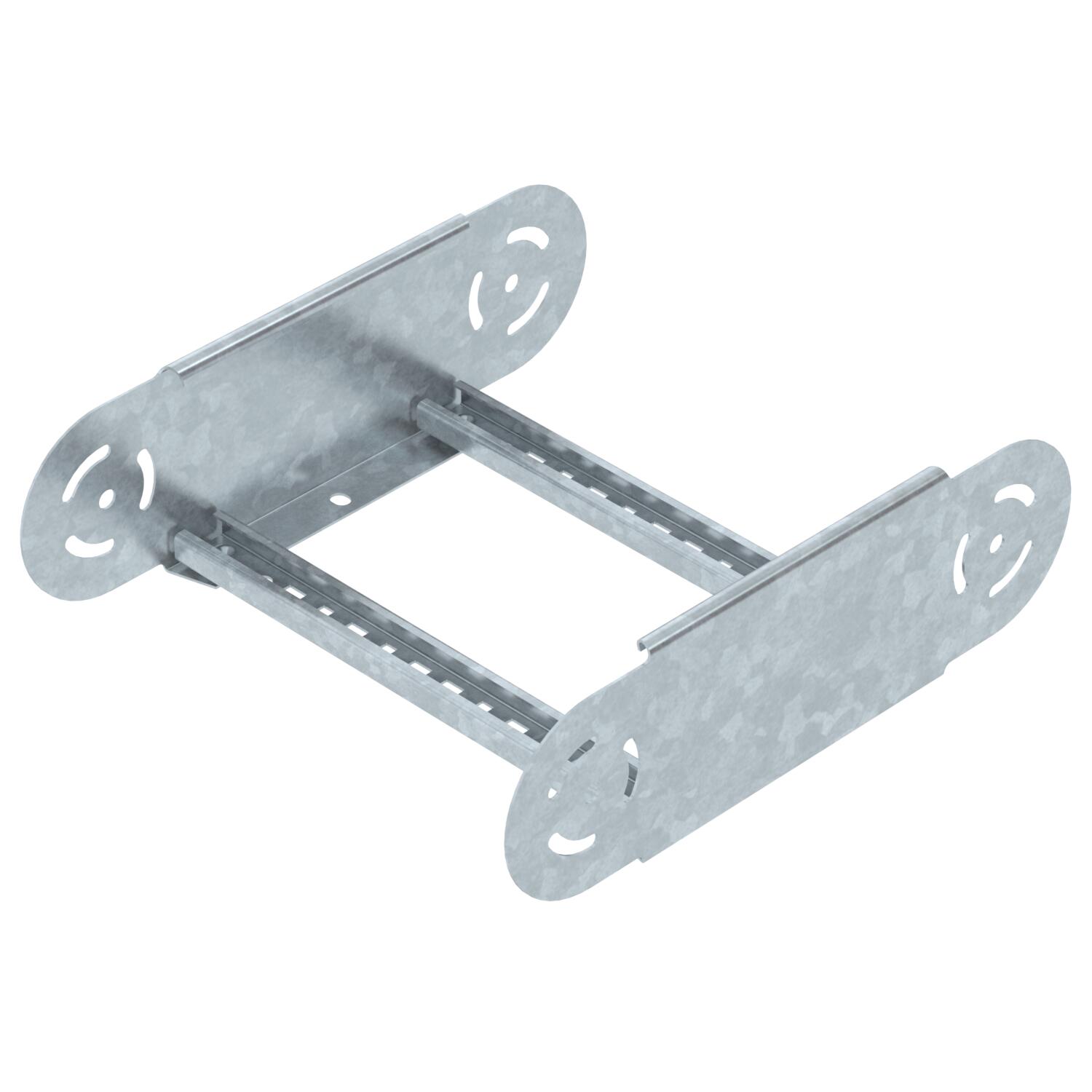

Product descriptionAdjustable bend element with welded rung for use in the cable ladder types with a side height of 110 mm.
-
- Technical data
-
Technical data

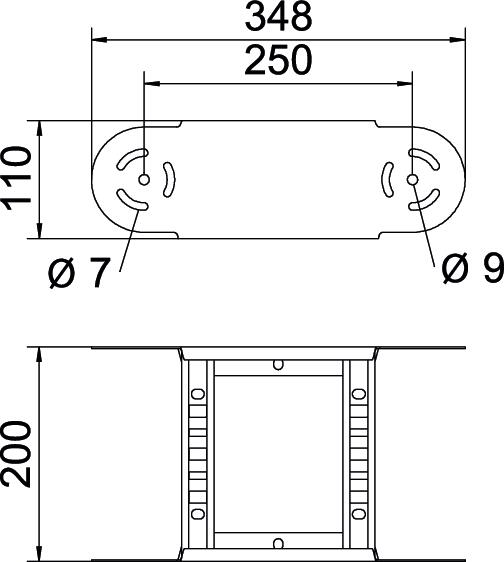

Bend (angle) Adjustable Change of direction Vertical, rising/falling Colour zinc Connector version Integrated connector Dimension 110x200 Dimension B 200 mm Dimension R 200 mm Height 110 mm Hinged yes Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no.
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122

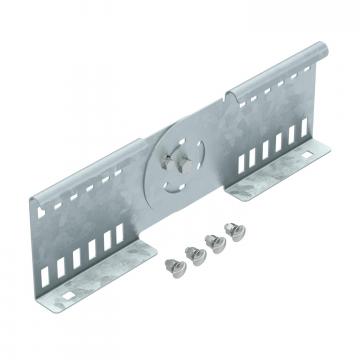

Adjustable connector FT
LGVG 110 FT 6216653 - Downloads
-
